Ford Bronco Wheel Drum Parking Brake & Tension Limiter Diagram (H9818-A)

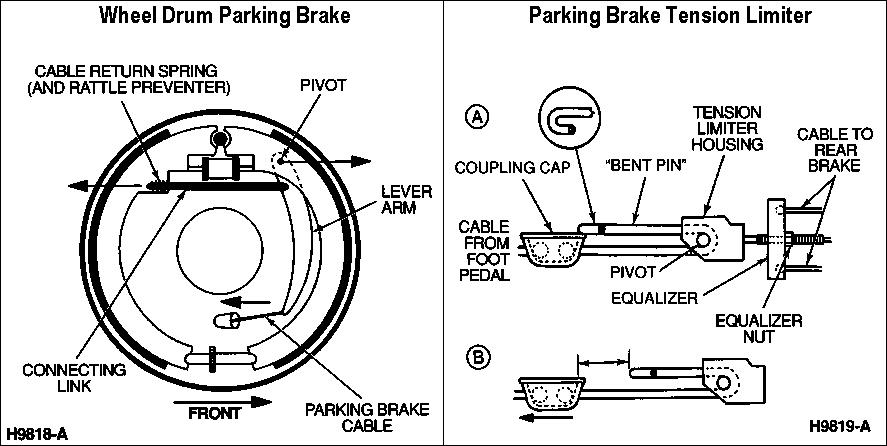

This document contains two labeled line-art illustrations of a parking brake system. The left panel, titled "Wheel Drum Parking Brake" (figure H9818-A), shows a rear drum brake assembly viewed with the drum removed, with callouts identifying the cable return spring (and rattle preventer), pivot, lever arm, connecting link, and parking brake cable, plus a directional arrow indicating the front of the vehicle. Arrows illustrate how the lever arm and connecting link spread the brake shoes when the parking brake cable is pulled. The right panel, titled "Parking Brake Tension Limiter" (figure H9819-A), shows two views (A and B) of the in-line tension limiter mechanism, labeling the coupling cap, "bent pin," tension limiter housing, pivot, equalizer, equalizer nut, the cable from the foot pedal, and the cable to the rear brake. View B shows the assembly in a different (actuated/relaxed) position with a dimension arrow. A reader can learn the names and locations of parking brake actuation components at the wheel and how the tension limiter/equalizer connects the pedal cable to the rear brake cables. The document itself carries no year, make, or model designation, only Ford-style figure numbers.
