What are the torque specs for 1994 Bronco body mount bolts?

The front bolt (387165-S100) is 68-96 N-m (50-71 Ft-Lb); the 389838-S100 bolts at Views W, X, and Y are 68-92 N-m (50-68 Ft-Lb); the View Y bracket bolt (N605801-S2) is 41-54 N-m (30-40 Ft-Lb); the View Z nut (N621946-S2) is 48-68 N-m (35-50 Ft-Lb) and its bolt (N800442-S2) is 61-102 N-m (45-75 Ft-Lb).

Should you lubricate Bronco body mounts during installation?

No. The diagram states: 'No lubricants of any kind are to be used for body mount installation.'

What are the part numbers for the body mount absorbers (bushings)?

Upper absorber 1000192 and lower absorber 1000155 at most positions; View Z uses lower absorber 2500155, and View U shows a shim (1000145) at the rear mount.

How many body mount locations does a 1994 Bronco have?

Six mount positions are shown per side, identified as Views U, V, W, X, Y, and Z from front to rear of the frame.

What brackets are used at the View Y body mount?

Bracket 5077 for the right-hand side and 5078 for the left-hand side, attached with rivets and a bolt (N605801-S2) torqued to 41-54 N-m (30-40 Ft-Lb).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254782

1994 Ford Bronco Body Mounts Diagram - Part Numbers & Torque Specs

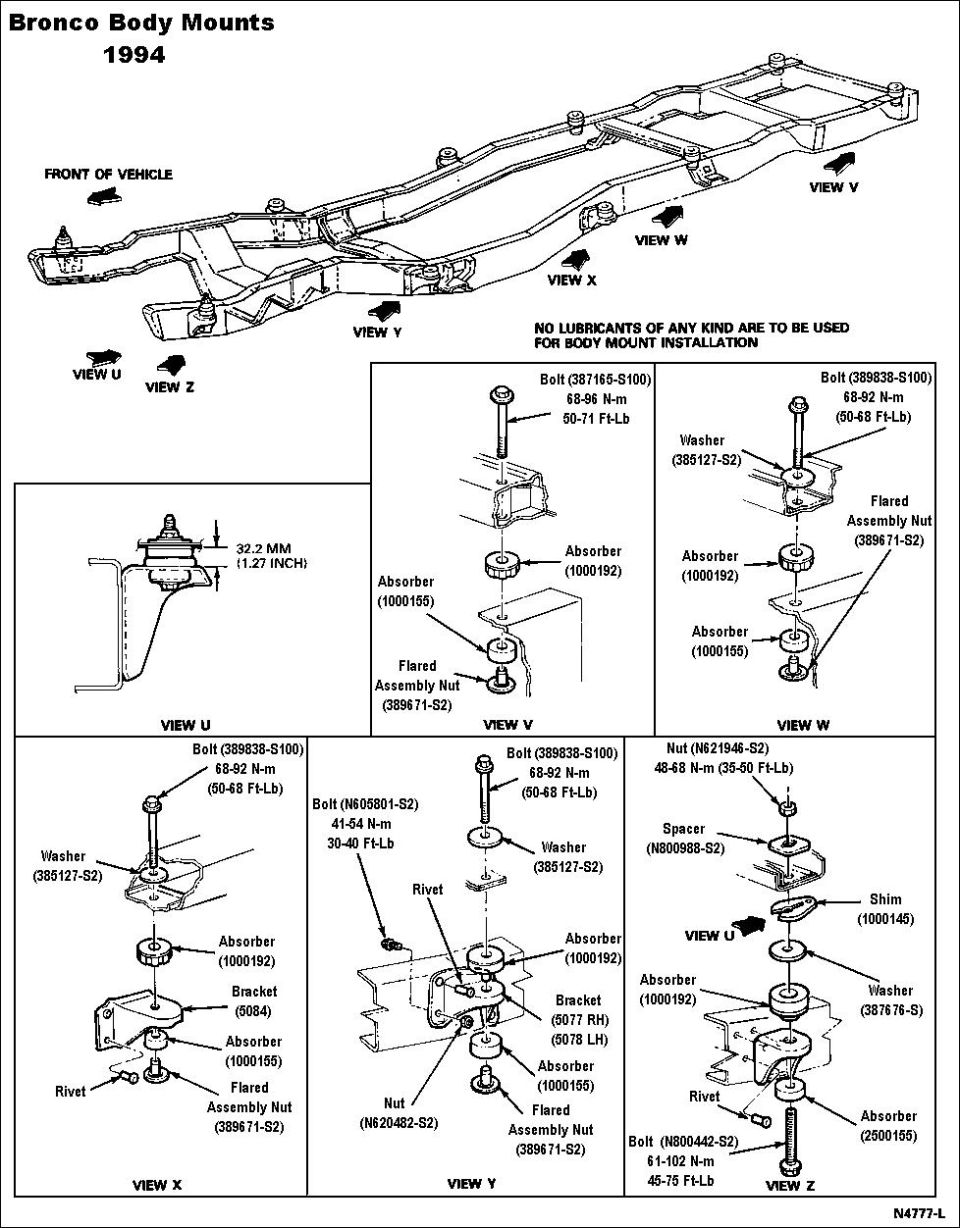

1994 Bronco body mount exploded diagrams with part numbers and torque specs

‹ ›

Exploded views of 1994 Bronco body mounts at multiple frame locations with part numbers and bolt torque values.

AI caption October 2005 · Photo 100 of 277

This document is an exploded parts diagram showing the body mount locations and hardware for a 1994 Ford Bronco. A top overview drawing of the frame identifies six mount positions labeled Views U through Z, from the front of the vehicle to the rear. Each view is then detailed with an exploded assembly drawing listing the bolts, washers, upper and lower absorbers (rubber body mount bushings), brackets, spacers, shims, nuts, and flared assembly nuts with their Ford part numbers and torque specifications. Torque values include 68-96 N-m (50-71 Ft-Lb) for the View V bolt, 68-92 N-m (50-68 Ft-Lb) for the 389838-S100 bolts, 41-54 N-m (30-40 Ft-Lb) for the View Y bracket bolt, 48-68 N-m (35-50 Ft-Lb) for the View Z nut, and 61-102 N-m (45-75 Ft-Lb) for the View Z lower bolt. View U shows a mount height dimension of 32.2 mm (1.27 inch). A prominent note states that no lubricants of any kind are to be used for body mount installation. This diagram is useful for anyone replacing worn body mount bushings or reassembling the body to the frame with correct parts and torque values.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the torque specs for 1994 Bronco body mount bolts?: The front bolt (387165-S100) is 68-96 N-m (50-71 Ft-Lb); the 389838-S100 bolts at Views W, X, and Y are 68-92 N-m (50-68 Ft-Lb); the View Y bracket bolt (N605801-S2) is 41-54 N-m (30-40 Ft-Lb); the View Z nut (N621946-S2) is 48-68 N-m (35-50 Ft-Lb) and its bolt (N800442-S2) is 61-102 N-m (45-75 Ft-Lb).
Should you lubricate Bronco body mounts during installation?: No. The diagram states: 'No lubricants of any kind are to be used for body mount installation.'
What are the part numbers for the body mount absorbers (bushings)?: Upper absorber 1000192 and lower absorber 1000155 at most positions; View Z uses lower absorber 2500155, and View U shows a shim (1000145) at the rear mount.
How many body mount locations does a 1994 Bronco have?: Six mount positions are shown per side, identified as Views U, V, W, X, Y, and Z from front to rear of the frame.
What brackets are used at the View Y body mount?: Bracket 5077 for the right-hand side and 5078 for the left-hand side, attached with rivets and a bolt (N605801-S2) torqued to 41-54 N-m (30-40 Ft-Lb).
