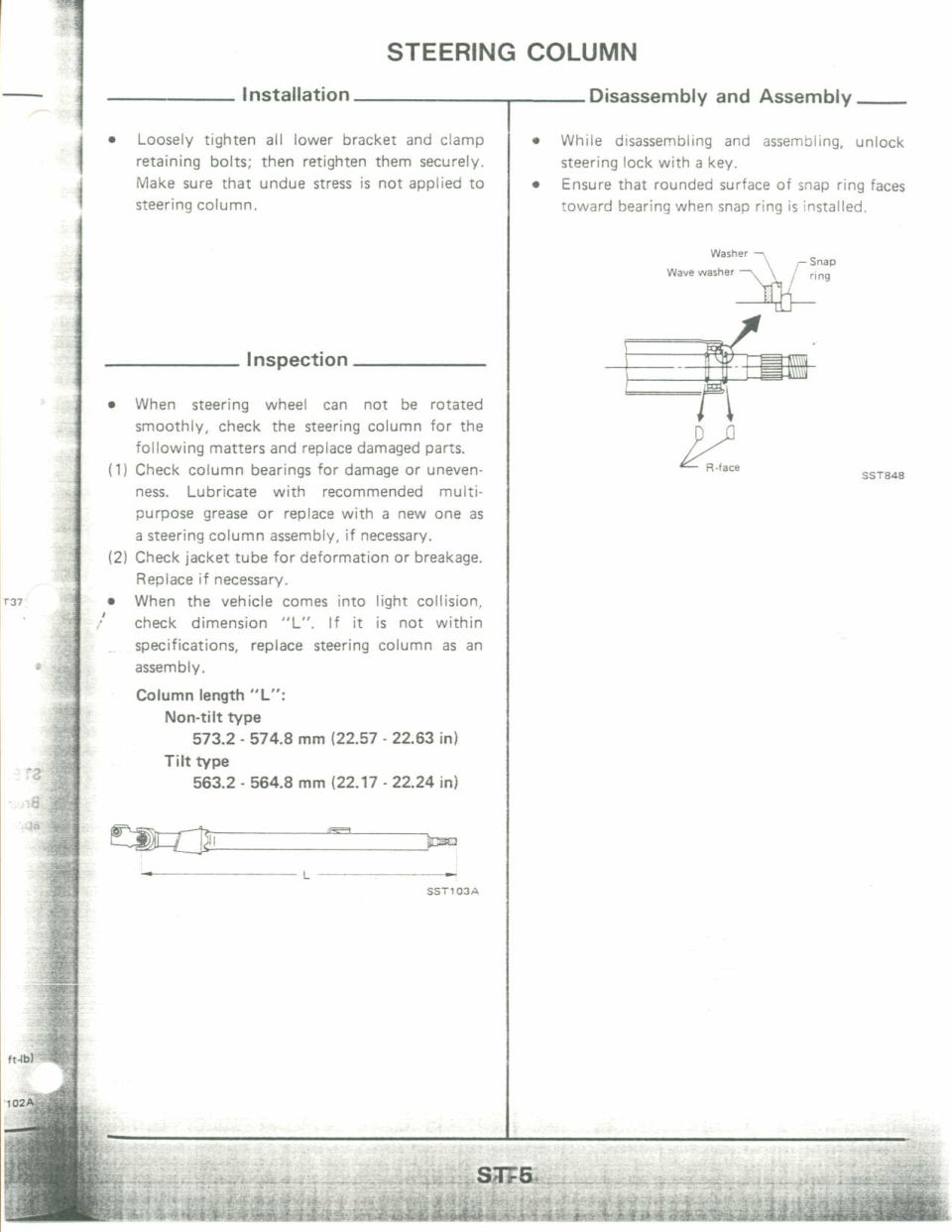

Service manual page ST-5 covering steering column installation,…

r37 4 STEERING COLUMN Installation c Loosely tighten all lower bracket and clamp retaining bolts; then retighten them securely. Make sure that undue stress is not applied to steering column. Inspection 0 When steering wheel can not be rotated smoothly, check the steering column for the following matters and replace damaged parts. (1) Check column bearings for damage or uneven ness. Lubricate with recommended multi- purpose grease or replace with a new one as a steering column assembly, if necessary. (2) Check jacket tube for deformation or breakage. Replace if necessary. 0 When the vehicle comes into light collision, check dimension "L. if it is not within specifications, replace steering column as an assembly. Column length "L: Non-tilt type 573.2 - 574.8 mm (22.57 - 22.631nl Tilt type 563.2 564.8 mm (22.17 - 22.24 in) ssTtoen Disassembly and Assembly While disassembling and assembling, unlock steering lock with a key. Ensure that rounded surface of snap ring faces toward bearing when snap ring is installed. Washer ,- Sna Wave washer nng l _ . g... sstaae
