What is the torque spec for the tie-rod lock nut on the R22T steering gear?

37 - 46 N·m (3.8 - 4.7 kg-m, 27 - 34 ft-lb).

What torque is specified for the tie-rod inner socket?

78 - 98 N·m (8.0 - 10.0 kg-m, 58 - 72 ft-lb).

Which parts must always be replaced when the steering gear is disassembled?

Parts marked with a star: the rack bushing, oil seal, and boot clamp.

What should be done before disassembling the steering gear?

Measure pinion rotating torque as a reference, and use soft jaws when holding the steering gear housing since it is made of aluminum.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/293991

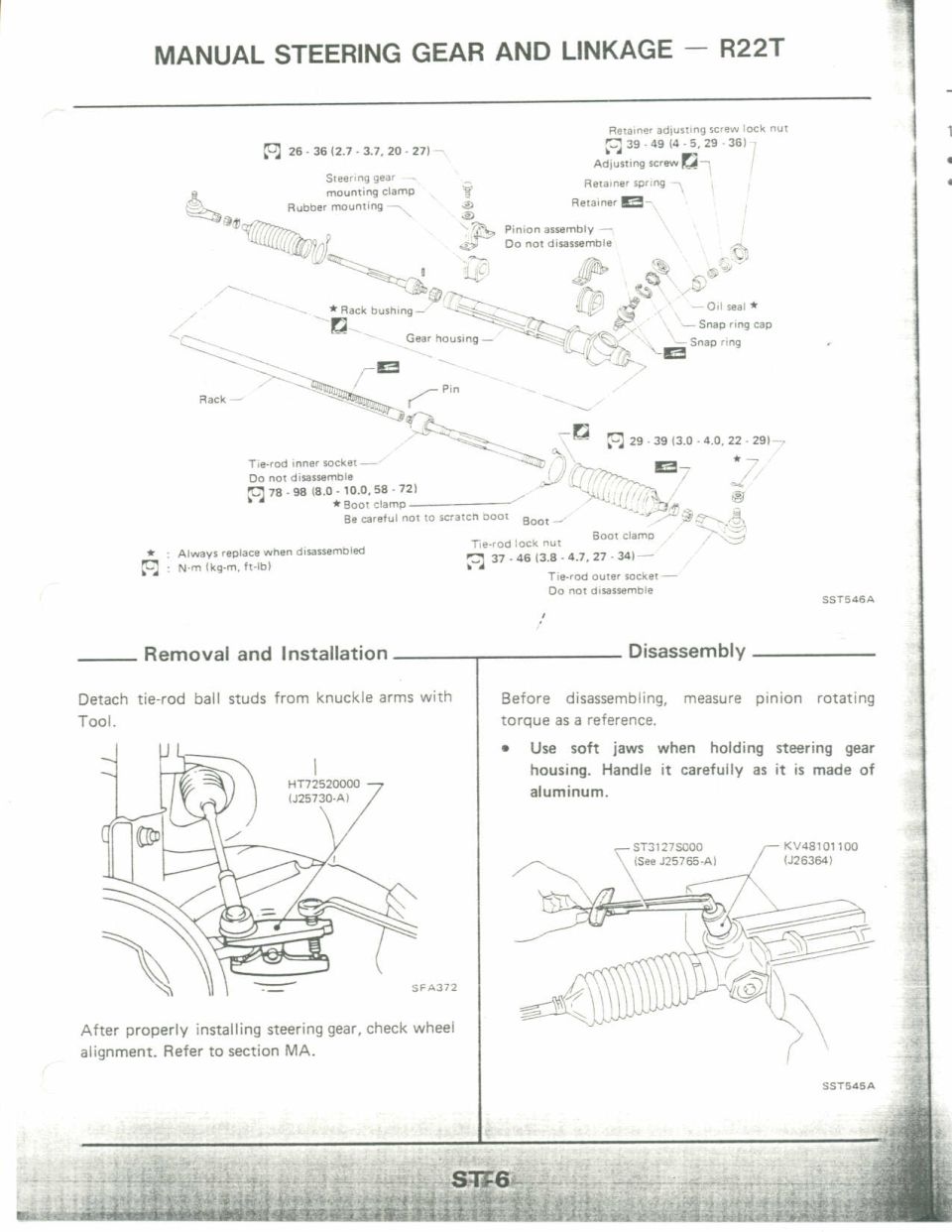

Nissan R22T Manual Steering Gear & Linkage Exploded Diagram, Torque Specs - ST-6

Exploded view of manual steering gear and linkage R22T with rack and tie rods

‹ ›

Exploded parts diagram of manual steering gear and linkage R22T showing rack, pinion, tie rods, boots and clamps with removal and disassembly notes.

AI caption February 2006 · Photo 306 of 412

This scanned factory service manual page (ST-6) covers the R22T manual steering gear and linkage. The top of the page is an exploded parts diagram of the rack-and-pinion steering gear showing components including the steering gear mounting clamp, rubber mounting, pinion assembly (marked do-not-disassemble), rack bushing, gear housing, rack, pin, retainer, retainer spring, adjusting screw and its lock nut, oil seal, snap ring cap, snap ring, tie-rod inner and outer sockets (do-not-disassemble), boots, boot clamps and tie-rod lock nut. Torque specifications are given in N·m (kg-m, ft-lb): mounting clamp bolts 26-36 (2.7-3.7, 20-27); retainer adjusting screw lock nut 39-49 (4-5, 29-36); tie-rod inner socket 78-98 (8.0-10.0, 58-72); tie-rod outer socket 29-39 (3.0-4.0, 22-29); tie-rod lock nut 37-46 (3.8-4.7, 27-34). Starred items must always be replaced when disassembled. The Removal and Installation section instructs detaching tie-rod ball studs from knuckle arms using tool HT72520000 (J25730-A) and checking wheel alignment (section MA) after installation. The Disassembly section instructs measuring pinion rotating torque before disassembly (tools ST3127S000/J25765-A and KV48101100/J26364) and using soft jaws because the aluminum housing is fragile.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the tie-rod lock nut on the R22T steering gear?: 37 - 46 N·m (3.8 - 4.7 kg-m, 27 - 34 ft-lb).
What torque is specified for the tie-rod inner socket?: 78 - 98 N·m (8.0 - 10.0 kg-m, 58 - 72 ft-lb).
Which parts must always be replaced when the steering gear is disassembled?: Parts marked with a star: the rack bushing, oil seal, and boot clamp.
What tool is used to detach the tie-rod ball studs from the knuckle arms?: Tool HT72520000 (J25730-A).
What should be done before disassembling the steering gear?: Measure pinion rotating torque as a reference, and use soft jaws when holding the steering gear housing since it is made of aluminum.
