What trim components does this page cover?

It covers the Body Side & Luggage Room Trim for both the 3-door Hatchback and 5-door Hatchback, shown as exploded interior trim diagrams.

What fastener callout codes are shown in the diagrams?

The diagrams use clip/fastener callouts C101, C102, CS102, and C105, plus inset details showing a metal clamp (3-door) and a metal clip (5-door).

What does the cross-hatched pattern in the diagrams mean?

Per the legend, the cross-hatched areas indicate double-faced adhesive tape.

What precautions does the manual give for removing trim?

When removing a clip or fastener, refer to the CLIP & FASTENER section, and when handling trim or molding, do not use excessive force and take care not to damage them.

How are trim pieces secured besides screws and clips?

Some trim areas are attached with double-faced adhesive tape, and metal clamps/clips are used as shown in the inset detail drawings.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/294010

Nissan Micra Body Side & Luggage Room Trim Diagram - 3 & 5 Door Hatchback BF-11

Exploded view of body side and luggage-room interior trim for 3- and 5-door

‹ ›

Exploded parts drawing of body-side and luggage-room interior trim with clip locations for 3-door and 5-door hatchbacks.

AI caption February 2006 · Photo 324 of 412

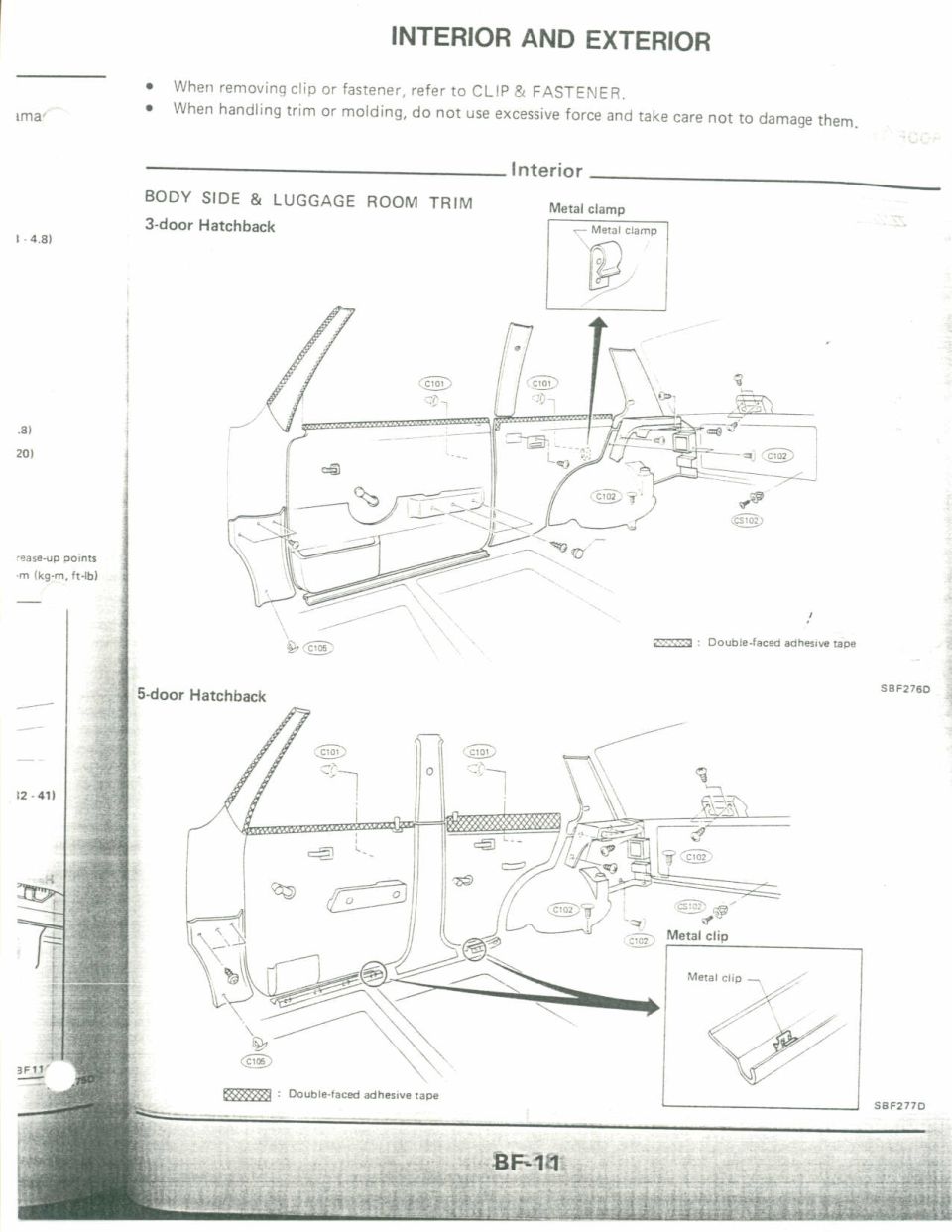

This is page BF-11 from a factory service manual, covering the Body (BF) section under the heading "INTERIOR AND EXTERIOR – Interior." The page documents removal/installation of the BODY SIDE & LUGGAGE ROOM TRIM for two body styles: a 3-door Hatchback and a 5-door Hatchback. Each body style is shown as an exploded parts diagram of the interior side trim panels, pillar trims, sill/scuff plates, and luggage-room trim, with clip/fastener callouts labeled C101, C102, CS102, and C105. Inset detail drawings show a "Metal clamp" (3-door) and a "Metal clip" (5-door) used to secure trim pieces. Cross-hatched areas in both diagrams are keyed to a legend indicating "Double-faced adhesive tape." Two cautions appear at the top: refer to the CLIP & FASTENER section when removing clips or fasteners, and avoid excessive force when handling trim or molding to prevent damage. Diagram reference codes SBF276D and SBF277D appear beside the illustrations. A reader can learn the locations and types of fasteners securing interior side and luggage-area trim, where adhesive tape is used, and how the metal clamps/clips engage the trim pieces on hatchback body styles.
