Nissan Micra Starter Exploded Diagram M2T37081 (M/T) - Torque Specs, EL-16

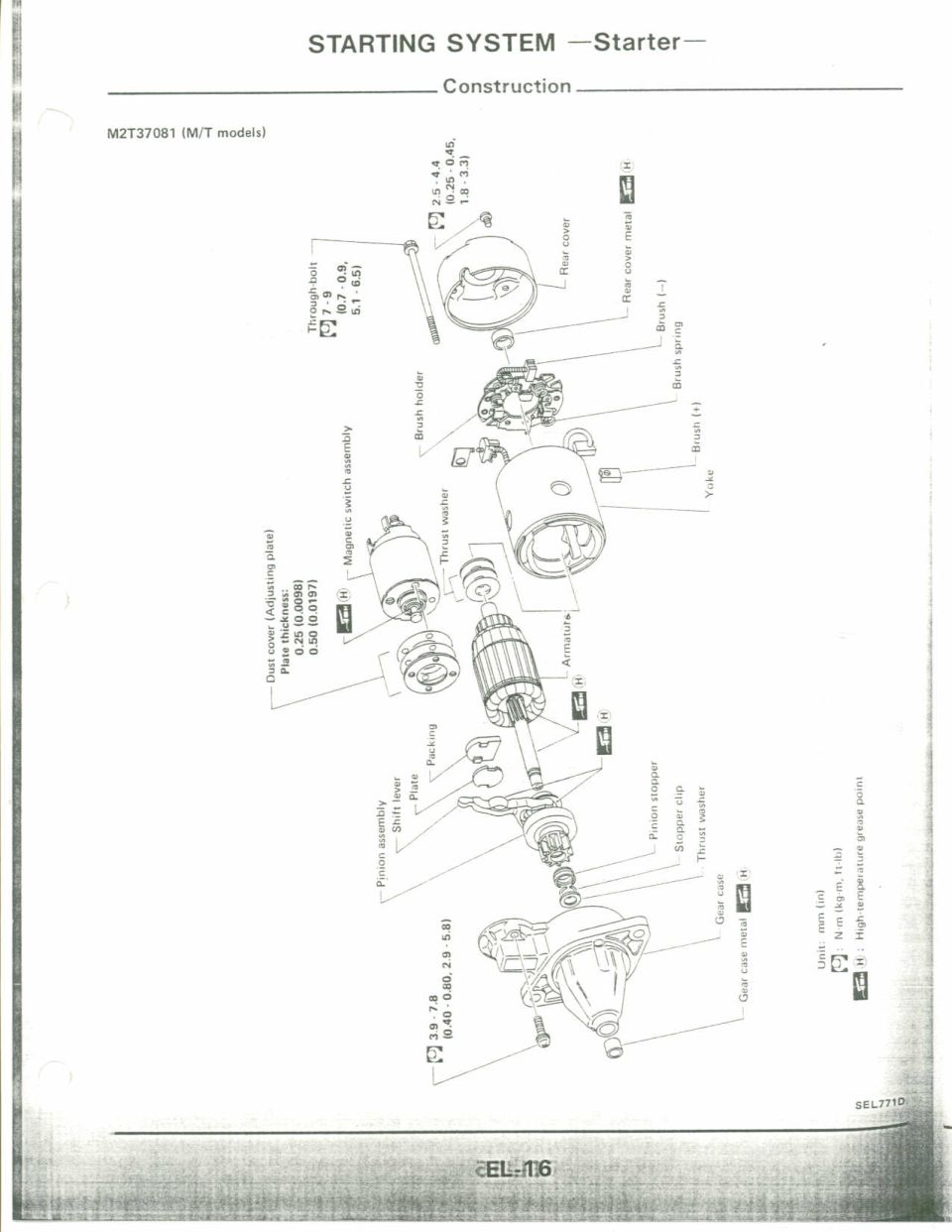

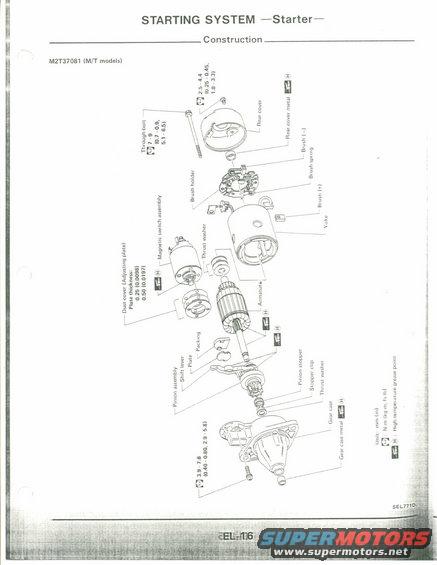

This is a scanned factory service manual page from the Electrical (EL) section, page EL-16, covering the STARTING SYSTEM — Starter — Construction. It presents an exploded parts diagram of the Mitsubishi-type starter motor M2T37081, applicable to manual transmission (M/T) models. Every component of the starter is labeled: through-bolt, rear cover, rear cover metal (bushing), brushes (positive and negative), brush spring, brush holder, yoke, magnetic switch assembly, thrust washers, dust cover/adjusting plate (available in 0.25 mm / 0.0098 in and 0.50 mm / 0.0197 in thicknesses), armature, packing, plate, shift lever, pinion assembly, pinion stopper, stopper clip, gear case, and gear case metal. Torque specifications are given in N·m (kg-m, ft-lb): through-bolts 7-9 N·m (0.7-0.9 kg-m, 5.1-6.5 ft-lb); rear cover screws 2.5-4.4 N·m (0.25-0.45 kg-m, 1.8-3.3 ft-lb); gear case/mounting screws 3.9-7.8 N·m (0.40-0.80 kg-m, 2.9-5.8 ft-lb). High-temperature grease points are marked with an (H) symbol at bushings, the armature shaft, and pinion area. Illustration reference SEL771D. Useful for anyone disassembling or rebuilding this starter.
