Nissan Micra Seat Assembly Exploded Diagram & Torque Specs (BF-10)

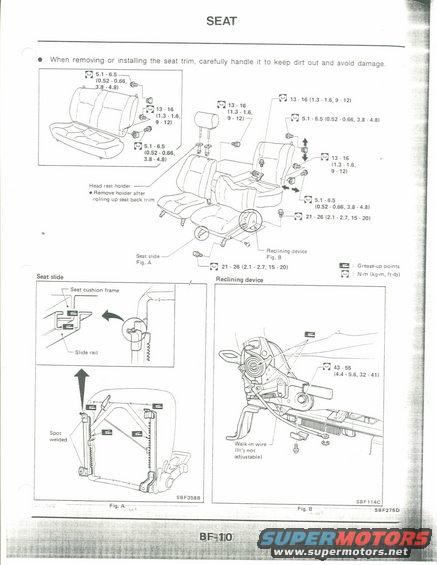

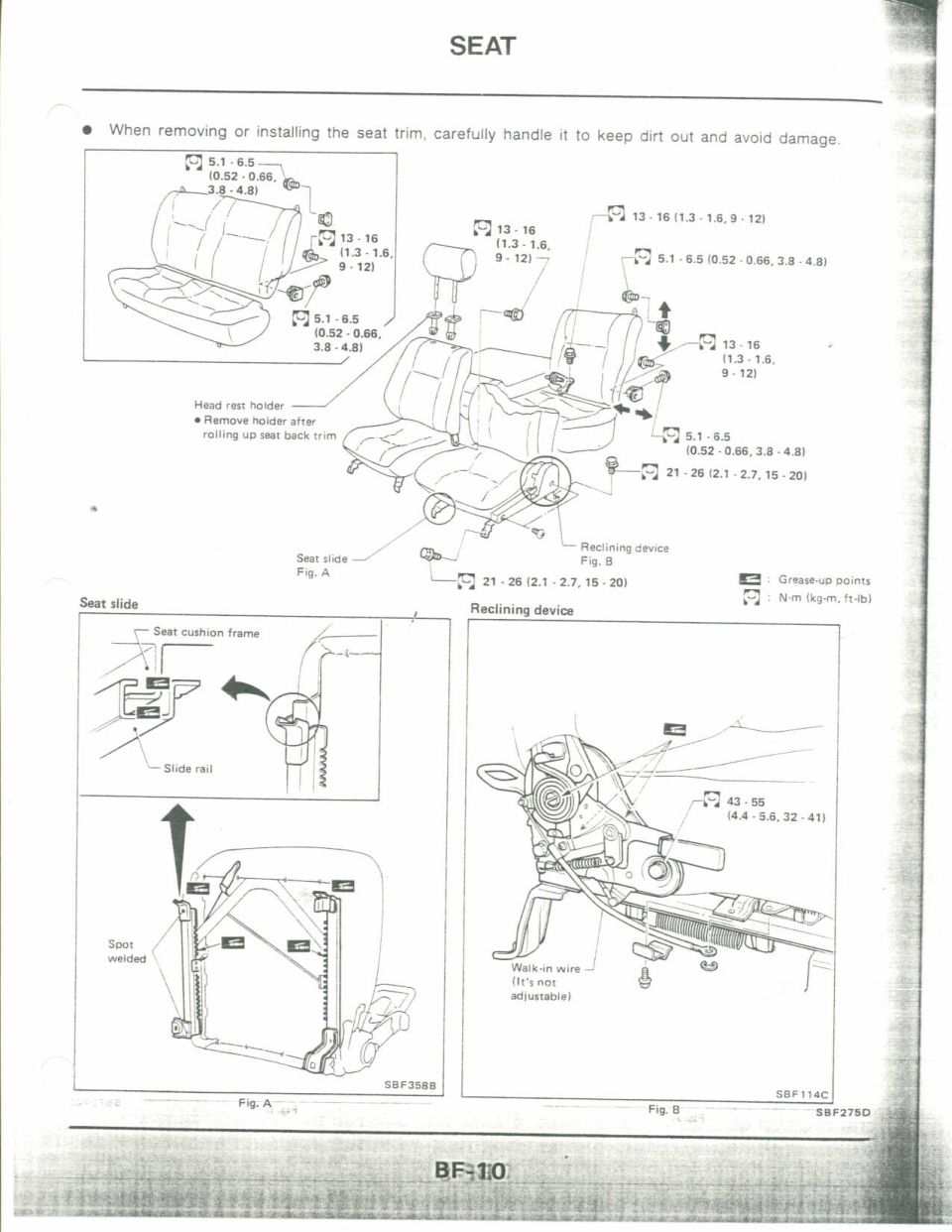

This is page BF-10 from a Nissan factory service manual (Body/Frame section) covering seat removal and installation. It contains an exploded parts diagram of the front seats and rear bench seat, with torque specifications given in N·m (kg-m, ft-lb) for all seat mounting fasteners: head rest and trim screws at 5.1-6.5 N·m (0.52-0.66 kg-m, 3.8-4.8 ft-lb), seat back and hinge bolts at 13-16 N·m (1.3-1.6 kg-m, 9-12 ft-lb), seat-to-floor anchor bolts at 21-26 N·m (2.1-2.7 kg-m, 15-20 ft-lb), and the reclining device bolt at 43-55 N·m (4.4-5.6 kg-m, 32-41 ft-lb). A caution note advises careful handling of seat trim to keep dirt out and avoid damage, and to remove the head rest holder after rolling up the seat back trim. Two detail figures are included: Fig. A shows the seat slide mechanism (seat cushion frame, slide rail, spot-welded points) and Fig. B shows the reclining device with its non-adjustable walk-in wire. Grease-up points are marked throughout with a legend symbol. Illustration reference codes are SBF358B, SBF114C, and SBF275D.
