Nissan Micra Starter Exploded Diagram M2T23685 A/T - Torque Specs (EL-17)

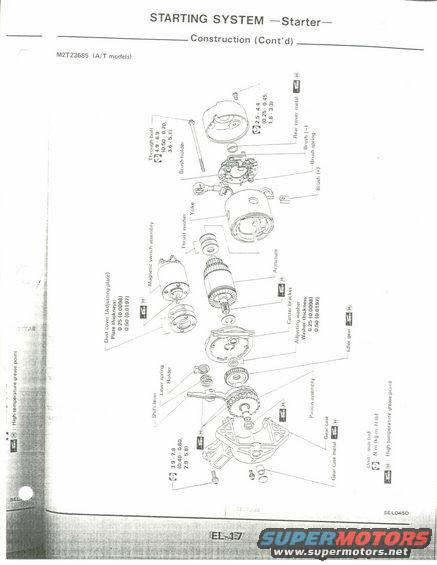

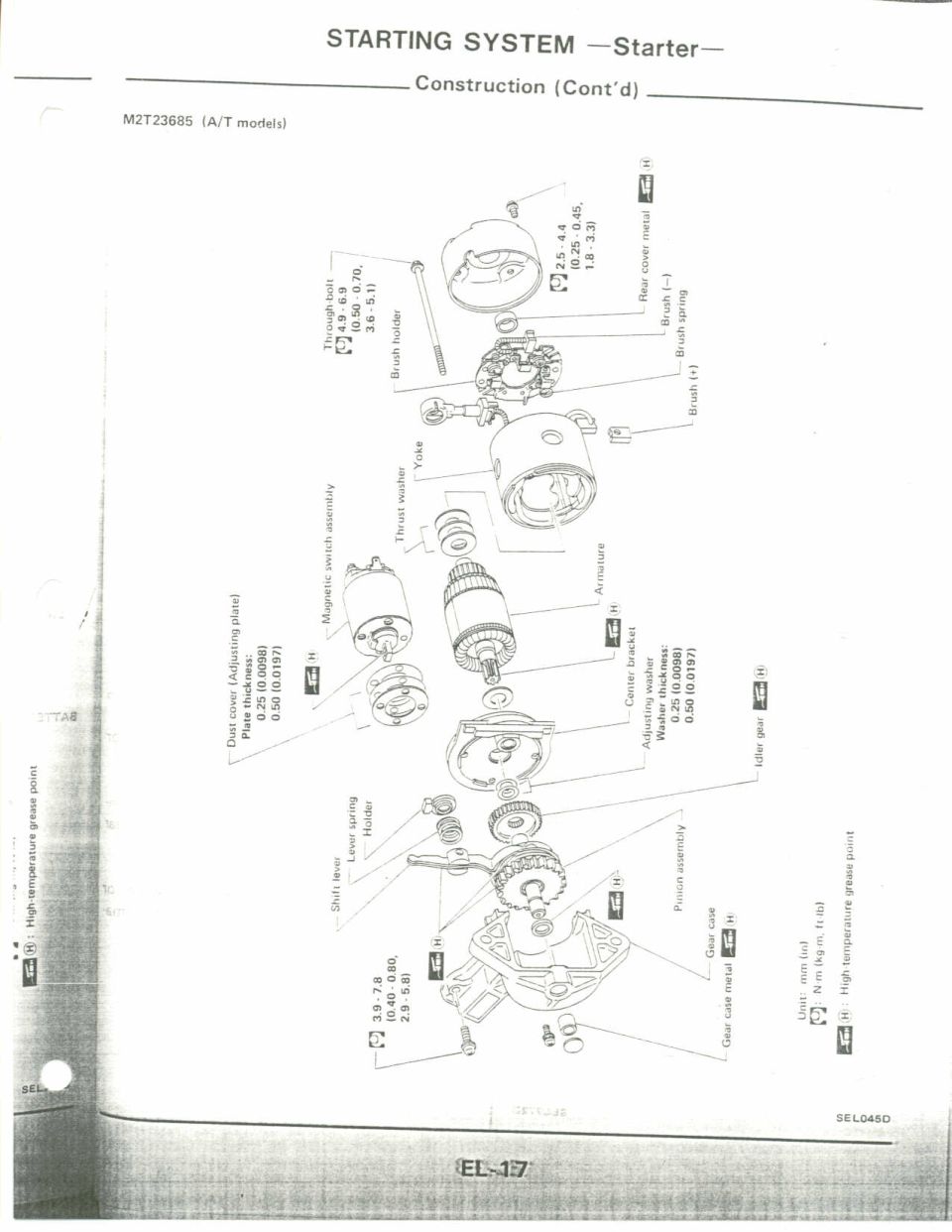

This document is page EL-17 from a Nissan service manual's Starting System (Starter) section, showing the construction (exploded parts view) of the Mitsubishi-type M2T23685 starter motor used on A/T (automatic transmission) models. The exploded diagram identifies every major component of the reduction-gear starter: through-bolts, brush holder, rear cover metal, brushes (+ and −), brush springs, yoke, thrust washer, armature, magnetic switch assembly, dust cover/adjusting plate, center bracket, adjusting washer, idler gear, lever spring, holder, shift lever, pinion assembly, gear case, and gear case metal. Torque specifications are given for three fasteners: through-bolts 4.9-6.9 N·m (0.50-0.70 kg-m, 3.6-5.1 ft-lb), rear cover screws 2.5-4.4 N·m (0.25-0.45 kg-m, 1.8-3.3 ft-lb), and gear case bolts 3.9-7.8 N·m (0.40-0.80 kg-m, 2.9-5.8 ft-lb). Selective thicknesses are listed for the adjusting plate and adjusting washer: 0.25 mm (0.0098 in) and 0.50 mm (0.0197 in). Points requiring high-temperature grease are marked with an [H] symbol (rear cover metal, armature, idler gear, pinion assembly, gear case metal). Units are mm (in). Figure reference SEL045D.
