Suzuki ECM Wiring Diagram Pg 3 - Fuel Pump Relay, TCC Relay, MAF, Stop Light Sw

Engine and transmission control wiring diagram with fuel pump relay, MAF sensor and relays

‹ ›

Factory wiring diagram linking the ECM and transmission control module to the fuel pump relay, main relay, MAF sensor, TCC relay and oil pressure switch.

AI caption August 2006 · Photo 21 of 86

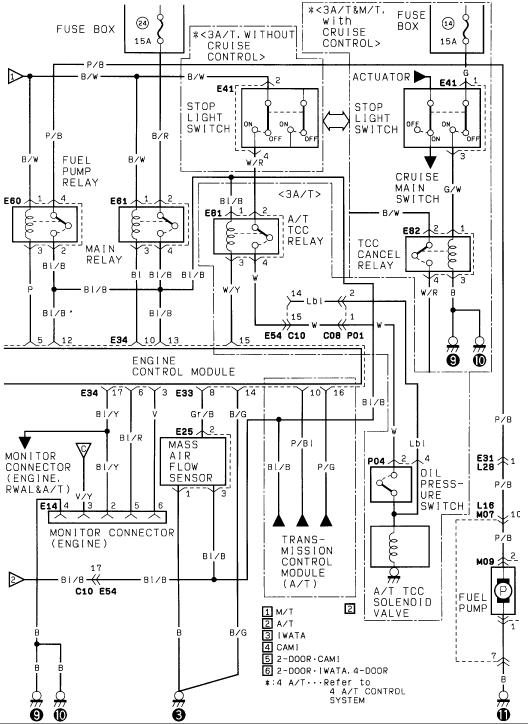

This is one page (ECM3) of a multi-page Engine Control Module (ECM) wiring diagram set. It shows the ECM's connections (connectors E34 and E33 with numbered pins) to related circuits: the fuel pump relay (E60), main relay (E61), A/T TCC relay (E81, applicable to 3-speed automatic transmissions), TCC cancel relay (E82), stop light switch (E41, shown in two variants — with and without cruise control), cruise main switch/actuator, mass air flow sensor (E25), oil pressure switch (P04), A/T TCC solenoid valve, monitor connectors (E14, for engine/RWAL/A&T diagnostics), the transmission control module (A/T), and the fuel pump (M09). Two 15A fuses feed the circuits from the fuse box (positions 24 and 14). Wire colors are labeled throughout (e.g., B/W, P/B, Bl/B, W/R, G/W, Lbl, Gr/B, P/Bl, P/G, Y/Y, W/Y, B/G, Bl/R). A footnote legend distinguishes M/T vs A/T applications and IWATA vs CAMI production plants, plus 2-door/4-door variations, and a note refers readers to the separate 4 A/T control system diagram for 4-speed automatics. A reader can trace power, ground, and signal paths between the ECM and fuel/transmission/cruise-related components.
