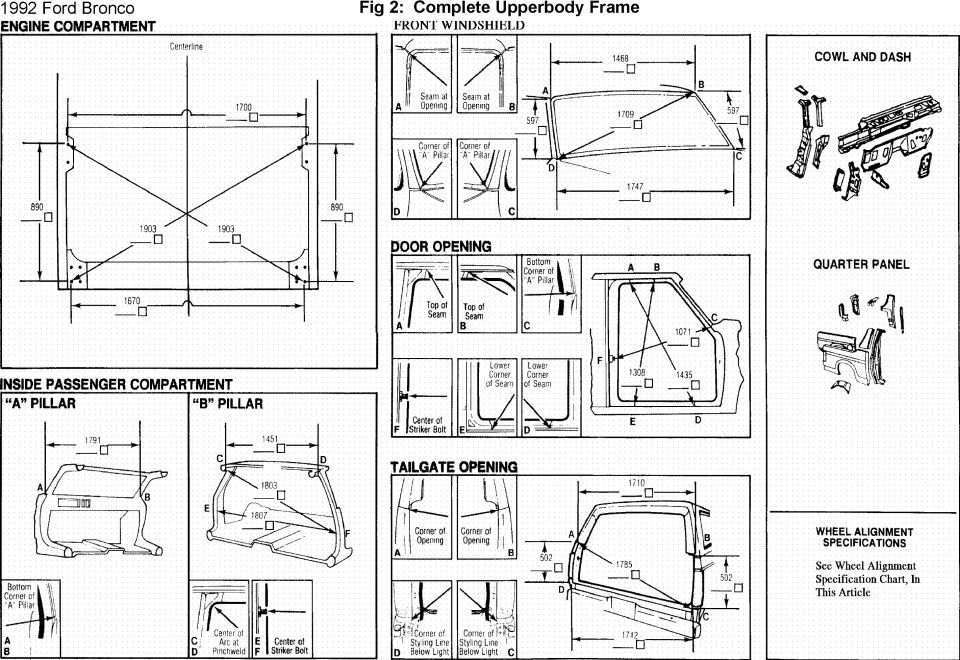

1992 Ford Bronco complete upperbody frame dimension diagram

Body Dimensions in mm
IF THE IMAGE IS TOO SMALL, click it.

Check the door opening dimensions FIRST to make sure the body isn't bent.

For door alignment, see the NEXT dozen pics & their captions, and this post:
http://www.fourdoorbronco.com/board/showthread.php?6884-Door-Alignment
