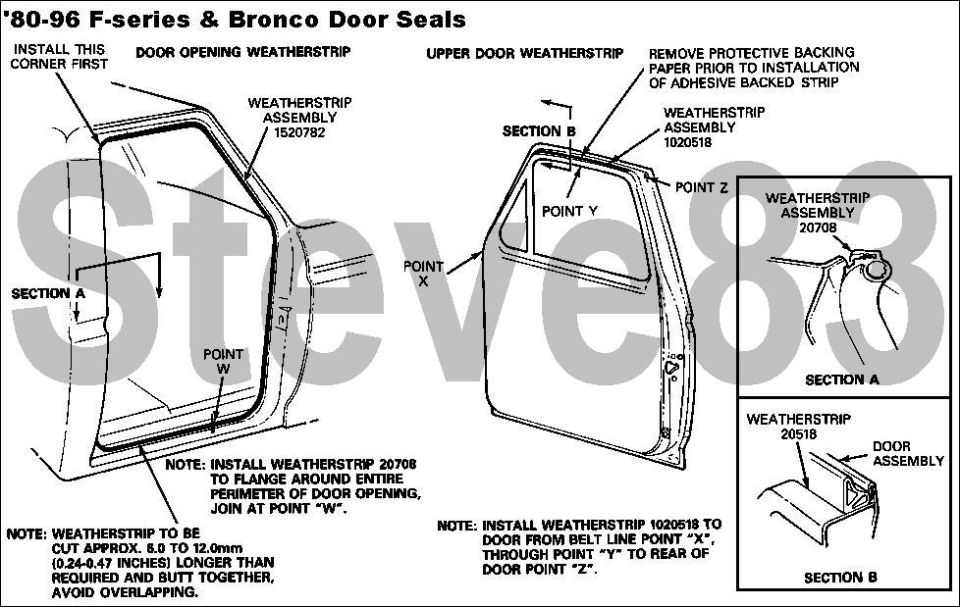

Technical diagram of F-series and Bronco door weatherstrip seals

Door Seal Details

The upper seal (20518 ) is available aftermarket ~$20, but I haven't confirmed that those are the same shape as the original formed seals, which were only installed on high-trim trucks.



For pics of a door being installed & aligned, see this album:
http://www.supermotors.net/registry/2742/66137-4
