Where is connector C-530 located?

Per the diagram, the C-530 connectors (18B821, 18W862, 18A919) are located behind the instrument panel, near the conventional radio.

What color are the C-530 connectors?

The diagram states 'ALL CONNECTORS ARE GREY.'

What wire circuits are on connector 18A919?

722 GR-R, 721 BL-GR, (2) 137 Y-BK, and 723 BL-O.

What wires appear on connector 18W862?

721 BL-GR, a B BK (black) wire, and 723 BL-O.

What circuits are shown on connector 18B919 (C-532)?

Visible circuits include 724 GR-W, 716 Y, 721 BL-GR, 718 R-W, 57 BK, 713 W, 710 W-G, plus 720 BL, 722 GR-R, 137 Y-BK, 717 BL-R, 709 W-BL + 713 W, and 715 GR; lower rows are cut off in the scan.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ “buyers guide”/ Photo supermotors.net/registry/media/1109832

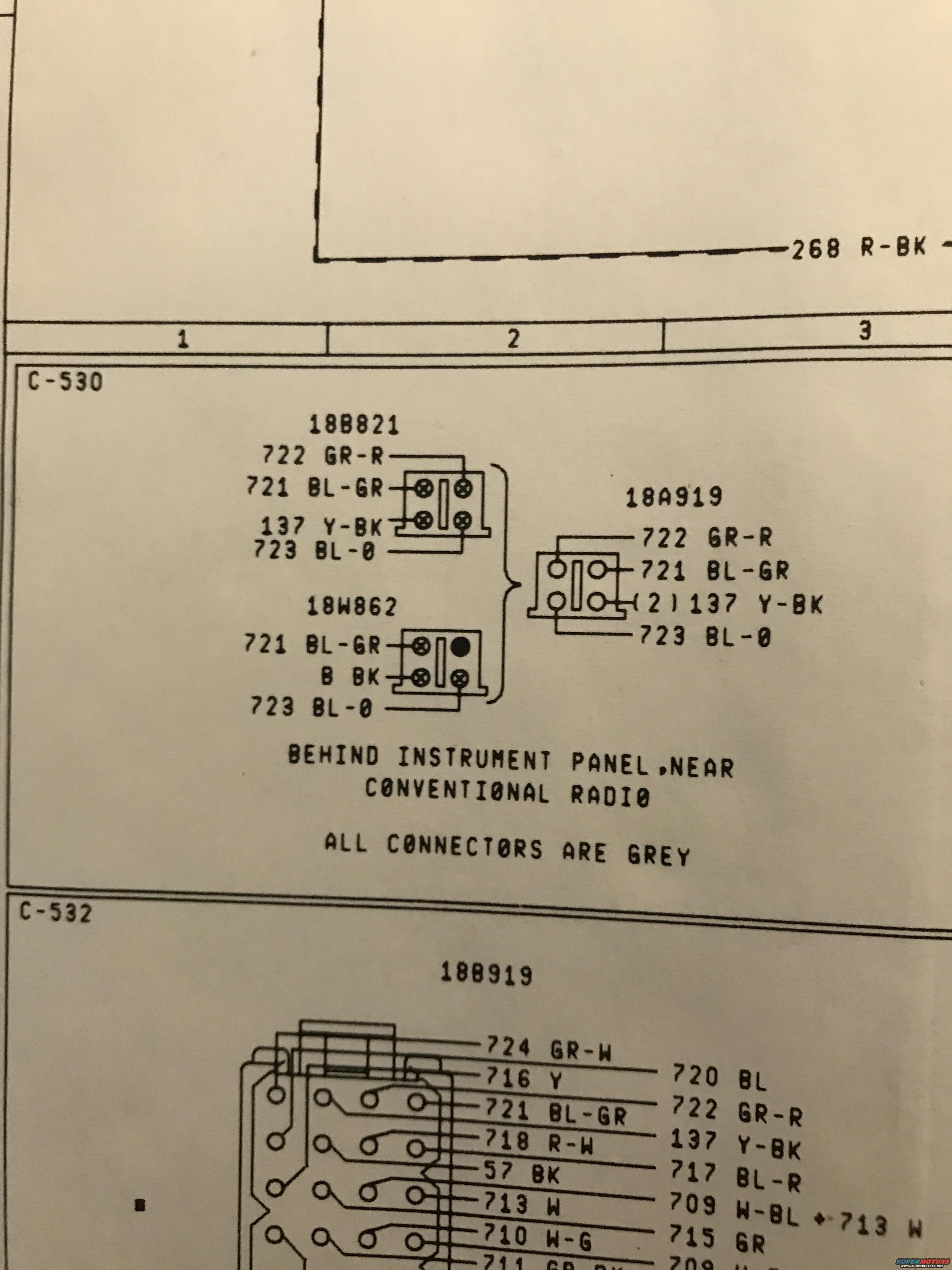

1979 Ford Bronco Radio Connector Wiring Diagram C-530 & C-532 Pinouts

Connector pinout wiring detail behind instrument panel near radio with color-coded wire numbers

‹ ›

Wiring connector pinout diagram for connectors behind the instrument panel near the radio with color-coded wire IDs

AI caption June 2017 · Photo 104 of 104

This scanned page is from a Ford factory-style wiring/connector location diagram showing pin-out details for connectors labeled C-530 and C-532. Connector C-530 covers three related connector part numbers — 18B821, 18W862, and 18A919 — which mate together behind the instrument panel near the conventional radio; a note states that all connectors are grey. Wire circuits shown at these connectors include 722 GR-R (green-red), 721 BL-GR (blue-green), 137 Y-BK (yellow-black, shown doubled '(2)' at 18A919), 723 BL-O (blue-orange), and a B BK (black) wire on 18W862. A dashed circuit 268 R-BK appears at the top of the page from an adjacent diagram section. The lower section, C-532, shows a multi-pin connector 18B919 with circuits including 724 GR-W, 716 Y, 721 BL-GR, 718 R-W, 57 BK, 713 W, 710 W-G, 720 BL, 722 GR-R, 137 Y-BK, 717 BL-R, 709 W-BL + 713 W, and 715 GR; the bottom rows are cut off. A reader can use this page to identify radio-area connector shapes, wire circuit numbers, and color codes for tracing dash wiring.
