C269 gray multi-function switch connector pinout viewed from top…

C269 gray multi-function switch connector pinout viewed from top with circuit table and mod notes
C269 gray multi-function switch connector pinout viewed from top with circuit table and mod notesOriginal file
C269 gray multi-function switch connector pinout viewed from top with circuit table and mod notes

Reference · 1996-1999 TaurusAll 33 wiring diagrams

Powertrain control module connector C191 104-pin face view with pin, circuit and function tables 1997 Ford Taurus SHO 3.4L V8 PCM Pinout Diagram - 104-Pin Connector C191 1997 Ford Taurus ABS Wiring Diagram - Anti-Lock Brake Module, Sensors & Fuses 1997 Ford Taurus EATC Climate Control Sensor Wiring Diagram - RCC, PCM, PATS Multi-panel audio system wiring diagram with speaker circuits, fuse feeds and connector callouts C269 gray multi-function switch connector pinout viewed from top with circuit table and mod notes '02 Taurus/Sable PCM connector view table for pins 41-104 with circuits and functions 1997 Ford Taurus/Sable Engine Compartment Electrical Component Locations (2 of 2) 33wiring diagrams1996-1999 Ford Taurus More reference Engine coolant/intake air temperature sensor values table of temperature, voltage and resistanceManual page Multi-function switch component testing tables with circuit numbers, wire colors and switch positionsService procedure Ford Taurus SHO 3.4L V8 Engine Exploded Parts Diagram - Gaskets & Part NumbersExploded parts Ford Taurus / Sable Power Steering Pump & Gear Specifications - VAPS, SHOSpec plate Ford Taurus SHO 3.4L V8 Serpentine Drive Belt Routing Diagram & Pulley GuideSchematic 1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay ChartFuse chart V8 Prototype Intake Manifold Runner Horns Patent Drawing: Figure 8 Plenum LayoutBlueprint 1997 Ford Taurus EATC Vacuum Schematic - Hose Routing & Part NumbersVacuum routing Ford 2009 Chicago Auto Show brochure cover with a red sedanBrochure

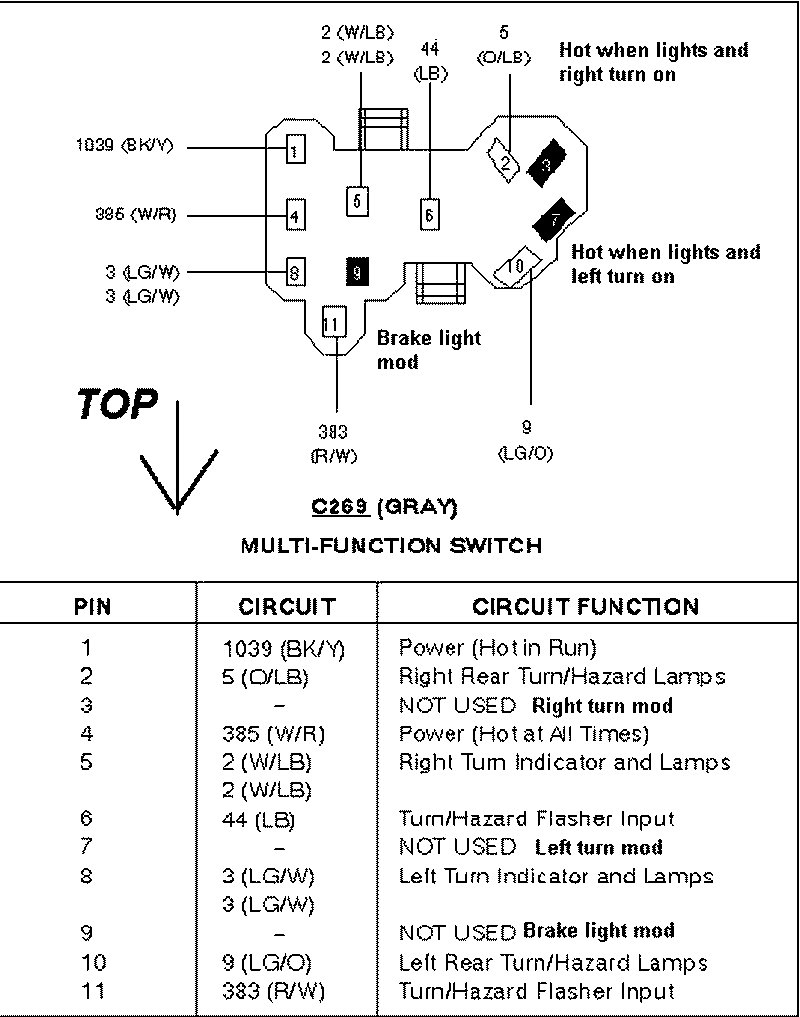

Pinout of the C269 (GRAY) multi-function switch showing 11 pins, circuits like 1039 (BK/Y) and 44 (LB), with added turn and brake light mod notes.

Part of 1996-1999 Ford Taurus Wiring Diagrams
