What connector does this PCM pinout diagram cover?

It covers the 104-pin Powertrain Control Module (PCM) connector, identified in the document as C191, with every pin's circuit number, wire color, and function listed.

Which PCM pin is Keep Alive Power (B+)?

Pin 55, circuit 1076 (DG/O), is Keep Alive Power (B+). Main VPWR power is on pins 71 and 97, circuit 361 (R).

Which pins control the fuel injectors?

Injector controls: pin 75 = #1 (555, T), pin 101 = #2 (556, W), pin 73 = #3 (559, T/BK), pin 100 = #4 (558, BR/LB), pin 99 = #6 (560, LG/O), pin 72 = #7 (561, T/R), pin 98 = #8 (562, LB), and pin 74 (557, BR/Y) is also printed as Fuel Injector #3 Control.

Where are the Coil Per Plug (CPP) outputs on this PCM?

CPP #1 = pin 26 (1024, LG/W), #2 = pin 104 (1026, LG/W), #3 = pin 27 (1028, W/PK), #4 = pin 78 (1030, DG/P), #5 = pin 52 (1021, LG/Y), #6 = pin 1 (1025, O/Y), #7 = pin 53 (1027, PK/LB), #8 = pin 79 (1029, W/R).

Which pins are the heated oxygen sensor inputs?

HO2S #11 input = pin 60 (74, GY/LB); HO2S #12 (catalyst monitor) = pin 35 (94, R/BK); HO2S #21 = pin 87 (392, R/LG); HO2S #22 (catalyst monitor) = pin 61 (398, P/LG). Heaters are on pins 93-96.

Home/ Registry/ Ford/ Taurus/ 1996-1999/ 1997 Ford Taurus/ Photo supermotors.net/registry/media/515401

1997 Ford Taurus SHO 3.4L V8 PCM Pinout Diagram - 104-Pin Connector C191

Ford PCM connector pinout chart: 104-pin powertrain control module pin/circuit/function table

‹ ›

Reference · 1996-1999 TaurusAll 33 wiring diagrams

1997 Ford Taurus Cooling Fan Wiring Diagram - CCRM, EDF/HEDF Relays & PCM

Ford Taurus SARC Module Connector C450 Pinout - Wire Colors & Circuits

Powertrain control module connector C191 104-pin face view with pin, circuit and function tables

1997 Ford Taurus SHO 3.4L V8 PCM Pinout Diagram - 104-Pin Connector C191

1997 Ford Taurus ABS Wiring Diagram - Anti-Lock Brake Module, Sensors & Fuses

1997 Ford Taurus EATC Climate Control Sensor Wiring Diagram - RCC, PCM, PATS

Multi-panel audio system wiring diagram with speaker circuits, fuse feeds and connector callouts

C269 gray multi-function switch connector pinout viewed from top with circuit table and mod notes

33wiring diagrams1996-1999 Ford Taurus More reference

Engine coolant/intake air temperature sensor values table of temperature, voltage and resistance

Manual page

Multi-function switch component testing tables with circuit numbers, wire colors and switch positions

Service procedure

Exploded parts

Ford Taurus / Sable Power Steering Pump & Gear Specifications - VAPS, SHO

Spec plate

Ford Taurus SHO 3.4L V8 Serpentine Drive Belt Routing Diagram & Pulley Guide

Schematic

1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay Chart

Fuse chart

V8 Prototype Intake Manifold Runner Horns Patent Drawing: Figure 8 Plenum Layout

Blueprint

1997 Ford Taurus EATC Vacuum Schematic - Hose Routing & Part Numbers

Vacuum routing

Brochure

Powertrain Control Module (PCM) connector pinout listing each pin number, wire circuit color, and circuit function (ECT, IAT, MAF, injectors, COP coils, EGR, knock sensor, fuel pump) for diagnostic breakout.

Part of 1996-1999 Ford Taurus Wiring Diagrams

AI caption May 2007 · Photo 277 of 575

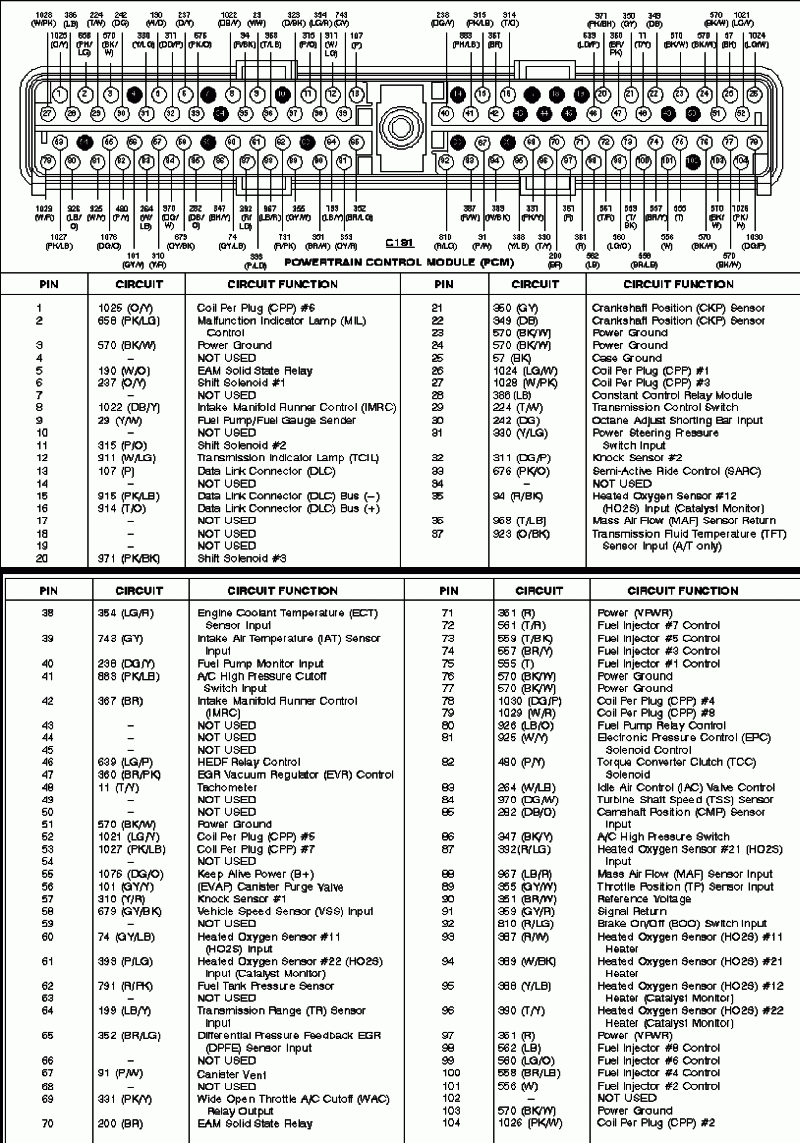

This document is a complete pinout reference for a Ford Powertrain Control Module (PCM) 104-pin connector, identified as connector C191. The top of the page shows an illustration of the connector with all 104 cavities numbered and labeled with circuit numbers and wire color codes. Below, two tables list every pin (1-104) with its circuit number, wire color abbreviation, and circuit function. Functions covered include eight Coil Per Plug (CPP) outputs (#1-#8), eight fuel injector control circuits (#1-#8), power grounds, VPWR power feeds, Keep Alive Power (B+), sensor inputs (ECT, IAT, MAF, TP, CKP, CMP, VSS, TSS, TFT, DPFE, knock sensors #1 and #2, fuel tank pressure), four heated oxygen sensor inputs and heaters (HO2S #11, #12, #21, #22 including catalyst monitor circuits), transmission controls (shift solenoids #1-#3, EPC, TCC, TR sensor, TCIL), relay controls (fuel pump, HEDF, WAC, EAM solid state relay, Constant Control Relay Module), IMRC, EVR/EGR, EVAP purge and canister vent, Data Link Connector bus lines, SARC (Semi-Active Ride Control), power steering pressure switch, octane adjust shorting bar, and brake on/off input. Unused pins are explicitly marked NOT USED. The eight-coil/eight-injector layout indicates an 8-cylinder application, consistent with the 1997 Taurus SHO 3.4L V8.
