What amperage is fuse 9 and what does it power?

Fuse 9 is 30A and feeds circuit 181 BR/O to the A/C-Heater (page 118) and Heater (page 116).

Which fuse powers the power windows on this diesel diagram?

Fuse 14, a 30A fuse, feeds circuit 400 LB/BK through connector C1960 to the power windows (page 96).

What circuit runs from the ignition switch START terminal to the glow plug control?

Circuit 32 R/LB runs from the ignition switch ST terminal to the Diesel Start/Glow Plug Control, covered on page 30.

What fuse protects the anti-lock brakes?

Fuse 17, rated 20A, feeds circuit 601 LB/PK to the Anti-Lock Brakes (page 75).

What fuse links feed the diesel glow plug control and fuel line heater?

Fuse Link V and Fuse Link U, both 20 GA blue, feed circuit 30 R/LG to the Diesel Start/Glow Plug Control (page 31) and circuit 34 DB to the Fuel Line Heater (page 31).

Home/ Registry/ Ford/ F-150/ 1987-1991/ “Truck”/ Photo supermotors.net/registry/media/608357

1988 Ford F-250 Diesel Charge/Power Distribution Wiring Diagram - EVTM Pg 22

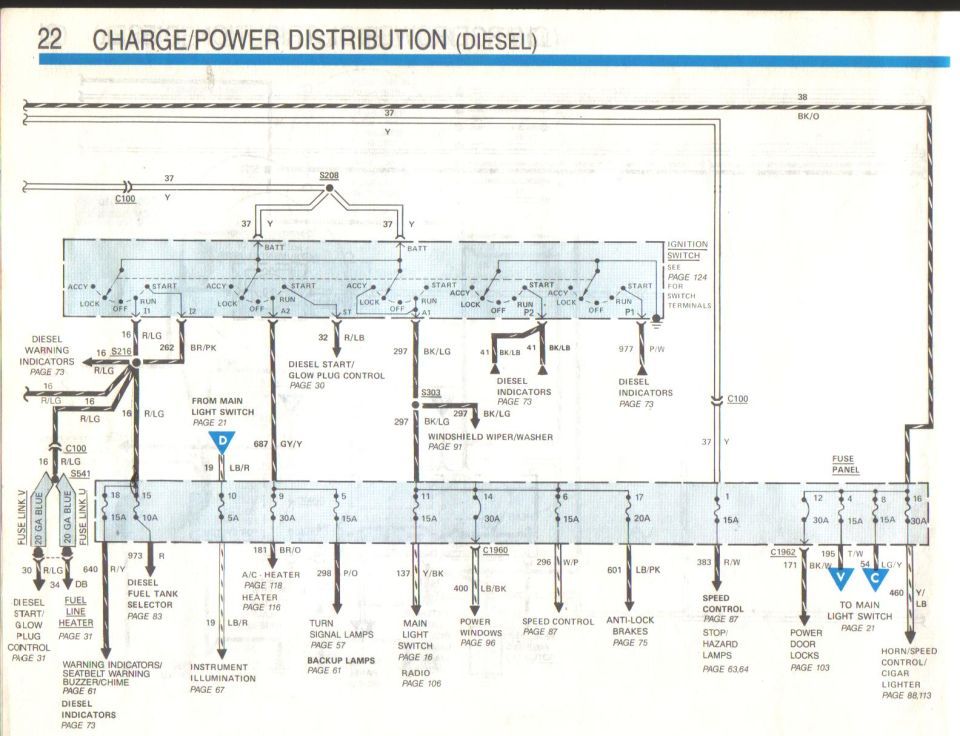

Automotive wiring diagram page 22, Charge/Power Distribution (Diesel), color-coded

‹ ›

Reference · 1987-1991 F-150All 8 wiring diagrams

Ford Horn Relay Wiring Diagram & Horn Switch Bypass - High/Low Pitch Horns

1988 Ford F-250 Diesel Start/Glow Plug Control Wiring Diagram - EVTM Page 31

1988 Ford F-250 Diesel Start & Glow Plug Wiring Diagram - EVTM Page 30

1988 Ford F-250 Diesel Charge/Power Distribution Wiring Diagram - EVTM Pg 22

1988 Ford F-250 Diesel Charge/Power Distribution Wiring Diagram - EVTM Page 21

1988 Ford F-250 Diesel Charge/Power Distribution Wiring Diagram - EVTM Pg 20

Ford 5.0L & 5.8L TFI Ignition System Wiring Diagram - EEC, Coil, SPOUT Circuit

1988 Ford F-150 4.9L EEC-IV Wiring Diagram - ECU Pinout & Sensor Wire Colors

8wiring diagrams1987-1991 Ford F-150 More reference

1988 Ford F-250 Diesel Start/Glow Plug Control System - EVTM Page 33

Service procedure

Ford 7.3L Diesel Start/Glow Plug Sensor & Connector Locations - EVTM Page 34

Manual page

'89 Ford F-150 certification label with VIN, 5450 LB GVWR, P235/75R15XL tire specs and paint and axle codes

Spec plate

Exploded parts

Ford 300ci 4.9L Inline 6 Firing Order & Distributor Cap Diagram (F-150)

Schematic

Ford F-150 EFI Vacuum Lines Diagram - MAP, EGR, TAB/TAD & Reservoir Routing

Vacuum routing

Blueprint

Automotive wiring diagram page for diesel charge and power distribution with color-coded wires, connectors and fuse panel.

Part of 1987-1991 Ford F-150 Wiring Diagrams

AI caption February 2008 · Photo 3 of 9

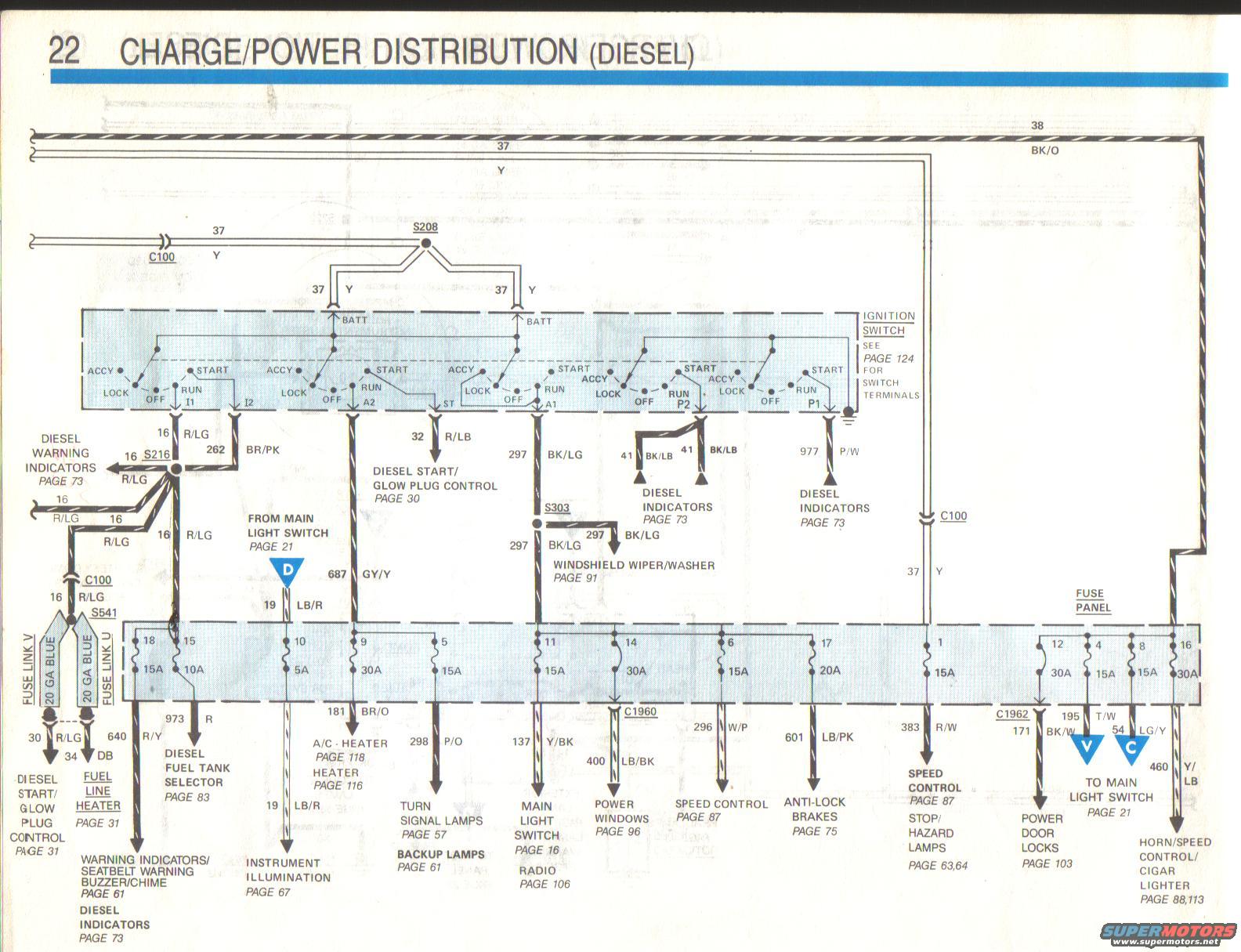

This is page 22 of a Ford Electrical & Vacuum Troubleshooting Manual (EVTM) titled "Charge/Power Distribution (Diesel)." It is a wiring diagram showing how battery power (circuits 37 Y and 38 BK/O) feeds the ignition switch and interior fuse panel on a diesel truck. The ignition switch is drawn with its ACCY/LOCK/OFF/RUN/START positions and terminals (I1, I2, A2, ST, A1, P2, P1), with a note referring to page 124 for switch terminal identification. Switched outputs include circuit 16 R/LG to the diesel warning indicators, 32 R/LB to the diesel start/glow plug control, 297 BK/LG to the windshield wiper/washer, 41 BK/LB and 977 P/W to diesel indicators. Fuse links V and U (20 gauge blue) feed the diesel start/glow plug control (30 R/LG) and fuel line heater (34 DB). The fuse panel section documents fuse positions and amperages: 18 (15A), 15 (10A), 10 (5A), 9 (30A), 5 (15A), 11 (15A), 14 (30A), 6 (15A), 17 (20A), 1 (15A), 12 (30A), 4 (15A), 8 (15A), and 16 (30A), with output circuit numbers, wire colors, and the systems they power (heater, turn signals, power windows, speed control, anti-lock brakes, stop/hazard lamps, power door locks, horn/cigar lighter, etc.) with EVTM page cross-references.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What amperage is fuse 9 and what does it power?: Fuse 9 is 30A and feeds circuit 181 BR/O to the A/C-Heater (page 118) and Heater (page 116).
Which fuse powers the power windows on this diesel diagram?: Fuse 14, a 30A fuse, feeds circuit 400 LB/BK through connector C1960 to the power windows (page 96).
What circuit runs from the ignition switch START terminal to the glow plug control?: Circuit 32 R/LB runs from the ignition switch ST terminal to the Diesel Start/Glow Plug Control, covered on page 30.
What fuse protects the anti-lock brakes?: Fuse 17, rated 20A, feeds circuit 601 LB/PK to the Anti-Lock Brakes (page 75).
What fuse links feed the diesel glow plug control and fuel line heater?: Fuse Link V and Fuse Link U, both 20 GA blue, feed circuit 30 R/LG to the Diesel Start/Glow Plug Control (page 31) and circuit 34 DB to the Fuel Line Heater (page 31).
