Gear setup sheet with backlash specification table and tooth con…

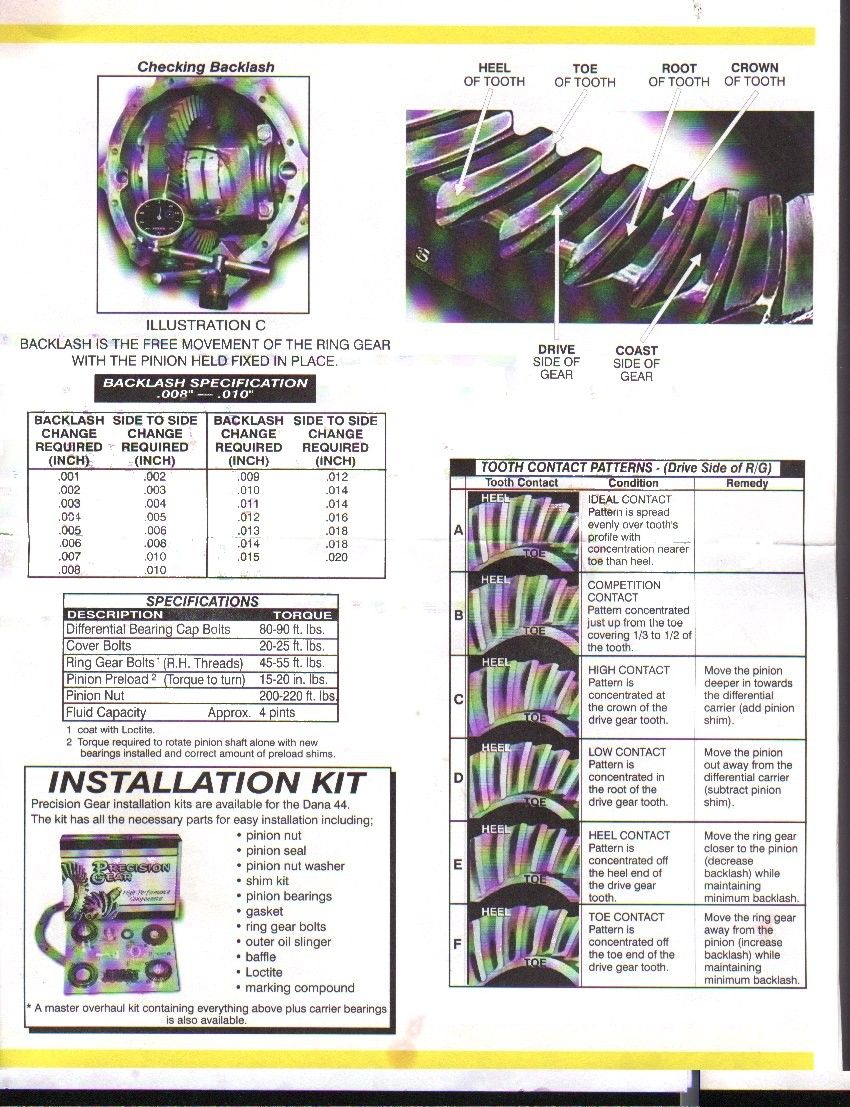

Gear setup sheet with backlash specification table and tooth contact pattern chart
Gear setup sheet with backlash specification table and tooth contact pattern chartOriginal file
Gear setup sheet with backlash specification table and tooth contact pattern chart

Precision Gear Dana 44 Gear SetupView all 3

Differential installation hints page with pinion bearing cutaway diagram and gear contact patterns Gear setup sheet with backlash specification table and tooth contact pattern chart Break-in procedure page with warranty notice and exploded differential parts diagram, Precision Gear 3photos in this albumView all
