Rod Bolt Stretch Monitoring Chart - V8 Connecting Rod Bolt Measurement Sheet

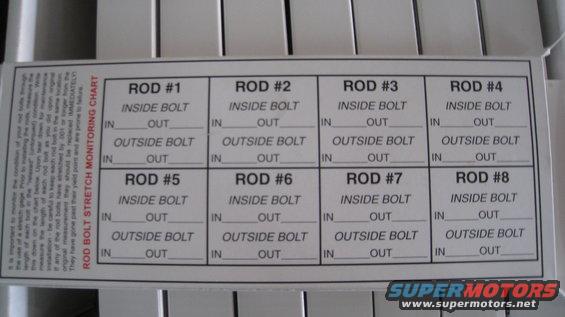

This document is a "Rod Bolt Stretch Monitoring Chart," a blank worksheet included with a set of connecting rods or rod bolts for a V8 engine (it provides entries for eight rods). The left side carries instructions explaining that rod bolt condition should be monitored with a stretch gage: before installing the rods, each bolt's length should be measured in the relaxed (untorqued) state and recorded on the chart. At any later teardown for maintenance, each bolt should be re-measured (keeping every bolt in its same location), and if any rod bolt has stretched by .001 inch or more beyond its original measurement, it must be replaced immediately because it has passed its yield point and is prone to failure. The chart itself is a grid of eight boxes (ROD #1 through ROD #8), each with fill-in blanks for the INSIDE BOLT and OUTSIDE BOLT, and IN/OUT measurement lines for each bolt. All measurement fields in this scan are blank (unused). No torque values, part numbers, brand names, or vehicle/year applicability are printed on the chart. A reader learns the proper procedure for baseline-measuring and monitoring connecting rod bolt stretch and the .001 in. replacement threshold.
