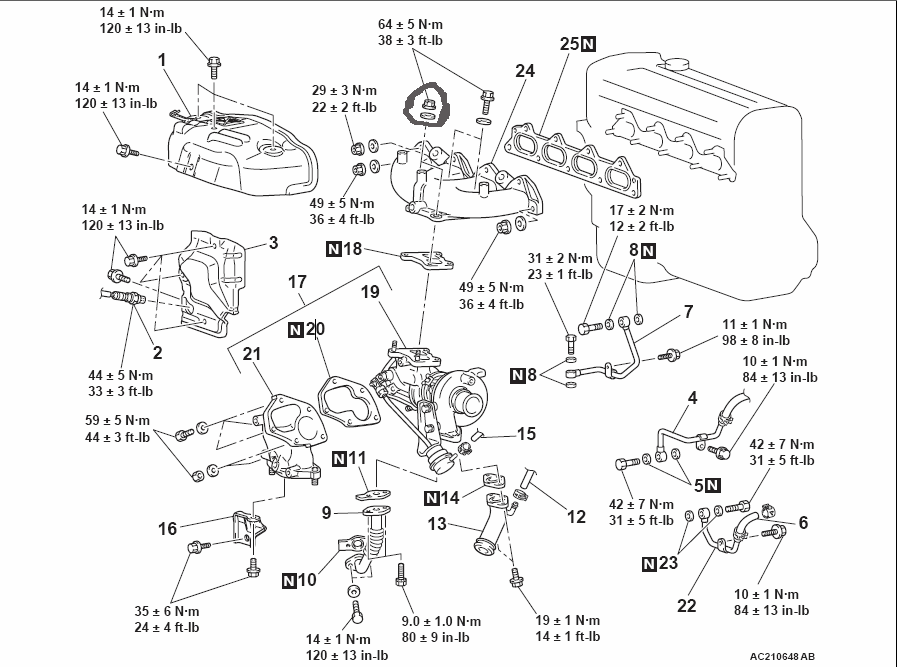

Exhaust Manifold & Turbocharger Exploded Diagram with Torque Specs (AC210648AB)

This document is an exploded parts diagram of an exhaust manifold and turbocharger assembly on a four-cylinder engine, drawing reference AC210648AB. It shows the exhaust manifold, exhaust manifold gasket, heat protectors/shields, an oxygen sensor, turbocharger assembly, turbocharger gaskets, oil feed and return pipes, water (coolant) pipes and hoses, brackets/stays, and associated fasteners, all keyed with callout numbers 1 through 25. Several callouts carry an "N" symbol denoting a special service notation (such as parts to be replaced or sealed). The diagram's primary value is its complete set of tightening torque specifications, given in both metric and English units: values range from small hose/pipe fittings at 9.0 ± 1.0 N·m (80 ± 9 in-lb) and 10 ± 1 N·m (84 ± 13 in-lb) up to the exhaust manifold nuts at 64 ± 5 N·m (38 ± 3 ft-lb) and a 59 ± 5 N·m (44 ± 3 ft-lb) fastener. A reader can learn the disassembly/assembly relationship of the turbocharger and exhaust manifold components and the exact torque for each bolt, nut, and fitting. No vehicle model, year, or part numbers are stated on the diagram itself.
