Hub Spacer Ring Blueprint - Ø77.75 OD x Ø72.00 ID x 6.35 Thick (Ford Probe)

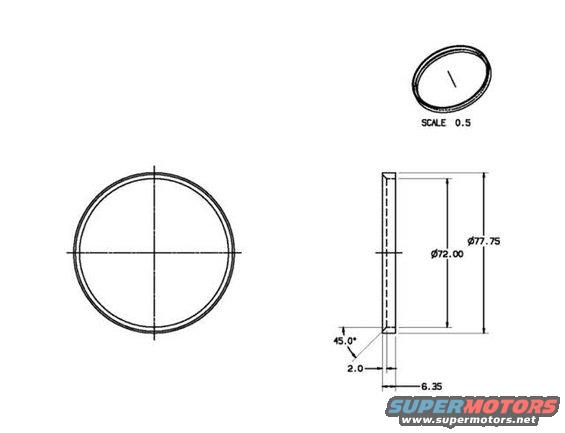

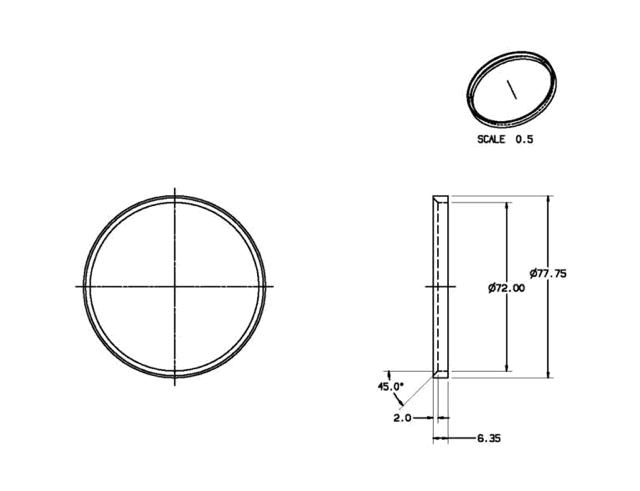

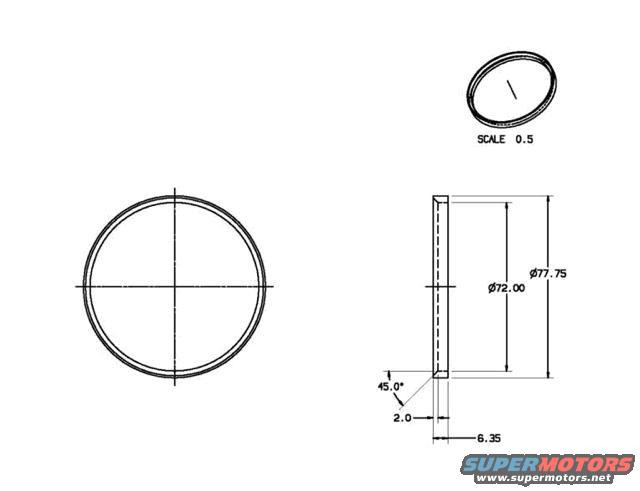

This document is a CAD-style blueprint (mechanical drawing) of a thin circular ring, uploaded as 'hub-space.JPG' and apparently depicting a hub-centric spacer ring. The drawing shows three views: a small isometric/perspective view at upper right labeled 'SCALE 0.5', a front (face-on) view of the ring at left with centerlines, and a dimensioned side/cross-section view at right. The dimensioned view specifies an outer diameter of Ø77.75, an inner diameter of Ø72.00, an overall thickness of 6.35, and a 45.0° chamfer with a 2.0 dimension on one edge. Units are not explicitly stated but are consistent with millimeters. No part numbers, material specifications, tolerances, title block, vehicle applicability, or dates are visible on the drawing. A reader can use this document to fabricate or verify a hub-centering spacer ring with a 72.00 mm bore, 77.75 mm outer diameter, and 6.35 mm width with a 2.0 mm x 45° chamfer. The uploader filed it under a 1993 Ford Probe; the drawing itself contains no vehicle identification to confirm or contradict that claim.
