2004 Ford F-150 2WD Front Disc Brake Exploded Diagram - Torque Specs

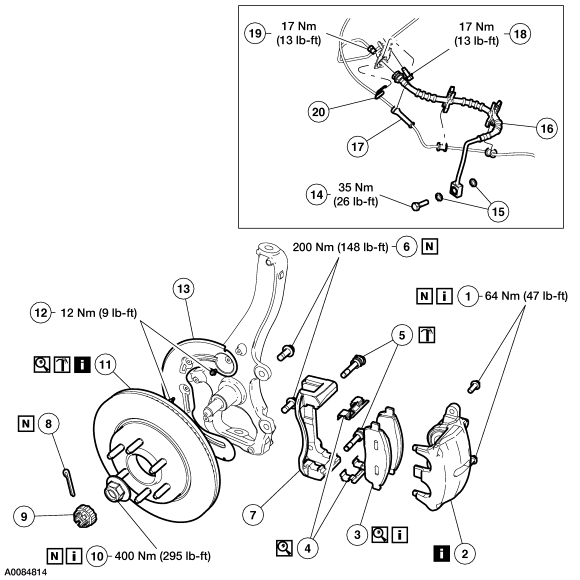

This document is an exploded parts diagram of a front disc brake assembly and associated brake hose/line routing, identified by figure number A0084814. The main illustration shows the steering knuckle, splash shield, brake rotor, wheel hub, caliper anchor bracket, brake pads with clips, and the brake caliper, each identified by numbered callouts (1–13). An upper inset details the flexible brake hose and brake tube connections at the frame with callouts 14–20. Torque specifications are provided for key fasteners: caliper bolts 64 Nm (47 lb-ft), a knuckle-area fastener 200 Nm (148 lb-ft), splash shield bolts 12 Nm (9 lb-ft), the hub/axle nut 400 Nm (295 lb-ft), brake hose fittings 17 Nm (13 lb-ft), and a hose bracket bolt 35 Nm (26 lb-ft). Small icon boxes (N, i, T, magnifier) accompany several callouts, indicating service notes such as special tools or additional information in the source manual. A reader can learn the assembly order and relationship of front brake components and the correct tightening torques for reassembly. The document itself contains no year, make, model, or part numbers; the uploader's filename attributes it to a 2004 Ford F-150 2WD front brake system.
