2007 Ford Mustang Coolant Pump Exploded Diagram - Hoses, Bracket & Torque Spec

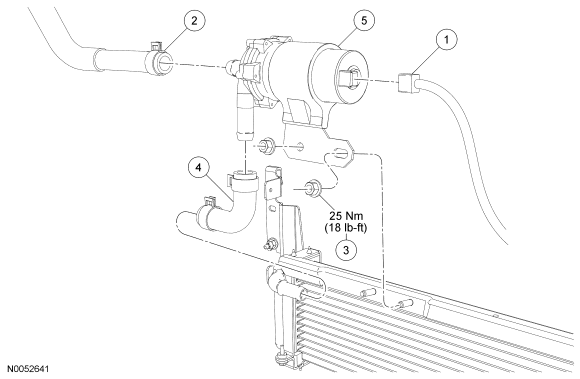

This document is an exploded parts illustration (Ford service-manual style, figure number N0052641) showing the installation of an auxiliary coolant pump assembly and its related hoses, mounting bracket, and electrical connector. Five numbered callouts identify components: (1) an electrical connector/wiring harness that plugs into the pump, (2) an upper coolant hose with clamp, (3) the pump mounting bracket bolt, which carries the only torque specification in the drawing — 25 Nm (18 lb-ft), (4) a lower elbow coolant hose with clamps, and (5) the coolant pump itself with its mounting bracket. The bracket attaches near what appears to be a radiator or cooler core shown at the bottom of the illustration. The diagram itself contains no legend, part numbers, year/model applicability, or descriptive text beyond the callout numbers, the torque value, and the illustration reference number. It was uploaded to a 2007 Ford Mustang gallery under the filename "Coolant pump.gif," so it likely relates to that vehicle's cooling system, though the drawing does not state its own applicability. A reader can learn the general assembly orientation of the pump, hoses, connector, and bracket, and the bolt torque needed when installing the pump bracket.
