What part numbers make up the 2001 Ford F150 sliding sun roof assembly?

The exploded diagram calls out 51884, 50054, 52124, 54022, 502C52, 502C22, 500A64, 500A26, 500A65, 15B672, 502E28, 15C679 or 15790, 502D70, 14335 (wiring), 519A02, plus fasteners N806170-S36, N606673-S36, and N803851-S52.

Which parts are only serviced as part of an assembly?

Parts marked # are only serviced in the 50054 assembly; parts marked with a square are also serviced in the 502C22 moonroof assembly; the part marked with a triangle (519A02) is referred to the Soft Trim section.

What causes excessive wind noise from the roof opening panel according to the symptom chart?

The symptom chart lists roof opening panel adjustment and roof opening panel seal as possible sources of excessive wind noise.

What causes a leaking roof opening panel?

Possible sources listed are roof opening panel adjustments, roof opening panel drain hoses, and the roof opening panel seal.

What special tool is specified for diagnosing the roof opening panel?

A FLUKE 73III Automotive Meter, 105-R0057 or equivalent, and the manual refers to Wiring Diagrams Cell 101 for schematic and connector information.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/708839

2001 Ford F150 Sliding Sunroof Exploded Parts Diagram & Roof Panel Diagnosis

Open service manual showing an exploded sliding sun roof parts diagram with callouts

‹ ›

Reference · 2005-2014 MustangAll 44 exploded parts diagrams

2007 Ford Mustang Supercharger Assembly Exploded Diagram - Torque Spec N0071919

2007 Ford Mustang Coolant Pump Exploded Diagram - Hoses, Bracket & Torque Spec

Ford 5.4L Intake Manifold Bolt Location Diagram (11 Bolts) - A0040506

2001 Ford F150 Sliding Sunroof Exploded Parts Diagram & Roof Panel Diagnosis

Ford 4.6L V8 Intake Manifold & Gasket Exploded Parts Diagram (A0013524)

Ford Transmission Valve Body Diagram AD1405-A - Component Callout Illustration

Ford Seat Belt Retractor Mounting Diagram - Service Tool 501-010 (A0030872)

Ford ECT Engine Coolant Temperature Sensor Diagram - Connector Views (A24392-A)

44exploded parts diagrams2005-2014 Ford Mustang More reference

Ford Mustang Car Show Judged Classes List (1964½-2014) & Specialty Awards

Brochure

Ford Supercharger Bolt Tightening Sequence Diagram (Fig. N0049439)

Service procedure

Wiring diagram

Shop Air Piping Layout Diagram - Compressor Line Sizes, Drops & Drain Points

Schematic

2013 Ford Mustang GT Roush Stage III Window Sticker - MSRP, Options & EPA Data

Spec plate

Torque spec

1997 Ford F-150 RAP Module Location Diagram - Driver's Side Instrument Panel

Manual page

Fuse chart

Blueprint

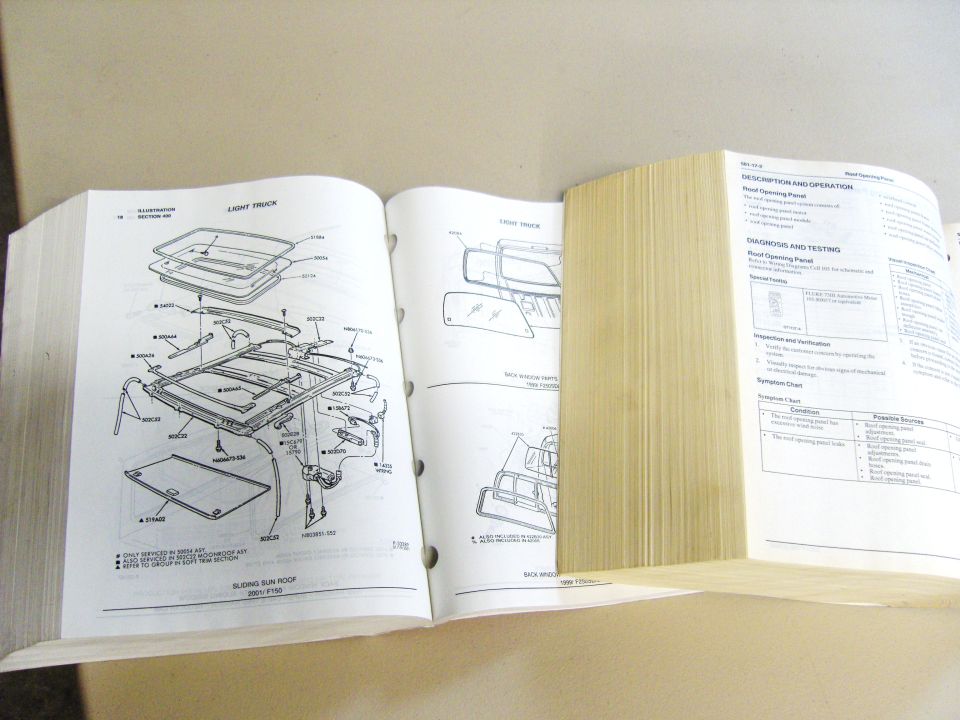

Open Ford service manual page showing an exploded parts breakdown of the sliding sun roof assembly with numbered callouts.

Part of 2005-2014 Ford Mustang Exploded Parts Diagrams

AI caption February 2009 · Photo 740 of 4866

This photograph shows two open Ford factory reference books. The left book is a Ford Light Truck parts illustration catalog (Illustration Section 400, page 18) displaying an exploded-view diagram of the sliding sun roof assembly for the 2001 F150. The diagram identifies numerous base part numbers including the sun roof glass/frame components (51884, 50054, 52124, 54022), rails and lifters (500A64, 500A26, 500A65, 502C22, 502C52, 502E28, 502D70), motor (15C679 or 15790), switch (15B672), wiring (14335), sun shade (519A02), and fasteners (N806170-S36, N606673-S36, N803851-S52), with footnotes about service assemblies. A partially visible middle page covers Back Window Parts for the 1999/ F250SD with callouts 42084, 422B30, and 42006. The right book is a workshop manual open to section 501-17-2, Roof Opening Panel, containing Description and Operation (motor, module, panel), Diagnosis and Testing referencing Wiring Diagrams Cell 101, a special tool listing (Fluke 73III Automotive Meter 105-R0057), inspection and verification steps, a visual inspection chart, and a symptom chart addressing wind noise (adjustment, seal) and leaks (adjustments, drain hoses, seal). Note: although filed under a 2007 Mustang, the pages themselves cover 1999-2001 Ford light trucks (F150/F250SD).

This document covers 1999-2001, which may differ from this 2007 Ford Mustang.

Is this accurate? Sign in to help verify it.
