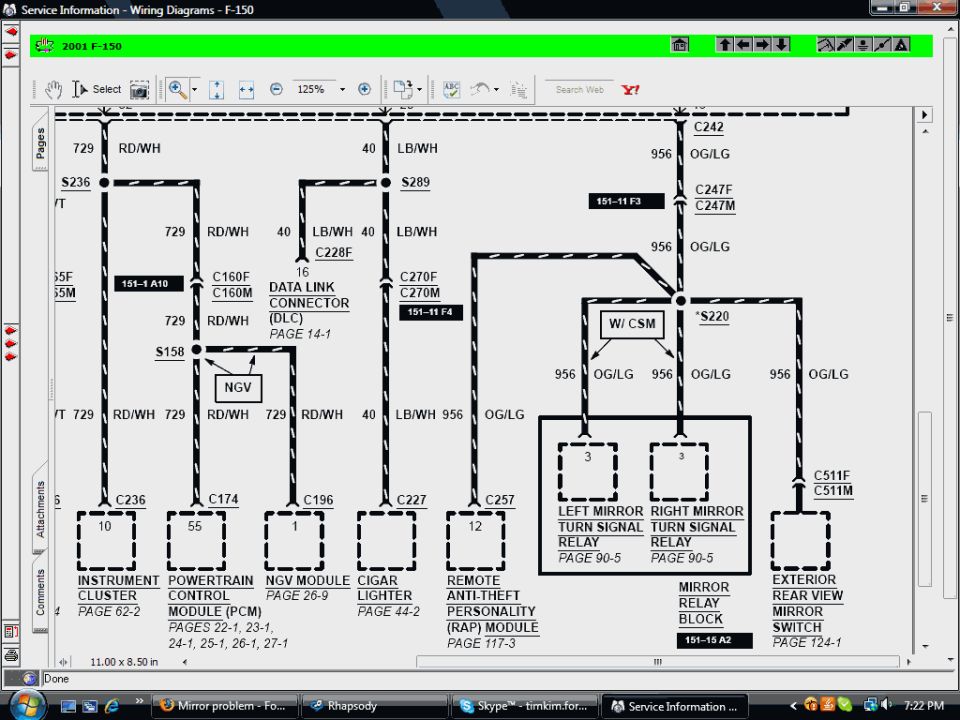

2001 Ford F-150 Wiring Diagram - PCM, Cluster, Mirror Relays & RAP Module
Ford F-150 (2001) wiring diagram routing 729 RD/WH and 956 OG/LG circuits through the DLC, instrument cluster, PCM, RAP module and left/right mirror turn-signal relays.
This document is a screenshot of a Ford factory service information wiring diagram page labeled "2001 F-150." It shows a portion of a power distribution wiring diagram tracing several circuits: circuit 729 (RD/WH red/white), circuit 40 (LB/WH light blue/white), and circuit 956 (OG/LG orange/light green). Splices shown include S236, S289, S158, and *S220 (with a "W/ CSM" branch). Connectors identified include C242, C247F/C247M, C228F, C160F/C160M, C270F/C270M, C236, C174, C196, C227, C257, and C511F/C511M. The circuits feed the Instrument Cluster (pin 10, C236, page 62-2), the Powertrain Control Module (pin 55, C174, pages 22-1 through 27-1), the NGV Module (pin 1, C196, page 26-9), the Cigar Lighter (C227, page 44-2), the Remote Anti-Theft Personality (RAP) Module (pin 12, C257, page 117-3), the Left and Right Mirror Turn Signal Relays (pin 3, page 90-5) in the Mirror Relay Block (grid 151-15 A2), and the Exterior Rear View Mirror Switch (C511F/C511M, page 124-1). Grid location references 151-1 A10, 151-11 F3, and 151-11 F4 are shown. A reader can learn wire colors, circuit numbers, connector IDs, and cross-reference page numbers for these systems.
This document covers 2001, which may differ from this 2007 Ford Mustang.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What wire color is circuit 729 on the 2001 F-150?
- Circuit 729 is RD/WH (red/white) and feeds the Instrument Cluster (C236 pin 10), the PCM (C174 pin 55), and the NGV Module (C196 pin 1).
- What circuit feeds the cigar lighter in this diagram?
- Circuit 40, wire color LB/WH (light blue/white), goes to the cigar lighter at connector C227; details are on page 44-2.
- Which connector goes to the exterior rear view mirror switch?
- Connector C511F/C511M on circuit 956 OG/LG feeds the Exterior Rear View Mirror Switch, covered on page 124-1.
- What powers the mirror turn signal relays?
- Circuit 956 OG/LG (orange/light green) feeds pin 3 of both the Left and Right Mirror Turn Signal Relays in the Mirror Relay Block; see page 90-5 and grid 151-15 A2.
- Where are the PCM wiring pages referenced?
- The Powertrain Control Module (PCM), connector C174 pin 55, is covered on pages 22-1, 23-1, 24-1, 25-1, 26-1, and 27-1.
