What fuse powers the driver power seat control switch in this diagram?

Fuse 112, a 30A fuse in the Battery Junction Box, feeds circuit 566 DG (dark green) to the Driver Power Seat Control Switch (page 120-1) on vehicles without memory, and to the Driver Seat Module (page 123-2) on vehicles with memory.

What wire color feeds the transfer case shift relays and TOD relay?

Circuit 704 DG/LG (dark green/light green) from fuse 104 (30A) feeds both the Transfer Case Shift Relays and the Torque On Demand (TOD) Relay via splice S213, connectors C201 and C223 (page 34-2).

Which fuse feeds the air suspension compressor relay?

Fuse 109, rated 60A, feeds the Air Suspension Compressor Relay (page 41-1) through wire 1053 LB/PK and connector C1000.

How does power reach the adjustable pedal switch?

On vehicles without memory, fuse 112 (30A) feeds wire 566 DG through connectors C433M/C433F, splice S292, C204M/C204F, and C290F/C290M to the Adjustable Pedal Switch (page 127-1).

What powers the driver power lumbar switch on memory-equipped vehicles?

On w/memory vehicles, fuse 112 (30A) feeds wire 566 DG through C205F/C205M and splice S310, then through connectors C319F/C319M to the Driver Power Lumbar Switch (page 132-1).

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/669035

Ford Power Seat, Memory Seat & Adjustable Pedal Wiring Diagram - Fuse Feeds

Electrical wiring diagram with color-coded wires, connectors, relays and labeled circuit modules

‹ ›

Wiring diagram showing battery junction box feeds to relays, seat modules and switches with color-coded circuits and connectors.

AI caption September 2008 · Photo 416 of 4867

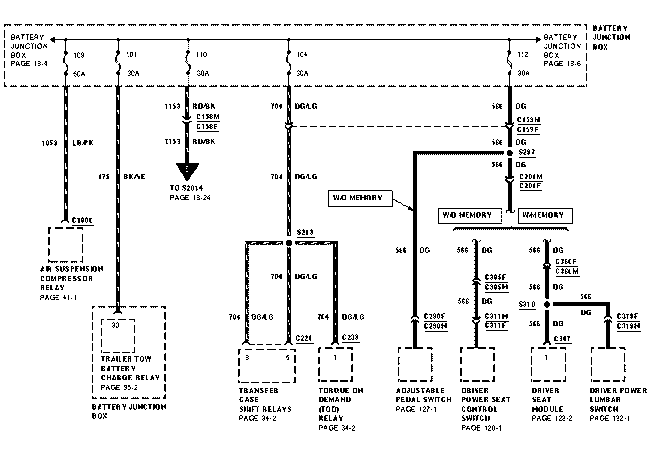

This is a Ford power distribution wiring diagram page showing five fused circuits fed from the Battery Junction Box (referenced on pages 13-4 and 13-6). Fuse 109 (60A) feeds the Air Suspension Compressor Relay (page 41-1) via circuit 1053 LB/PK. Fuse 101 (30A) feeds the Trailer Tow Battery Charge Relay (page 95-2) via 175 BK/YE. Fuse 110 (30A) feeds circuit 1153 RD/BK through connectors C138M/C138F to splice S2014 (page 13-24). Fuse 104 (30A) feeds circuit 704 DG/LG through splice S213 to the Transfer Case Shift Relays and the Torque On Demand (TOD) Relay (both page 34-2). Fuse 112 (30A) feeds circuit 566 DG through C433M/C433F and splice S292, then branches by option: without memory seats it powers the Adjustable Pedal Switch (page 127-1) and Driver Power Seat Control Switch (page 120-1); with memory it passes through C205F/C205M and splice S310 to the Driver Seat Module (page 123-2) and Driver Power Lumbar Switch (page 132-1). The diagram documents fuse ratings, wire colors, connector numbers, and splice locations for these seat, pedal, 4x4, air suspension, and trailer tow power feeds.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers the driver power seat control switch in this diagram?: Fuse 112, a 30A fuse in the Battery Junction Box, feeds circuit 566 DG (dark green) to the Driver Power Seat Control Switch (page 120-1) on vehicles without memory, and to the Driver Seat Module (page 123-2) on vehicles with memory.
What wire color feeds the transfer case shift relays and TOD relay?: Circuit 704 DG/LG (dark green/light green) from fuse 104 (30A) feeds both the Transfer Case Shift Relays and the Torque On Demand (TOD) Relay via splice S213, connectors C201 and C223 (page 34-2).
Which fuse feeds the air suspension compressor relay?: Fuse 109, rated 60A, feeds the Air Suspension Compressor Relay (page 41-1) through wire 1053 LB/PK and connector C1000.
How does power reach the adjustable pedal switch?: On vehicles without memory, fuse 112 (30A) feeds wire 566 DG through connectors C433M/C433F, splice S292, C204M/C204F, and C290F/C290M to the Adjustable Pedal Switch (page 127-1).
What powers the driver power lumbar switch on memory-equipped vehicles?: On w/memory vehicles, fuse 112 (30A) feeds wire 566 DG through C205F/C205M and splice S310, then through connectors C319F/C319M to the Driver Power Lumbar Switch (page 132-1).
