What vehicle does this steering column diagram cover?

It covers the 1997 Ford F150/250 under 8500# GVW (TE), specifically the steering column for floor shift with a fixed (non-tilt) wheel.

What is the part number callout for the steering wheel in this diagram?

The steering wheel is identified by base part number 3600, with fastener ★N807493-S100 shown adjacent.

Is this the complete steering column illustration?

No. It is labeled Page A and is continued on Page B.

What is the illustration reference number for this page?

P-31462, from Light Truck Illustration Section 35, page 5.

What part number is shown for the ignition switch area component?

11572 is called out in the lower area of the column, near wiring components 13K359 and related hardware.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/759760

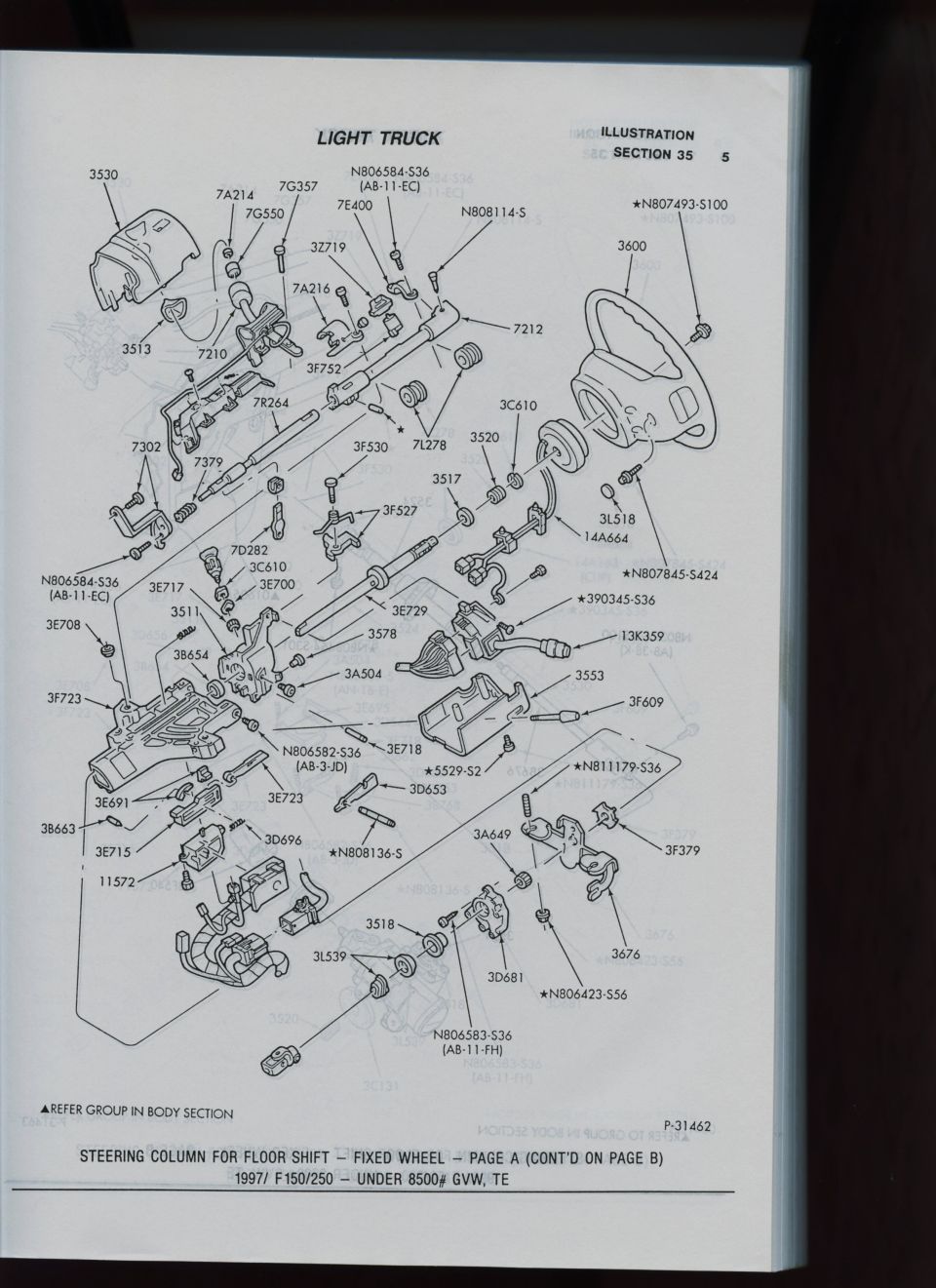

1997 Ford F150/F250 Steering Column Exploded Parts Diagram - Floor Shift Fixed

Exploded parts diagram of the F-150/250 steering column for floor shift with fixed wheel

‹ ›

Exploded parts breakdown drawing of the steering column assembly for floor shift, fixed wheel, with numbered components and part callouts.

AI caption October 2009 · Photo 1065 of 4867

This document is a page from a Ford Master Parts Catalog illustration section (Light Truck, Illustration Section 35, page 5, illustration P-31462). It shows an exploded parts diagram of the steering column for floor shift with a fixed (non-tilt) steering wheel, applicable to 1997 Ford F150/250 trucks under 8500 lb GVW (TE). This is Page A, continued on Page B. The diagram identifies dozens of components by Ford base part numbers, including the steering wheel (3600), column shrouds (3530), ignition lock cylinder area parts (3511, 3513), steering shaft components (3524-series area, 3E729, 3578, 7R264), upper column tube (7212), shift lever parts (7210, 7302, 7379), bearings (3517, 3520, 3L518), column mounting bracket (3F723), ignition switch (11572), multi-function switch wiring (13K359, 14A664), and lower shrouds/covers (3530, 3553, 3676). Hardware fasteners are called out by full service part numbers such as N806584-S36 (AB-11-EC), N808114-S, N807493-S100, N807845-S424, N806582-S36 (AB-3-JD), N811179-S36, N808136-S, N806423-S56, and N806583-S36 (AB-11-FH). A footnote directs the reader to refer to the group in the body section for triangle-marked items. This page is useful for identifying part numbers when disassembling or ordering parts for the fixed-wheel floor-shift steering column.

This document covers 1997, which may differ from this 2007 Ford Mustang.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicle does this steering column diagram cover?: It covers the 1997 Ford F150/250 under 8500# GVW (TE), specifically the steering column for floor shift with a fixed (non-tilt) wheel.
What is the part number callout for the steering wheel in this diagram?: The steering wheel is identified by base part number 3600, with fastener ★N807493-S100 shown adjacent.
Is this the complete steering column illustration?: No. It is labeled Page A and is continued on Page B.
What is the illustration reference number for this page?: P-31462, from Light Truck Illustration Section 35, page 5.
What part number is shown for the ignition switch area component?: 11572 is called out in the lower area of the column, near wiring components 13K359 and related hardware.
