1993 Ford Taurus Front Bumper Exploded Diagram - Part Numbers & Torque Spec

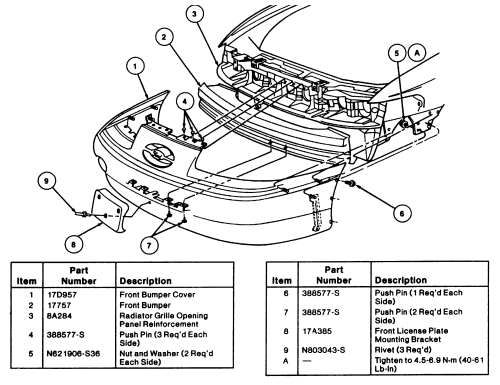

This document is an exploded parts diagram showing the front bumper assembly of a Ford Taurus (uploaded as a Gen 2 front bumper reference for a 1993 Taurus). The illustration depicts the front bumper cover, bumper beam, radiator grille opening panel reinforcement, and front license plate mounting bracket, with numbered callouts (1-9) plus a torque callout (A). Two legend tables identify each callout by Ford base part number and description: front bumper cover (17D957), front bumper (17757), radiator grille opening panel reinforcement (8A284), push pins (388577-S, used in quantities of 3, 1, and 2 per side at different locations), nut and washer (N621906-S36, 2 required each side), front license plate mounting bracket (17A385), and rivets (N803043-S, 3 required). Callout A specifies a fastener torque of 4.5-6.9 N·m (40-61 lb-in). A reader can learn the part numbers needed to order replacement bumper fasteners and components, the quantity of each fastener required, where each fastener attaches on the assembly, and the correct tightening torque for the nut-and-washer fasteners. The document itself contains no explicit year, model, or engine applicability statement.
