What Ford part number is the keyless entry remote transmitter?

The remote keyless entry fob is shown with base part number 15K601; it has LOCK, PANIC, and TRUNK buttons.

What is the part number for the front door wiring harness?

The main door harness is labeled 14A626, with related wiring components 14A099 and grommets/boots 14631.

What gasket is used on the door-mounted component in view C?

Part 14A297 is labeled as the gasket, used with parts 14A666, 14A099, 14489, and 14A630, secured with fastener N800470-S36B.

What do the parts marked with % mean on this diagram?

The footnote states '% REFER TO GROUP IN BODY SECTION' — those parts (e.g., 218A42, 21812, 219A38) are cataloged in the Body section.

What fasteners are shown for the door latch assembly?

Screws 55928-S36 are shown at the latch assembly (view B), along with parts 14018, 13752, and 14631.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “SHO”/ Photo supermotors.net/registry/media/911187

Ford Taurus Front Door Wiring Harness & Lock Exploded Parts Diagram (P-27119)

Exploded diagram of door wiring, lock cylinder, and latch components on a sedan

‹ ›

Exploded parts breakdown of front door wiring harness, lock cylinder, and latch components with numbered callouts.

AI caption March 2012 · Photo 4880 of 5000

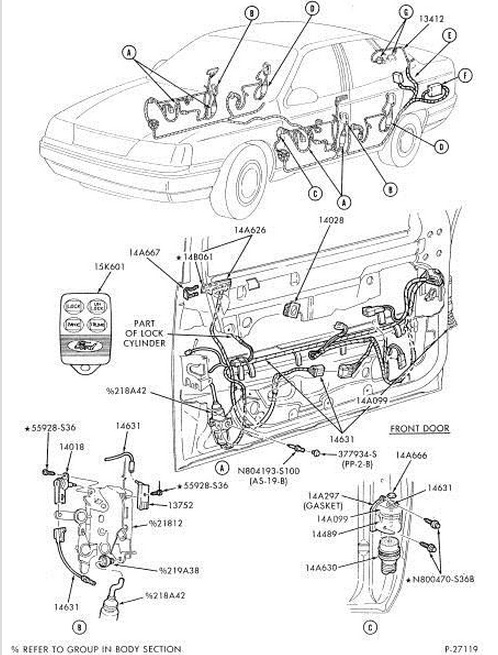

This document is an exploded parts / wiring harness routing diagram for the front door and body wiring of a Ford Taurus-generation sedan. The top illustration shows the full vehicle with circled callout letters (A through H) indicating harness routing locations throughout the body, including part 13412 near the roof/pillar area. The main central illustration details the front door interior, showing the door wiring harness (14A626), window regulator/lock-related components (14028, 14A667, 14B061), the keyless entry remote transmitter (15K601, shown with LOCK, PANIC, and TRUNK buttons), the lock cylinder area, wiring components 14A099 and grommets/boots 14631, and fasteners N804193-S100 and 377934-S. A lower-left detail (view B) shows the door latch and lock actuator assembly with parts 14018, 13752, 21812, 219A38, 218A42, and screws 55928-S36. A lower-right detail (view C) shows a door-mounted switch/actuator with parts 14A666, gasket 14A297, 14A099, 14489, 14A630, and fastener N800470-S36B. A footnote directs readers to the Body section for parts marked with %. Diagram reference number P-27119 appears at bottom right. Useful for identifying Ford part base numbers when repairing door wiring, locks, or keyless entry hardware.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What Ford part number is the keyless entry remote transmitter?: The remote keyless entry fob is shown with base part number 15K601; it has LOCK, PANIC, and TRUNK buttons.
What is the part number for the front door wiring harness?: The main door harness is labeled 14A626, with related wiring components 14A099 and grommets/boots 14631.
What gasket is used on the door-mounted component in view C?: Part 14A297 is labeled as the gasket, used with parts 14A666, 14A099, 14489, and 14A630, secured with fastener N800470-S36B.
What do the parts marked with % mean on this diagram?: The footnote states '% REFER TO GROUP IN BODY SECTION' — those parts (e.g., 218A42, 21812, 219A38) are cataloged in the Body section.
What fasteners are shown for the door latch assembly?: Screws 55928-S36 are shown at the latch assembly (view B), along with parts 14018, 13752, and 14631.
