1993 Ford Taurus Engine Mount & Subframe Exploded Diagram - Views X, Y, Z

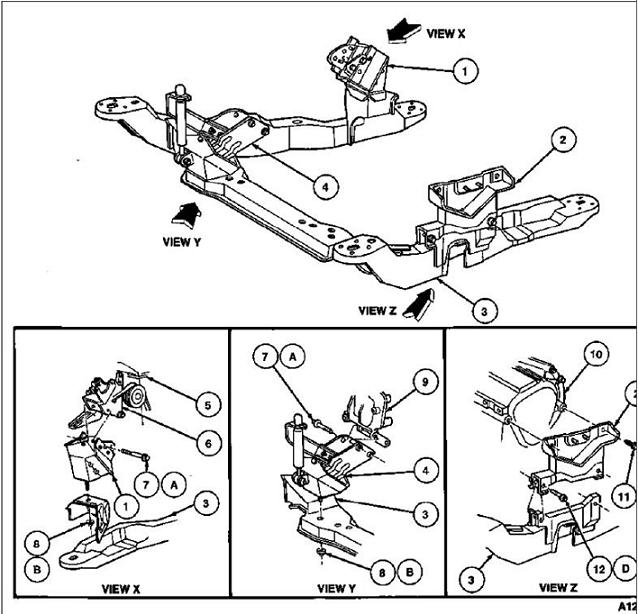

This document is an exploded parts diagram showing engine and transaxle mounts attached to a front subframe (crossmember) assembly, as commonly used on front-wheel-drive Ford vehicles such as the Ford Taurus. The main illustration at the top depicts the complete subframe with the engine mount brackets installed, with numbered callouts 1 through 4 and directional arrows referencing three detail views: VIEW X, VIEW Y, and VIEW Z. Below the main illustration are three inset panels. VIEW X (left panel) shows the mount and bracket detail with callouts 5, 6, 7, A, 1, 3, 8, and B. VIEW Y (center panel) shows another mount assembly with callouts 7, A, 9, 4, 3, 8, and B. VIEW Z (right panel) shows the transaxle-side mount and bracket with callouts 10, 11, 12, D, and 3. The diagram uses numbered and lettered callouts for parts and fasteners, but no legend, part numbers, or torque specifications are included on this page — the corresponding key would appear on an accompanying page. A partial figure reference code beginning "A12" appears in the bottom right corner. The document is useful for identifying the physical location and orientation of each engine/subframe mount and bracket.
