Ford Taurus 3.0L V6 Oil Pressure Switch Location & Torque Diagram (1993)

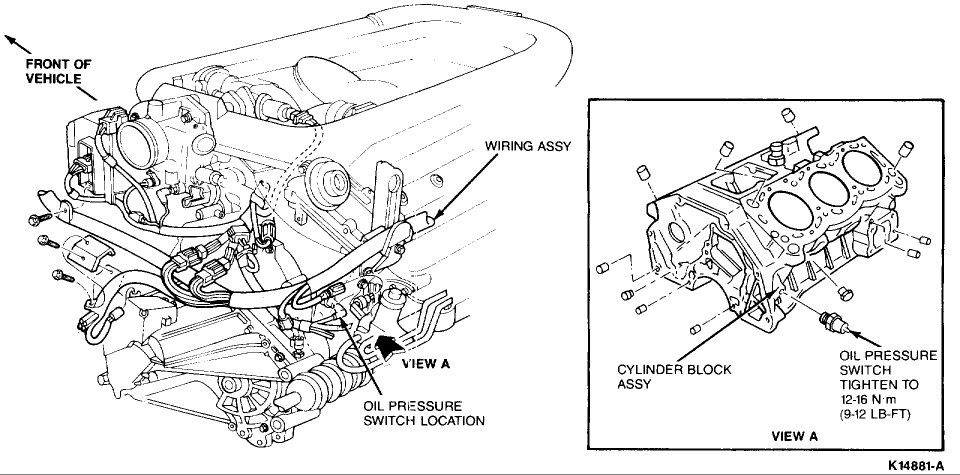

This document is an exploded parts / location illustration showing the oil pressure switch location on a V6 engine, uploaded to a 1993 Ford Taurus gallery. The main left-hand drawing depicts the engine assembly from above/front (with an arrow indicating the front of the vehicle), calling out the wiring assembly (WIRING ASSY) routed along the engine and pointing to the oil pressure switch location low on the block, marked as VIEW A. The inset boxed detail on the right (VIEW A) shows the cylinder block assembly (CYLINDER BLOCK ASSY) in an exploded view with core/freeze plugs, head gasket, and the oil pressure switch threaded into the side of the block. The callout specifies the torque for the oil pressure switch: tighten to 12-16 N·m (9-12 lb-ft). The illustration reference number K14881-A appears in the lower right corner. A reader can learn where the oil pressure switch is physically located on the engine, how the wiring assembly connects to it, and the correct installation torque. The document itself carries no explicit year, make, or model text, so applicability rests on the uploader's claim of a 1993 Ford Taurus.
