What is the Ford part group number for the door latch in this diagram?

The door latch assembly is labeled 21812 in both the main view and the latch detail view.

Which part in the diagram has a stated year applicability?

Part 21872 is noted with '(1990/1993)', indicating it applies to 1990 through 1993 models.

What fastener/clip part numbers are shown?

The diagram calls out N610128-S2, N805583-S (marked with a star), N805653-S100 (AB-328-B), 377934-S [PP-2-B], N805995-S100 (AS-19-C), and 388047-S101.

What lock rod and linkage part numbers are identified?

Rods and links shown include 21818, 21850, 21940, 21952, 21978, 219A38, and 218A42.

What is the diagram's reference number and date?

The diagram is marked P-25263 with the date 8/17/1998.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “SHO”/ Photo supermotors.net/registry/media/911186

1990-1993 Ford Taurus SHO Door Latch & Lock Rod Exploded Parts Diagram

Exploded diagram of car door latch and lock assembly with numbered part callouts

‹ ›

Exploded parts diagram of a vehicle door latch, lock cylinder, and striker assembly with numbered component callouts.

AI caption March 2012 · Photo 4879 of 5000

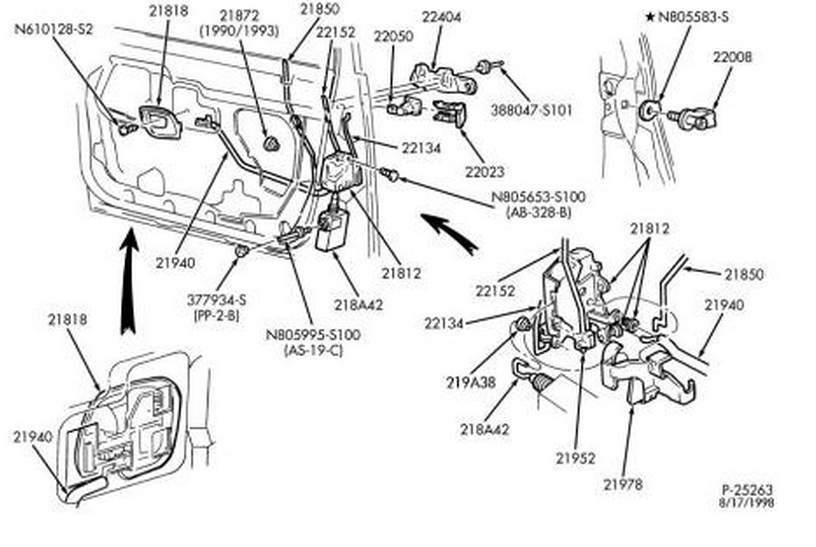

This is a Ford exploded parts diagram (reference P-25263, dated 8/17/1998) showing the front door lock, latch, and handle hardware assembly. The diagram presents three views: an overall door shell view with the interior of the door showing routing of lock rods and cables, a lower-left detail of the inner door panel area, and a right-side detail of the door latch mechanism assembly. Callouts identify base part group numbers including the door latch (21812), latch rods/links (21818, 21850, 21872 noted as 1990/1993 applicability, 21940, 21952, 21978, 219A38, 218A42), lock cylinder area components (22050, 22134, 22152), exterior handle hardware (22404, 22023, 22008), and door check (388047-S101). Fastener and clip part numbers shown include N610128-S2, N805583-S (starred), N805653-S100 (AB-328-B), 377934-S [PP-2-B], and N805995-S100 (AS-19-C). Arrows indicate orientation/installation direction. A reader can use this diagram to identify Ford part group numbers for door latch, lock rods, handles, and associated fasteners when ordering replacement parts or reassembling the door lock system. The only stated year applicability is the '(1990/1993)' note on part 21872.
