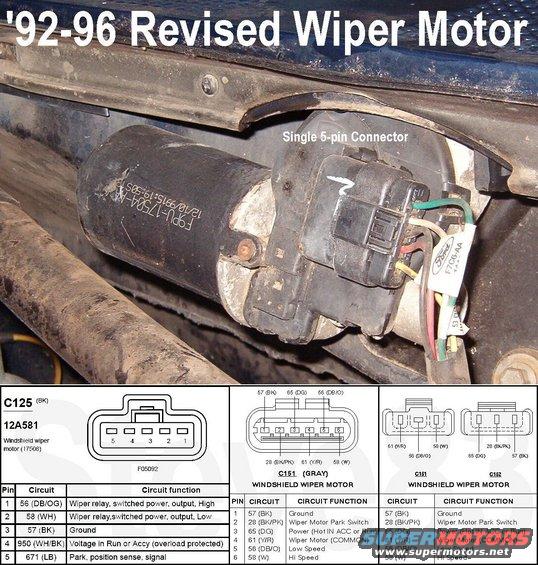

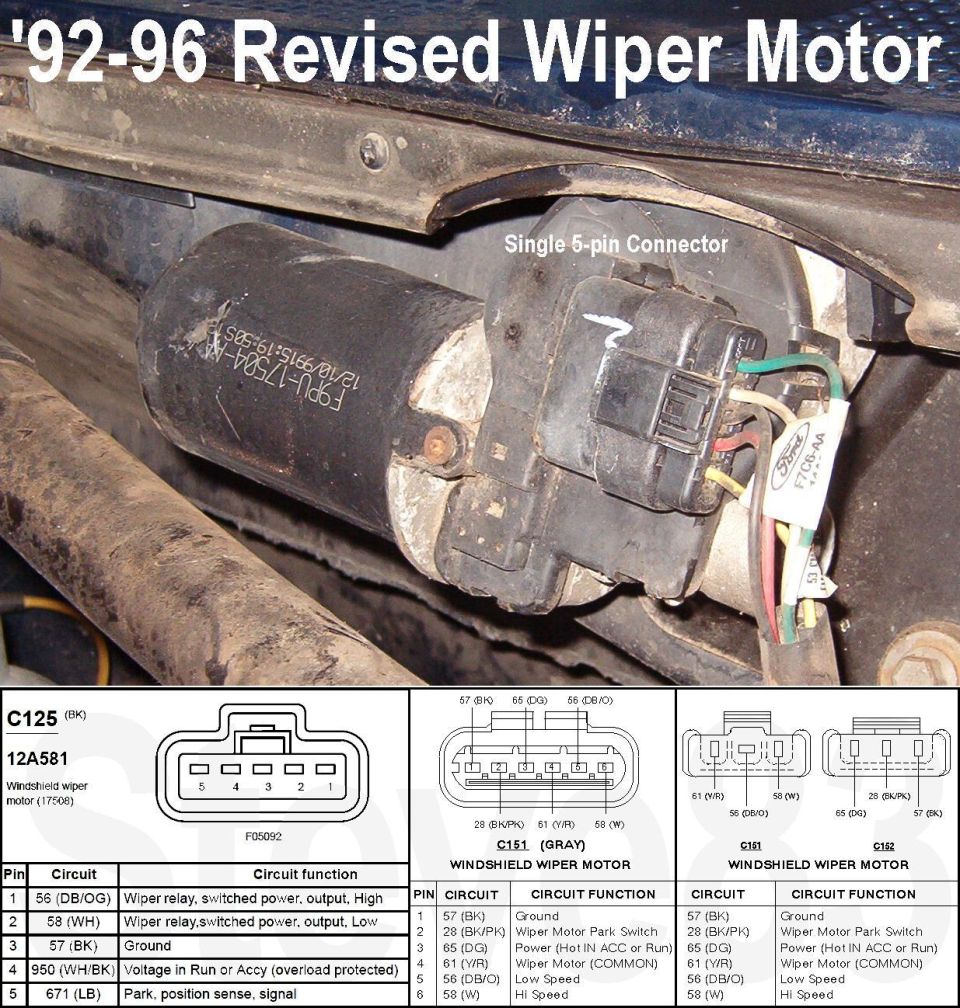

![Revised single-connector Wiper Motor
ERROR - this motor is only a revision for '92-94 trucks; it's standard for '95-96 (& '97 >8500GVWR)
[url=https://www.amazon.com/dp/B00130TAI4/]Motorcraft Wiper Motor WM-708RM[/url]
Two 3-pin connectors were combined into this 5-pin by merging the ground wires. A 6-pin connector was also superceded by the 5-pin. Retrofit 5-pin connectors have non-OE colors, so observe pin locations.
Old -> New
R or DG - > Wh/Bk or Wh (pin 4)
Bk/Pk -> LB or DG (pin 5)
DB/Or -> Wh or R (pin 2)
Wh -> DB/Or or Y (pin1)
Bk with Y/R -> Bk (pin3)
See also:
