Fuse panel chart listing fuse locations, amp ratings and protect…

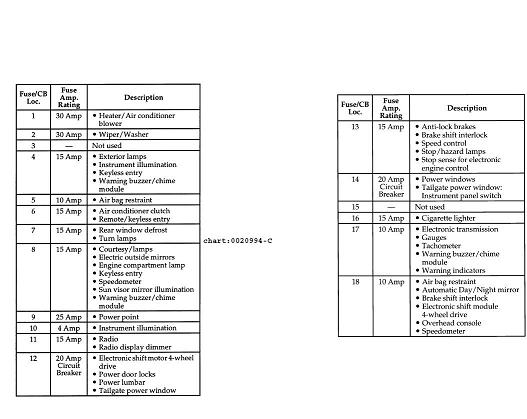

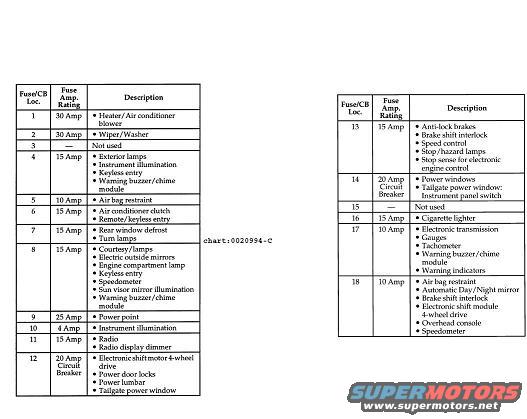

Scanned fuse panel chart (chart 0020994-C) listing fuse/circuit-breaker locations 1 through 18 with amperage ratings and the circuits they protect. Entries include a 30-amp heater/air conditioner blower, 15-amp air bag restraint, 25-amp power point, 20-amp circuit breakers for the electronic shift motor four-wheel drive and power windows, and a 15-amp cigarette lighter.
