Ford Bronco Fuses, Circuit Breakers & Light Bulb Chart - Owner Manual Specs

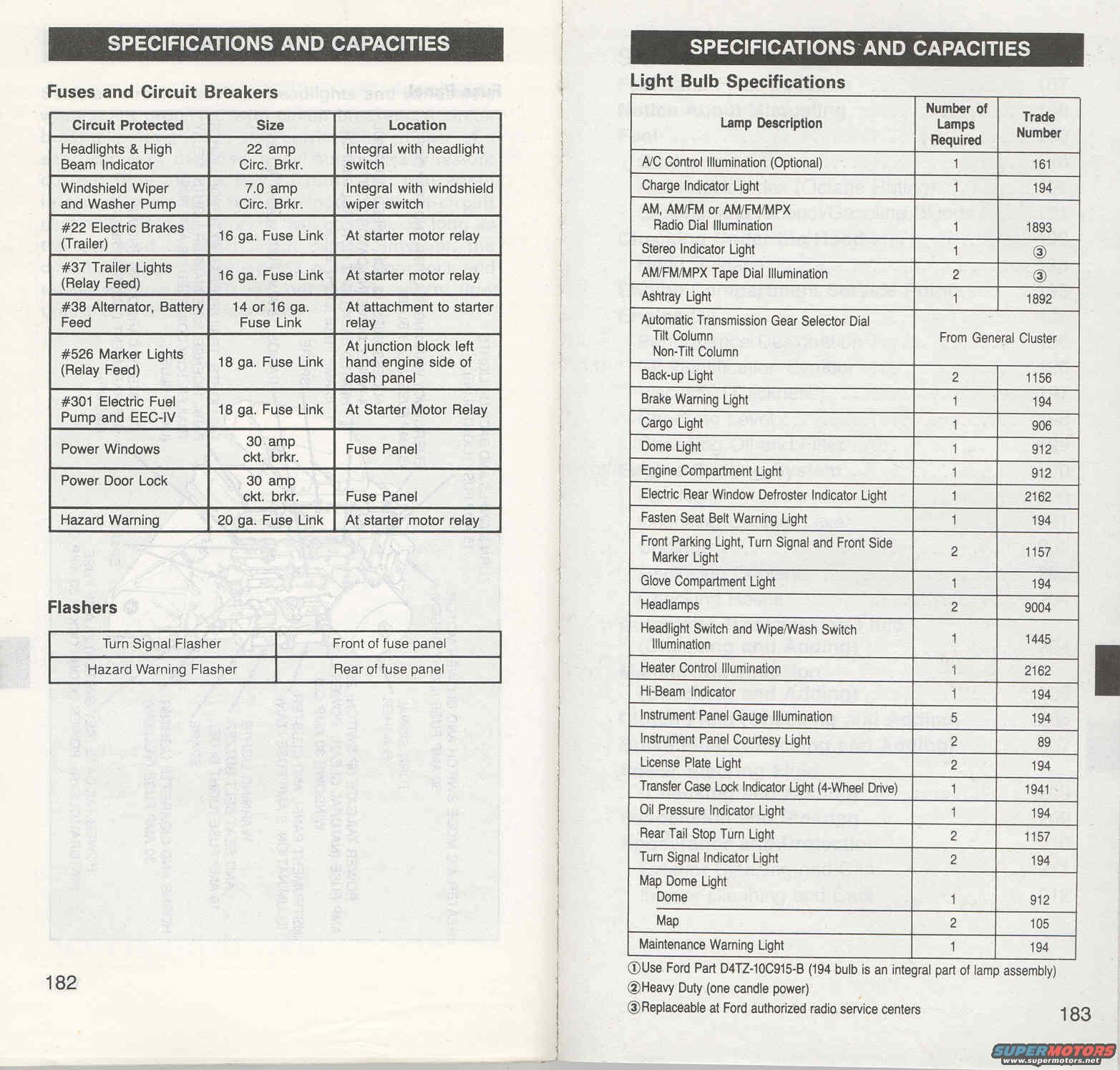

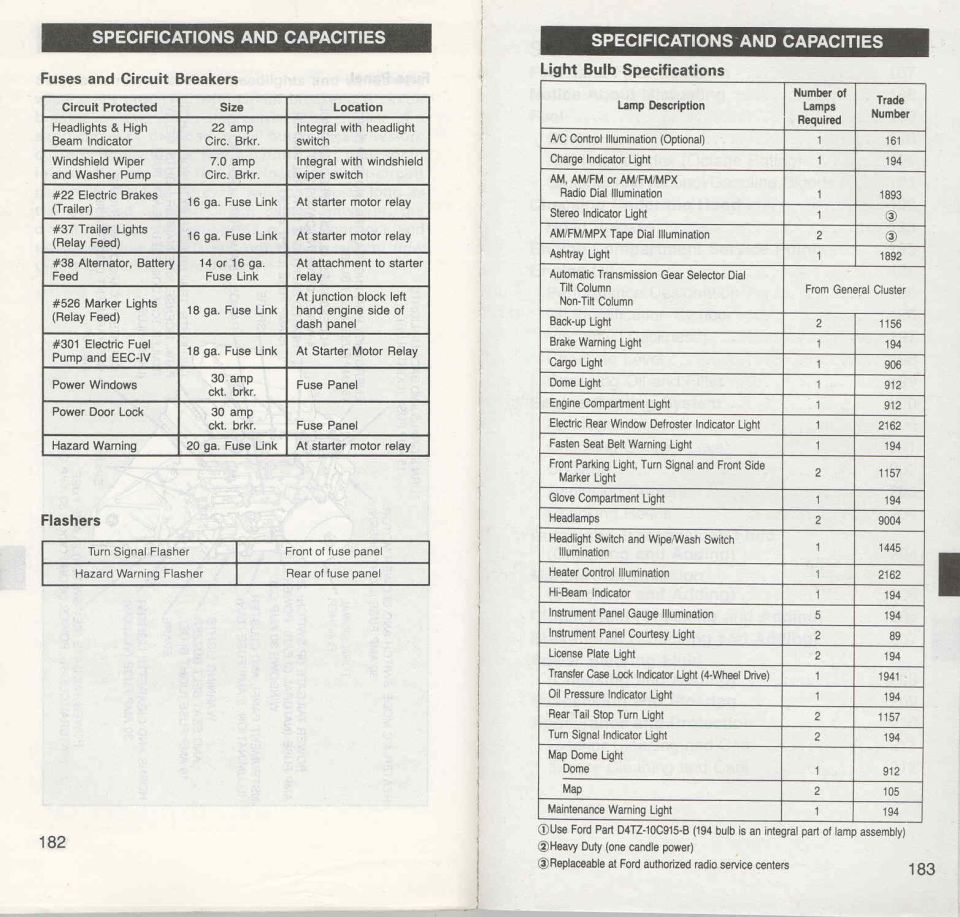

This two-page scan from a Ford owner manual (pages 182-183, "Specifications and Capacities") covers fuses/circuit breakers, flashers, and light bulb specifications for a Ford Bronco. Page 182 lists circuit breakers integral with switches (22 amp headlight/high beam breaker in the headlight switch, 7.0 amp wiper/washer breaker in the wiper switch), fusible links located at the starter motor relay or junction block for circuits such as #22 electric trailer brakes, #37 trailer lights, #38 alternator/battery feed, #526 marker lights, #301 electric fuel pump and EEC-IV, and the hazard warning circuit, plus 30 amp circuit breakers in the fuse panel for power windows and power door locks. It also gives flasher locations: turn signal flasher at the front of the fuse panel and hazard flasher at the rear. Page 183 provides a full light bulb specification table showing lamp description, quantity, and trade number for every bulb from headlamps (9004) and park/turn lamps (1157) to instrument, dome, cargo, and indicator lamps (194, 912, 906, 1156, 2162, etc.), with footnotes including Ford part D4TZ-10C915-B and a note that stereo/tape indicator bulbs are replaceable at Ford authorized radio service centers.
