1996 Ford Bronco Interior Fuse Box Diagram - Fuse Panel Location Layout

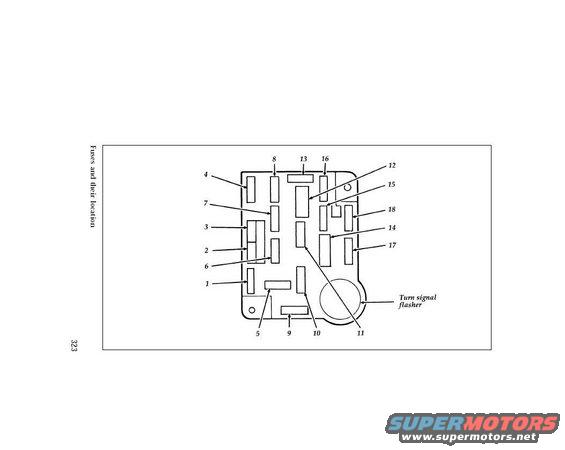

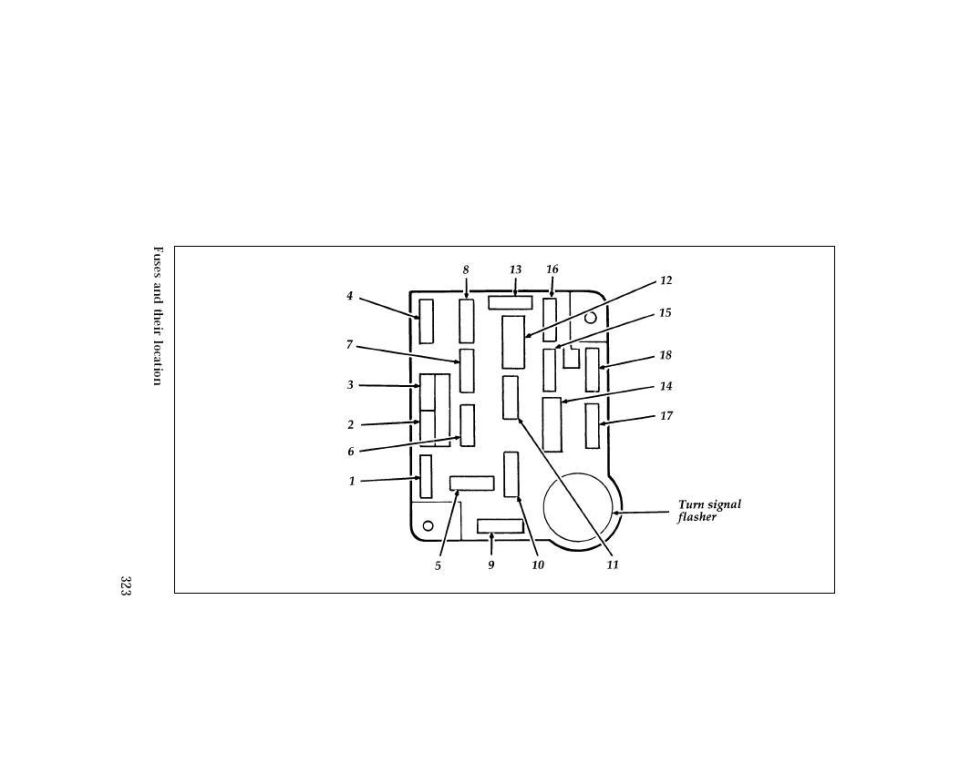

This document is a scanned page (page 323) from an owner's manual or reference guide showing a fuse panel layout diagram, titled "Fuses and their location." The diagram depicts the physical layout of an interior fuse box with 18 numbered fuse positions (labeled 1 through 18), each indicated by an arrow pointing to a rectangular fuse slot on the panel. Fuse positions 4, 8, 13, and 16 are along the top; positions 12, 15, 18, 14, and 17 are on the right side; positions 7, 3, 2, 6, and 1 are on the left side; and positions 5, 9, 10, and 11 are along the bottom. A large round component in the lower-right corner of the panel is labeled "Turn signal flasher." The page contains only the diagram and position numbers — no fuse amperage ratings, circuit descriptions, or legend table are included on this page (that information would presumably appear on an adjacent page). The document was uploaded as a fuse/relay chart for a 1996 Ford Bronco, and the layout is consistent with that application, though the page itself does not state a year, make, or model.
