Ford Bronco/F-150 Engine Compartment Fuse & Maxi-Fuse Chart - Positions A-P

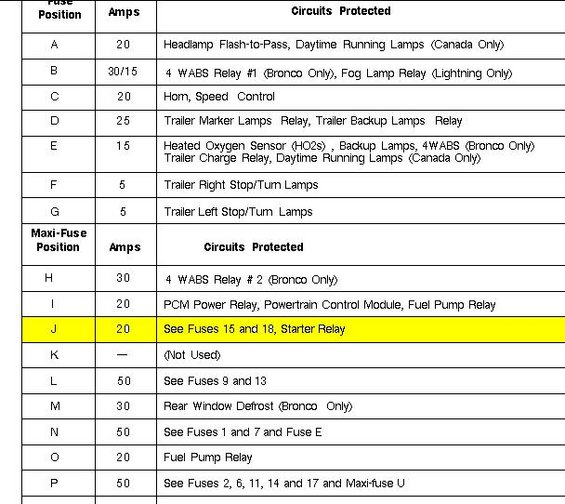

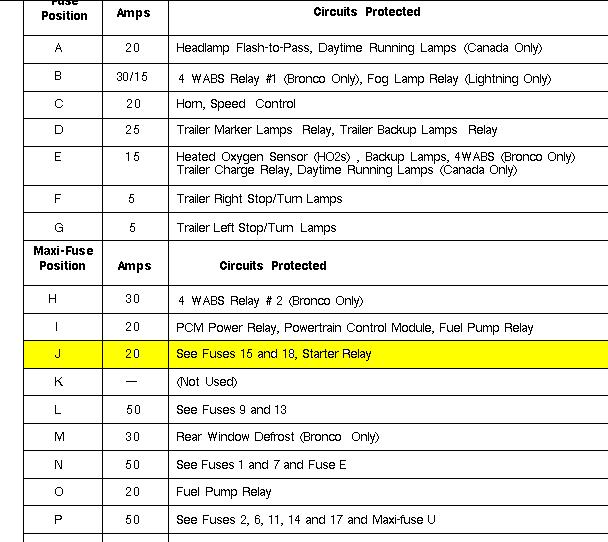

This document is a fuse and maxi-fuse description chart, apparently for the engine compartment power distribution box of a Ford Bronco/F-Series truck. The upper table lists fuse positions A through G with amperage ratings (5 to 30/15 amps) and the circuits each protects, including headlamp flash-to-pass, daytime running lamps (Canada only), 4WABS relay #1 (Bronco only), fog lamp relay (Lightning only), horn and speed control, trailer marker and backup lamp relays, heated oxygen sensor (HO2s), backup lamps, trailer charge relay, and trailer right/left stop-turn lamps. The lower table lists maxi-fuse positions H through P (position K not used) with ratings from 20 to 50 amps, protecting circuits such as 4WABS relay #2 (Bronco only), PCM power relay and powertrain control module, fuel pump relay, starter relay, rear window defrost (Bronco only), and several positions that feed groups of interior fuse panel fuses (e.g., 'See Fuses 9 and 13'). A reader can use this chart to identify which fuse or maxi-fuse to check when troubleshooting the listed circuits and to confirm the correct amperage rating for replacement. Some entries are model-specific (Bronco Only, Lightning Only, Canada Only). The document itself does not state a model year.
