How do I check the automatic transmission fluid level according to this diagram?

Check with the engine running and the transmission in Park. Fluid should be at the operating-temperature mark at 66° to 77°C (150° to 170°F), or at the room-temperature mark at 21° to 35°C (70° to 95°F). There is also a DO NOT DRIVE mark on the dipstick.

What air filter part number is shown?

The air filter is FA-1046; the element should be replaced at the recommended interval.

What oil filter is specified and how should it be installed?

The callout lists oil filter FL-820 (the illustration shows a Motorcraft FL1A), to be replaced at the recommended interval, and the gasket should be coated with engine oil.

How do I check the hydraulic clutch fluid level?

Check the fluid level in the hydraulic clutch fluid reservoir with the diaphragm removed.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877811

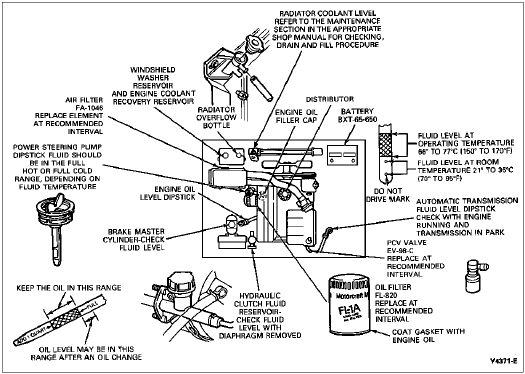

1996 Ford Bronco Engine Lubrication & Fluid Check Points Diagram

Underhood maintenance diagram showing fluid check points, filters, oil filler and dipstick locations

‹ ›

Underhood maintenance diagram labeling fluid level check points, air and oil filters, dipsticks, PCV valve and service intervals.

AI caption July 2011 · Photo 101 of 224

This document is a labeled engine-compartment lubrication and fluid-check points diagram, uploaded as applying to a 1996 Ford Bronco. It shows an engine illustration with callouts identifying the locations of key service items: the radiator coolant level (with a note to refer to the shop manual maintenance section for checking, drain and fill procedures), windshield washer/coolant recovery reservoir, radiator overflow bottle, engine oil filler cap, distributor, battery (BXT-65-650), air filter (FA-1046), power steering pump dipstick (fluid should be in the FULL HOT or FULL COLD range depending on temperature), engine oil level dipstick, brake master cylinder, hydraulic clutch fluid reservoir (check level with diaphragm removed), PCV valve (EV-98-C), and oil filter (FL-820, illustrated as a Motorcraft FL1A) with a note to coat the gasket with engine oil. The automatic transmission dipstick detail explains checking fluid with the engine running in Park, with fluid level marks for operating temperature 66°–77°C (150°–170°F), room temperature 21°–35°C (70°–95°F), and a DO NOT DRIVE mark. An engine oil dipstick inset shows the normal oil range and notes oil may read higher after an oil change. Diagram reference number V4371-E appears at the bottom.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do I check the automatic transmission fluid level according to this diagram?: Check with the engine running and the transmission in Park. Fluid should be at the operating-temperature mark at 66° to 77°C (150° to 170°F), or at the room-temperature mark at 21° to 35°C (70° to 95°F). There is also a DO NOT DRIVE mark on the dipstick.
What air filter part number is shown?: The air filter is FA-1046; the element should be replaced at the recommended interval.
What oil filter is specified and how should it be installed?: The callout lists oil filter FL-820 (the illustration shows a Motorcraft FL1A), to be replaced at the recommended interval, and the gasket should be coated with engine oil.
How should the power steering fluid level read?: The power steering pump dipstick fluid should be in the FULL HOT or FULL COLD range, depending on fluid temperature.
How do I check the hydraulic clutch fluid level?: Check the fluid level in the hydraulic clutch fluid reservoir with the diaphragm removed.
