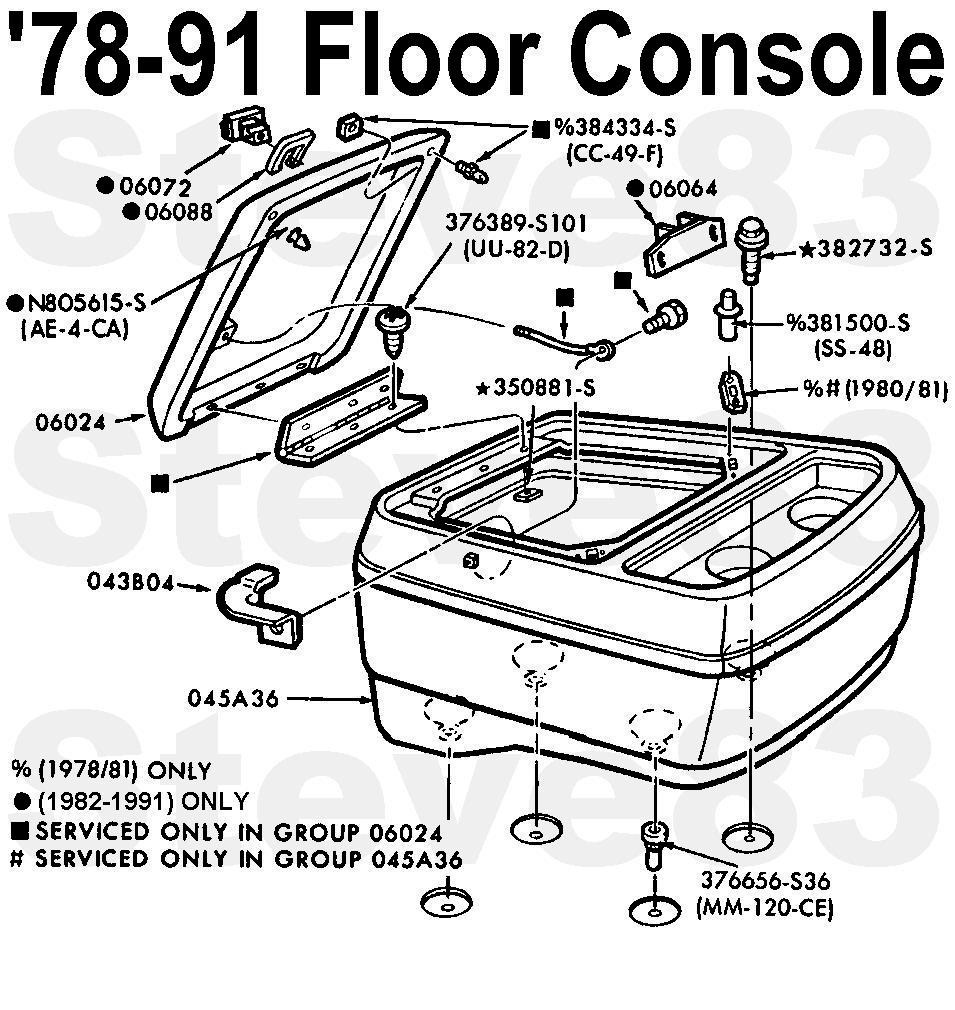

'78-91 floor console exploded parts diagram

'78-91 Floor Console

Note that '78-81 consoles use 2 snap-pin latches (N805615-S); later consoles use a lid made for an '80-86 glove box latch (06072/06064) (optionally locking). '87-91 have slightly deeper cup wells, and slightly different contours for the bottom to match the changes in the floor contours.

. .
