Underbody Airflow & Diffuser Downforce Diagram - Ground Effect Aerodynamics

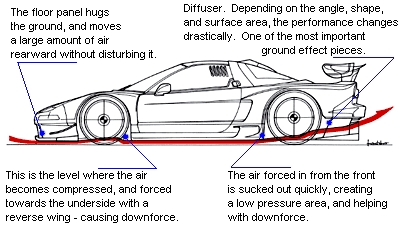

This document is an annotated side-view illustration of a race car (a low, wide-bodied sports coupe with a large rear wing) explaining how air flows underneath the vehicle to create downforce. Red lines trace the airflow path from the front splitter, along the flat floor, and out through the rear diffuser. Four callout notes explain the aerodynamic principles: (1) the floor panel hugs the ground and moves a large amount of air rearward without disturbing it; (2) the diffuser's performance changes drastically depending on its angle, shape, and surface area, making it one of the most important ground effect pieces; (3) a marked level indicates where air becomes compressed and is forced toward the underside like a reverse wing, causing downforce; and (4) air forced in at the front is sucked out quickly, creating a low pressure area that helps generate downforce. A reader learns the basic concepts of ground effect aerodynamics — flat underbody airflow management, diffuser function, air compression under the car, and low-pressure downforce generation. The document contains no part numbers, vehicle model names, years, or specifications; it is purely a conceptual aerodynamics schematic.
