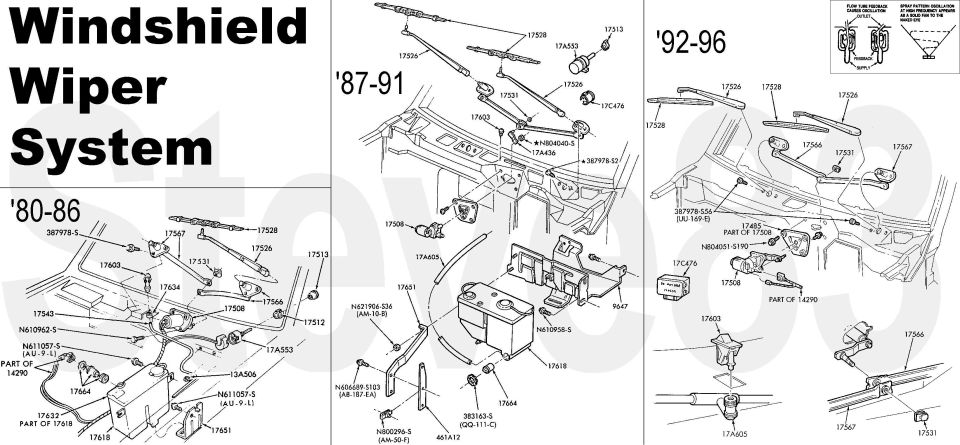

'80-96 Wipers (diesel spray tank is on right wheelwell)
IF THE IMAGE IS TOO SMALL, click it.

ERROR: the J-hook wiper arms (F4TZ17526A) shown for '92-96 are actually only used on '94-96; '92-93 use the same arm as '80-91 (E7TZ17526B).
F87Z17528AB Blade
F5HZ17508A Motor (single connector)Ford EOAZ17664A or EOPF-17D443-AA, or MotorCraft WG30
F6TZ-17566-AB '87-97 Transmission right Dorman 602307 MADE WRONG - read reviews before buying
F6TZ-17567-AA '87-97 Transmission left Dorman 602308 MADE WRONG - read reviews before buying
E3TZ-17531-A Transmission clip
YC2Z-17C476-A Wiper Control Module (WCM Ford YC2Z17C476A or MotorCraft SW7665)
E7TZ-17618-B Reservoir (FO1288170)
E7TZ17651A Reservoir support
EOAZ-17664-A Pump motor Motorcraft WG30
F2TZ-17603-A Spray nozzle

. . . . .
