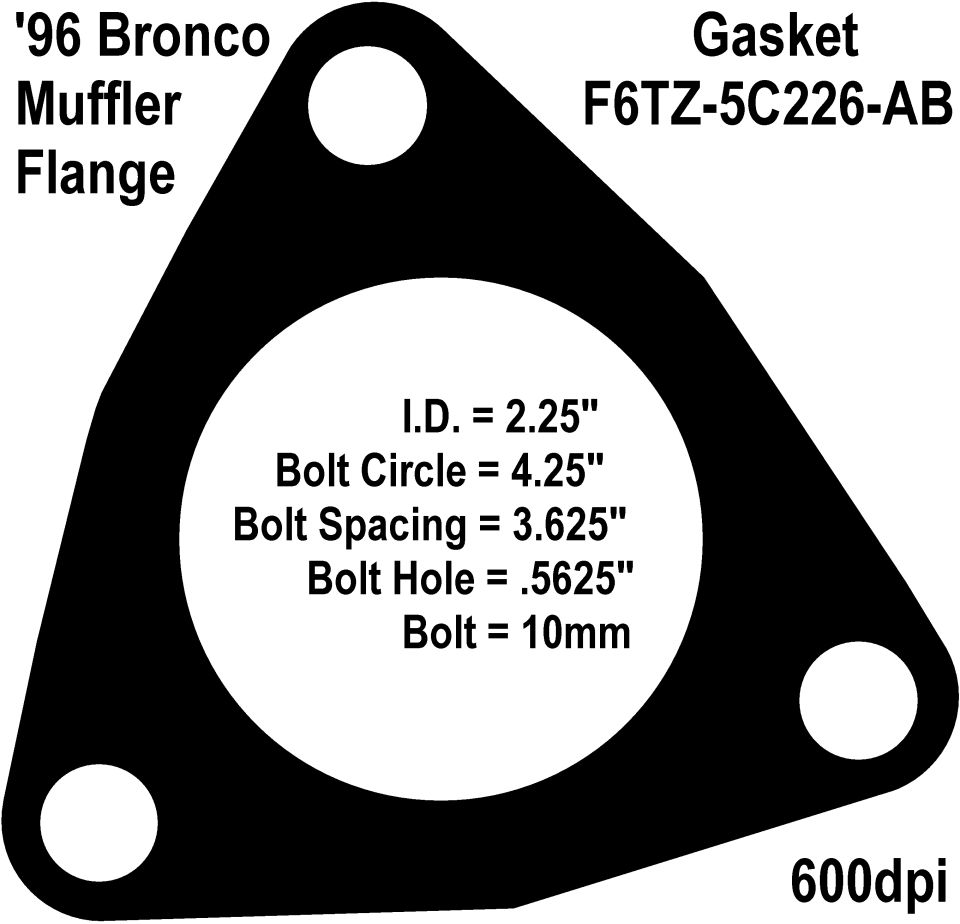

'96 Bronco muffler flange gasket F6TZ-5C226-AB template with bol…

'96 Bronco Catalyst-to-Muffler Flange requires obsolete gasket F6TZ-5C226-AB; not available from Ford, NAPA, Advance, CarQuest, O'Reilly, Walker. The bolt circle is MUCH larger than any other 3-bolt 2.25" flange.

.

To print this in 1:1 scale, click the image to be sure you're on the ORIGINAL-SIZE page. Save it, then print at 600dpi.

Part of 1980-1986 Ford Bronco Blueprints

Owner caption July 2012 · Photo 4471 of 6546
