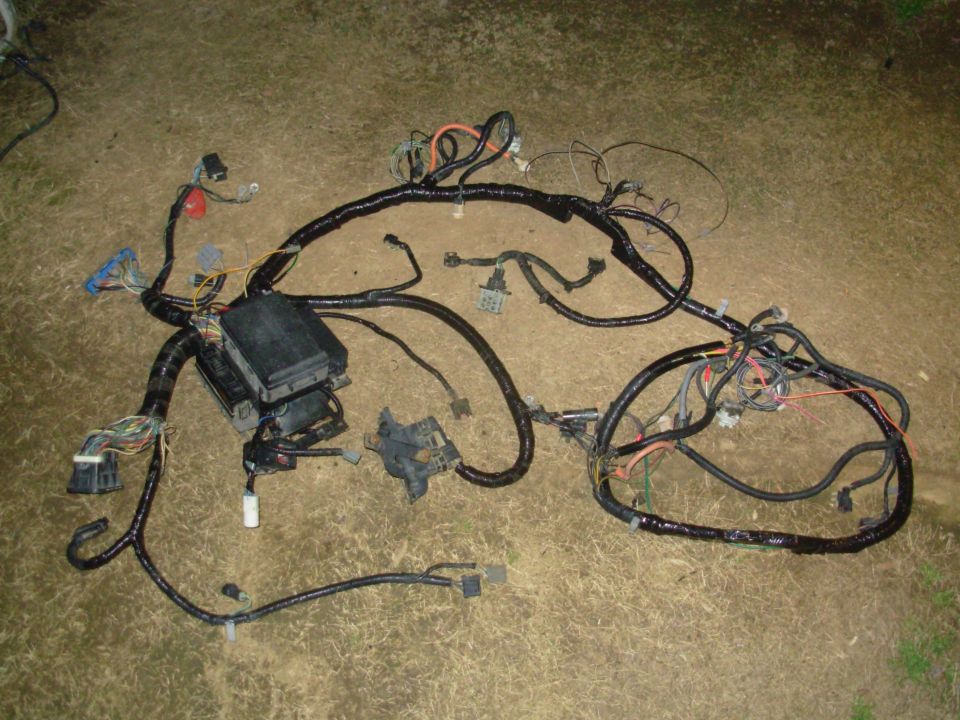

33harnessdone.jpg Taped up, and ready to throw in. The relay box on the front (right) of the fuse block is for the e-fans. Their connectors & resistor are in the center.
33harnessdone.jpg | Hits: 1252 | Posted on: 4/13/13 | View original size (2.56 MB)

Taped up, and ready to throw in. The relay box on the front (right) of the fuse block is for the e-fans. Their connectors & resistor are in the center.
