Ford Thermactor Air Control & Check Valve Location Diagram - Rear Engine View

Rear view engine diagram showing air control valve and two check valves
Rear view engine diagram showing air control valve and two check valvesOriginal file
Rear view engine diagram showing air control valve and two check valves

Reference · 1987-1991 BroncoAll 111 schematics

1990 Ford Bronco 4.9L Thermactor Air Pump & Check Valve Location Diagram 1990 Ford Bronco 4.9L Thermactor Air Pump, Bypass & Check Valve Diagram Ford 5.0L Thermactor Air Pump & Check Valve Hose Routing Diagram (A7746-E) Ford Thermactor Air Control & Check Valve Location Diagram - Rear Engine View Ford 5.0L Thermactor Air Pump, Bypass Valve & Silencer Diagram - 1990 Bronco 1990 Ford Bronco 4.9L MT Thermactor Air Pump & Check Valve Diagram (A13526-A) 1990 Ford Bronco 4.9L Thermactor Air System Diagram - Air Pump, Bypass & Check Valve 1990 Ford Bronco 5.8L Thermactor Air Pump & Bypass Valve Location Diagram Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Integral Gear Power Steering Fluid Flow Diagram - Ford Bronco Gear Box Schematic 111schematics1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Secondary air schematic (rear view) showing the air control valve and check-valve locations on the engine.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 1552 of 1787

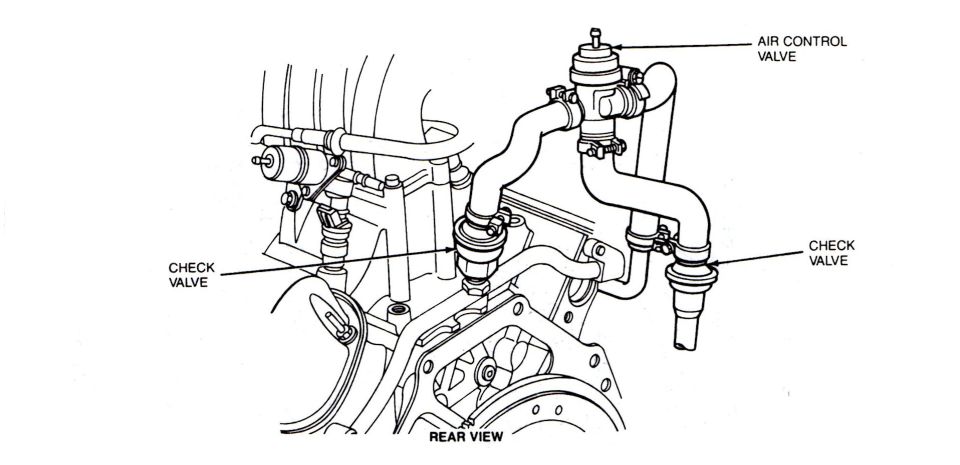

This document is a black-and-white line-art schematic drawing showing the rear view of an engine's Thermactor (secondary air injection) plumbing. Three components are called out with arrows: an AIR CONTROL VALVE mounted at the top of the assembly with hoses attached by clamps, and two CHECK VALVES, one located low near the center of the engine (threaded into a fitting near the rear of the intake/cylinder head area) and one on the right side connected to a hose running down from the air control valve. The drawing shows the routing of the air hoses from the air control (diverter) valve down to the check valves, as well as surrounding engine detail such as fuel injectors, fuel rail fittings, the rear of the intake manifold, and the transmission bellhousing bolt flange. The caption 'REAR VIEW' indicates the perspective is from the back of the engine. A reader can learn where the Thermactor air control valve and both check valves are physically located and how the secondary air hoses are routed at the rear of the engine. No part numbers, torque specifications, year, or model information appear in the drawing itself; the vehicle application (1990 Ford Bronco) comes from the uploader's attribution.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the air control valve located in this diagram?
The air control valve is shown at the top of the assembly at the rear of the engine, with hoses clamped to it routing down to the check valves.
How many check valves are shown in this Thermactor diagram?
Two check valves are labeled: one low near the center rear of the engine and one on the right side, connected by hose to the air control valve.
From what perspective is this drawing shown?
The drawing is labeled 'REAR VIEW', meaning it depicts the components as seen from the rear of the engine.
Does this diagram list any part numbers or torque specs?
No. The drawing only contains component callouts (Air Control Valve, Check Valve x2) and the caption 'Rear View'; no part numbers or specifications appear.
