Ford Bronco & F-Series Rear Air Bag Sensor Bracket Diagram - Part Numbers & Torque

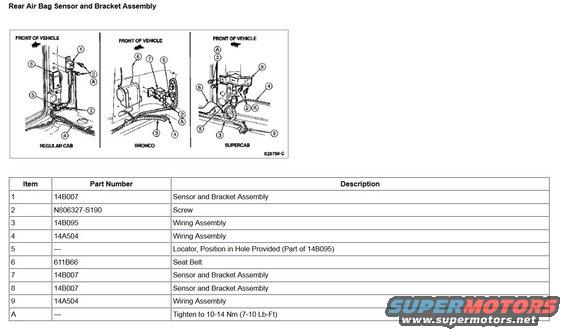

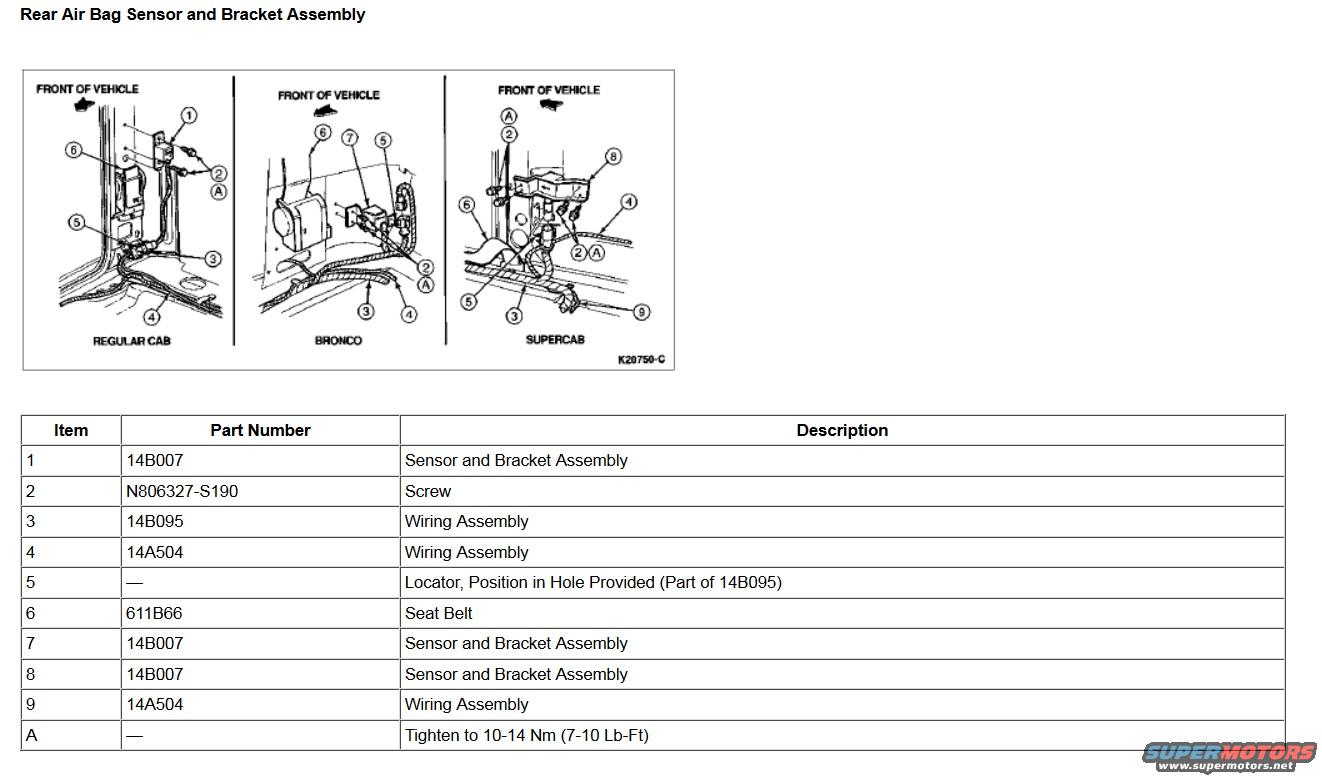

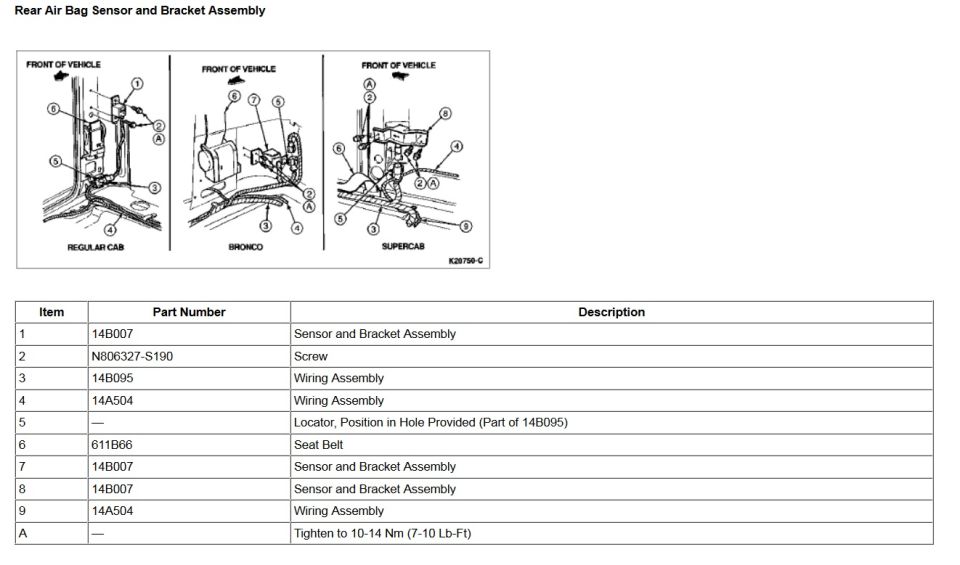

This document is an exploded parts diagram and legend for the Rear Air Bag Sensor and Bracket Assembly on Ford trucks, covering three cab configurations: Regular Cab, Bronco, and SuperCab. Each of the three illustrated panels shows the sensor location relative to the front of the vehicle, with numbered callouts keyed to a parts table. The table lists the sensor and bracket assembly (part 14B007, used in all three configurations), a mounting screw (N806327-S190), two wiring assemblies (14B095 and 14A504), a locator that positions in a provided hole (part of 14B095), and the seat belt (611B66). A torque specification callout "A" instructs tightening to 10-14 Nm (7-10 Lb-Ft), which applies to the screw fastening the sensor bracket. The diagram carries the Ford illustration reference number K20750-C. From this document a reader can learn where the rear air bag (impact) sensor mounts in each cab style, which part numbers are needed for replacement, how the wiring assemblies route near the sensor, and the correct fastener torque. No model year, engine, or vehicle line text is stated beyond the cab-style labels, though "Bronco" and "SuperCab" indicate Ford F-Series/Bronco applicability.
