FMS MAF Installation Instructions

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

10 photos
← Back to this vehicle

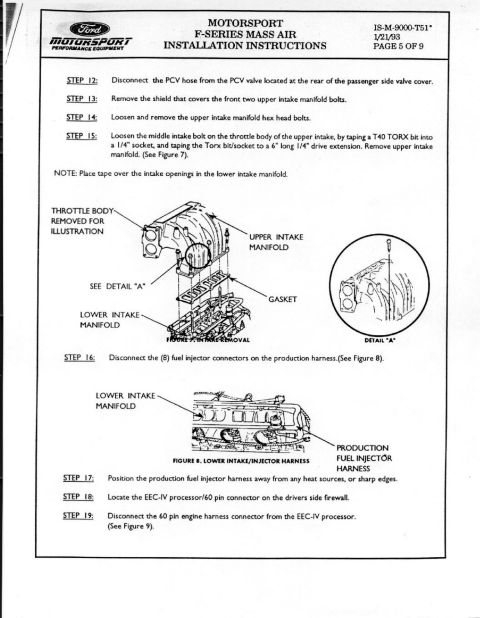

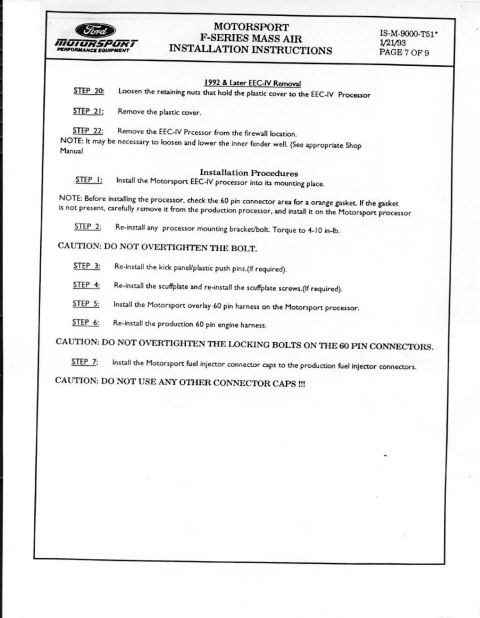

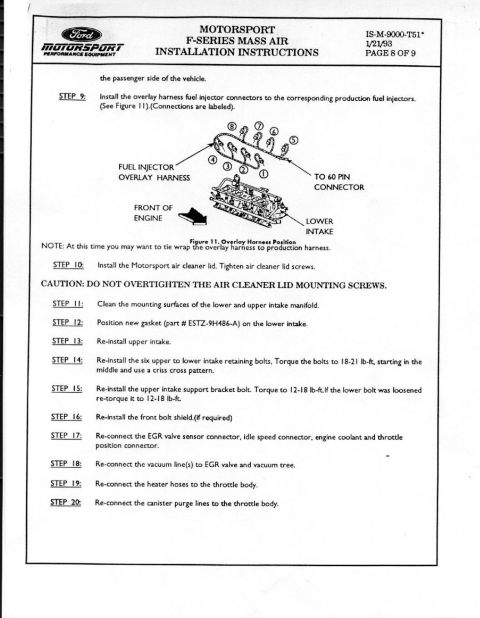

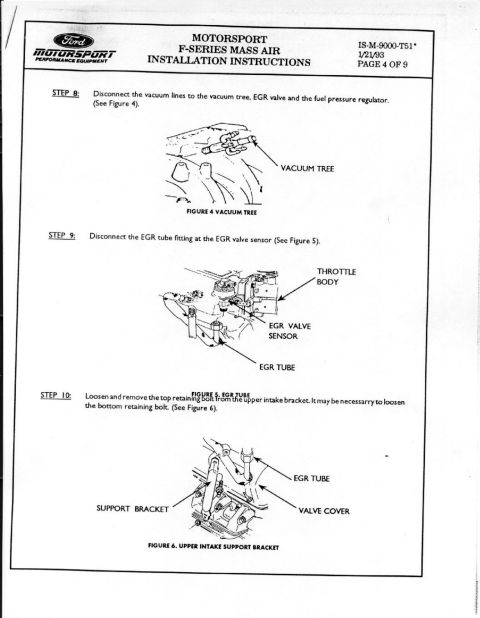

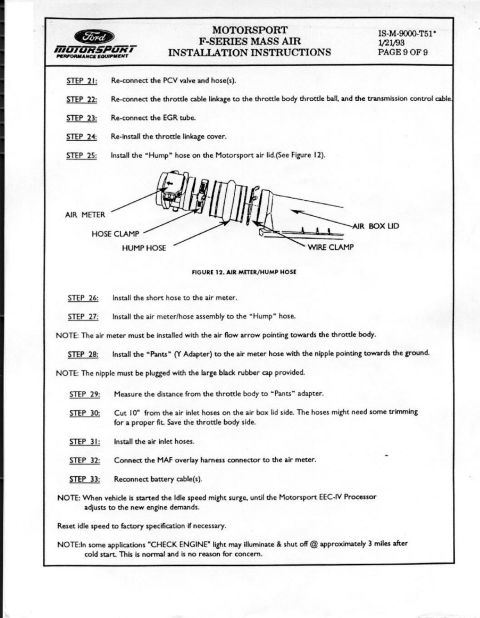

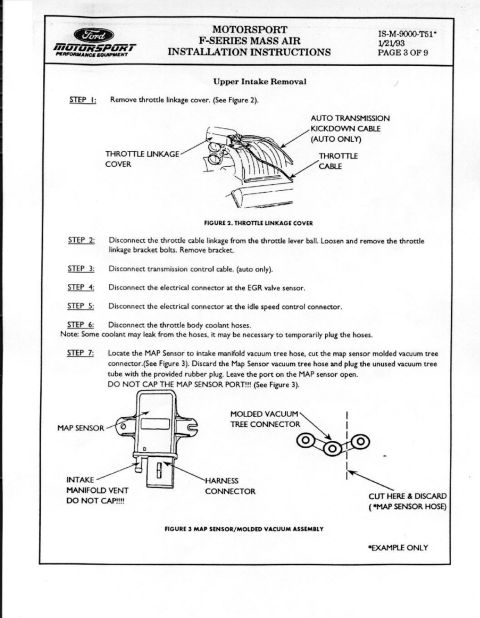

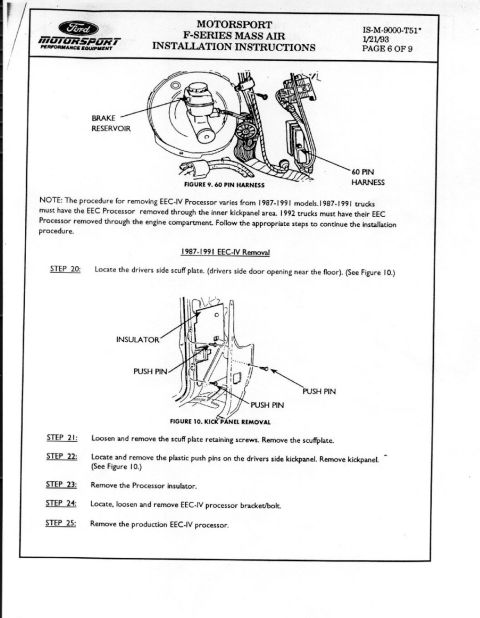

1990 Ford Bronco - Ford Motorsport/SVO Mass Air conversion kit install manual (M-9000-T51, covers T50/T52/T53) page 1: converts EEC-IV speed-density F-Series… 1990 Ford Bronco - Page 2 of the Ford Motorsport Mass Air install: tools required (T40 Torx, torque wrench) and parts list including EEC-IV processor, air met… 1990 Ford Bronco - Page 3 of the Ford Motorsport Mass Air install: upper intake removal steps, disconnecting throttle/kickdown cables, EGR and IAC connectors,… 1990 Ford Bronco - Page 4 of the Ford Motorsport Mass Air install: disconnecting vacuum-tree lines to EGR valve and fuel pressure regulator, removing the EGR… 1990 Ford Bronco - Page 5 of the Ford Motorsport Mass Air install: remove upper intake manifold (T40 Torx in 1/4-in socket on 6-in extension), disconnect the… 1990 Ford Bronco - Page 6 of the Ford Motorsport Mass Air install: 60-pin harness and 1987-1991 EEC-IV processor removal through the driver's-side kick panel… 1990 Ford Bronco - Page 7 of the Ford Motorsport Mass Air install: 1992-and-later EEC-IV removal, then installing the Motorsport processor and overlay 60-pin… 1990 Ford Bronco - Page 8 of the Ford Motorsport Mass Air install: connect overlay fuel-injector harness, install air cleaner lid, reinstall upper intake with… 1990 Ford Bronco - Page 9 (final) of the Ford Motorsport Mass Air install: reconnect PCV/EGR/throttle, install hump hose and air meter (flow arrow toward thro… 1990 Ford Bronco - Ford Racing Performance Parts idle-setting instruction sheet (IS-1850-0156): disconnect IAC, set idle via throttle stop, set TPS to 0.96-0.…
