What tools are required to install the Ford Motorsport F-Series Mass Air kit?

A 1/4" socket drive with 6" long extension, assorted sockets, assorted wrenches, a flat blade screwdriver, a Phillips screwdriver, a torque wrench, and a T40 Torx bit.

What parts are included in the Ford Motorsport F-Series Mass Air kit?

Fuel injector overlay harness, EEC-IV processor, air meter to Y adapter hose, Y adapter, air cleaner lid, air meter, fuel injector plugs, "hump" hose, and rubber plugs. The intake gasket is not supplied.

Where do I get the intake gasket for the mass air conversion?

The intake gasket is not supplied with the kit; it is available through Ford, Lincoln, Mercury dealers under part number ESTZ-9H486-A.

What is the document number and date of these instructions?

IS-M-9000-T51, dated 1/21/93, page 2 of 9.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1046696

Ford Motorsport F-Series Mass Air (MAF) Install Instructions Page 2 - Kit Parts

Ford Motorsport F-Series Mass Air install page 2 of 9: tools required and kit parts list

‹ ›

Page 2 of the Ford Motorsport Mass Air install: tools required (T40 Torx, torque wrench) and parts list including EEC-IV processor, air meter, fuel injector overlay harness; intake gasket PN E5TZ-9H486-A.

AI caption January 2015 · Photo 1696 of 1799

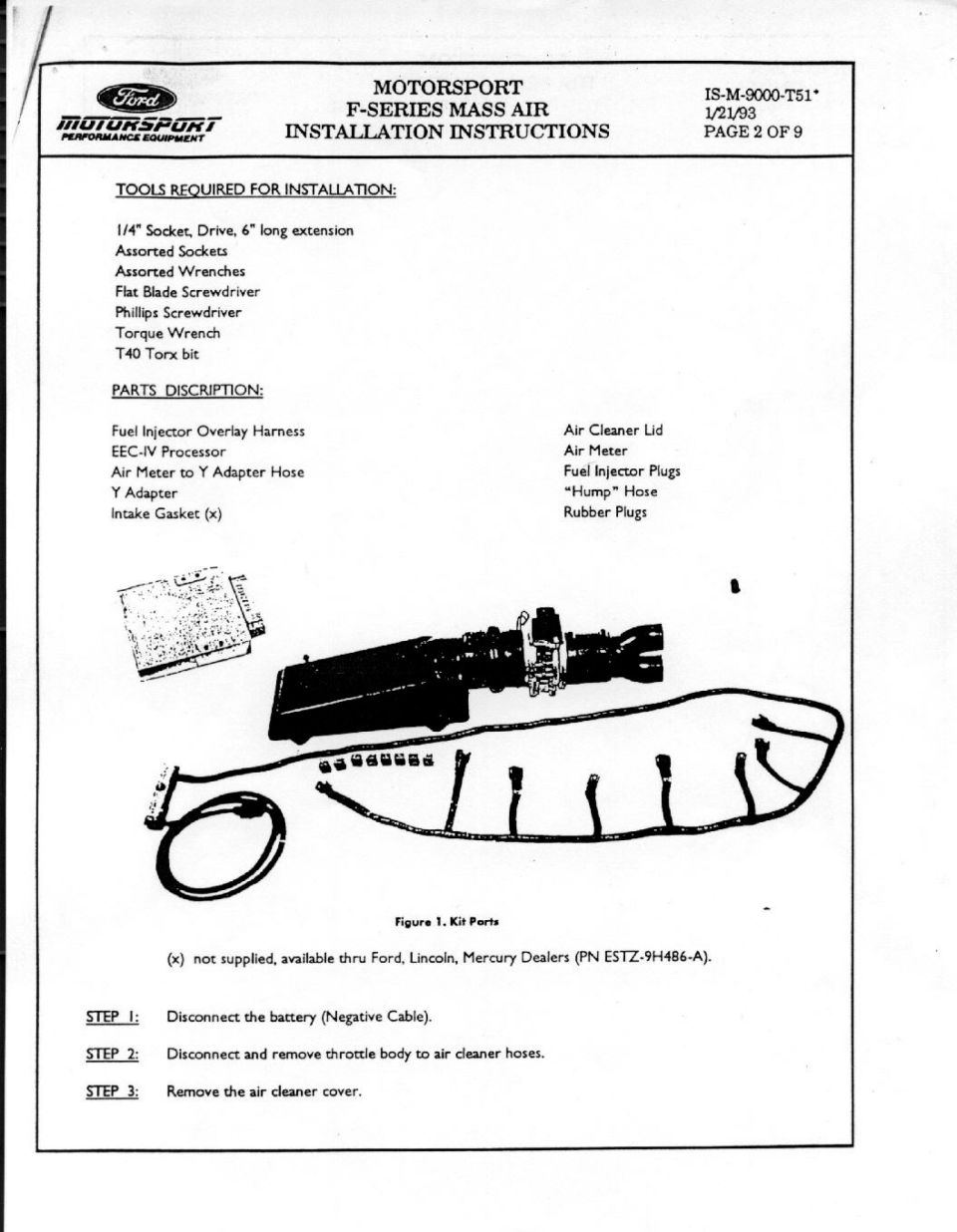

This document is page 2 of 9 of the Ford Motorsport (Performance Equipment) F-Series Mass Air installation instructions, document number IS-M-9000-T51, dated 1/21/93. It lists the tools required for installation: a 1/4" socket drive with 6" extension, assorted sockets and wrenches, flat blade and Phillips screwdrivers, a torque wrench, and a T40 Torx bit. It then provides a parts description for the mass air conversion kit, including the fuel injector overlay harness, EEC-IV processor, air meter to Y adapter hose, Y adapter, intake gasket (not supplied — available through Ford, Lincoln, Mercury dealers as PN ESTZ-9H486-A), air cleaner lid, air meter, fuel injector plugs, "hump" hose, and rubber plugs. A photograph (Figure 1. Kit Parts) shows the kit components including the processor, air meter/adapter assembly, and injector overlay harness. The page concludes with the first three installation steps: Step 1 — disconnect the battery (negative cable); Step 2 — disconnect and remove the throttle body to air cleaner hoses; Step 3 — remove the air cleaner cover. This page is part of a multi-page set covering the full Ford Motorsport mass air flow (MAF) conversion procedure for F-Series trucks and Broncos.
