What wire color feeds the rear parking, side marker, and license plate lights on this diagram?

Brown (br) wires carry power from the headlight switch to all rear parking lights, side marker lights, and license plate lights; the ground-side wires are black (bk).

What ground points are used for the rear lights?

G1001 (L.H. rear parking light), G1101 (L.H. rear side marker light), G1004 (license plate light), G1102 (R.H. rear side marker light), and G1002 (R.H. rear parking light).

Which connectors are shown in this rear lighting circuit?

Connectors C1001, C1002, C1003, C1005, C1007, C1010, and C1011 are shown along the brown feed wiring to the rear lights.

Which license plate light applies only to Flareside pickups?

One license plate light branch is boxed 'Flareside Pick Up Only,' with a brown feed and black ground wire going to ground G1004.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1979 Ford Bronco/ Photo supermotors.net/registry/media/1032635

1979 Ford Bronco & F100-F350 Rear Parking, Marker & License Light Wiring Diagram

Wiring diagram for marker and rear lights with and without trailer-tow option

‹ ›

Reference · 1978-1979 BroncoAll 116 wiring diagrams

1979 Ford Bronco & F100-F350 Backup Lights Wiring Diagram - Fuse 11 Circuit

1979 Ford Bronco F100-F350 Trailer Wiring Diagram - Trailer Circuitry & Fuses

1979 Ford Bronco Rear Lighting Wiring Diagram - Parking, Marker & License Lights

1979 Ford Bronco & F100-F350 Rear Parking, Marker & License Light Wiring Diagram

1979 Ford Bronco F100-F350 Wiring Diagram - Marker & Parking Lights (Page 15)

1979 Ford Bronco F100-F350 Headlights & Marker Lights Wiring Diagram

1979 Ford Bronco/F100-F350 Exterior Lights Wiring Location Diagram

1979 Ford Bronco F100-F350 Ignition System Wiring Diagram & Spark Test Guide

Ford Bronco Wiring Diagram - Ignition, Wiper Motor & Back-Up Light Circuits

1979 Ford Bronco Radio Connector Wiring Diagram C-530 & C-532 Pinouts

1979 Ford Bronco Radio & CB Wiring Diagram - AM/FM, Speakers, Connectors

2-Speed Taurus Electric Fan Wiring Diagram - Holley Sniper EFI Relay Schematic

116wiring diagrams1978-1979 Ford Bronco More reference

1979 Ford F-100-F-350 & Bronco Wiring Manual - Intro, Wire Color Codes, Contents

Manual page

1979 Ford Bronco/F100-F350 Brake & Transmission Vacuum Supply Troubleshooting

Service procedure

1979 Ford Bronco F100-F350 Power Distribution Diagram - Charging & Ignition

Schematic

1979 Ford Bronco & F100-F350 Vacuum Distribution Diagram - Hose Routing

Vacuum routing

1979 Ford Bronco & F100-F350 Fuse Block Diagram - Fuse Positions & Amp Ratings

Fuse chart

Brochure

Exploded parts

Early Ford Bronco VIN data plate with U150 model code, stamped on a faded maroon door edge

Spec plate

1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly Screenshot

Blueprint

Torque spec

Wiring diagram showing marker and rear light circuits with and without the trailer-tow option and headlight switch.

Part of 1978-1979 Ford Bronco Wiring Diagrams

AI caption August 2014 · Photo 16 of 48

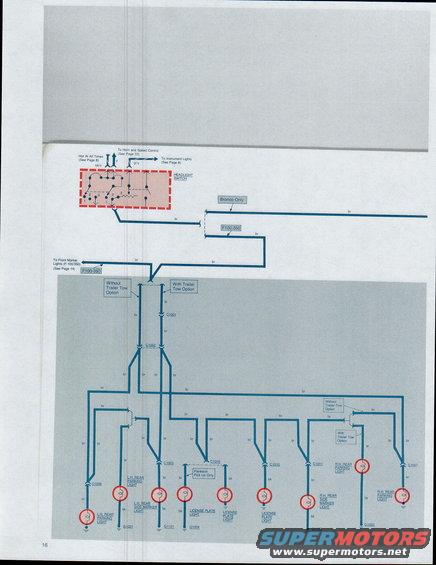

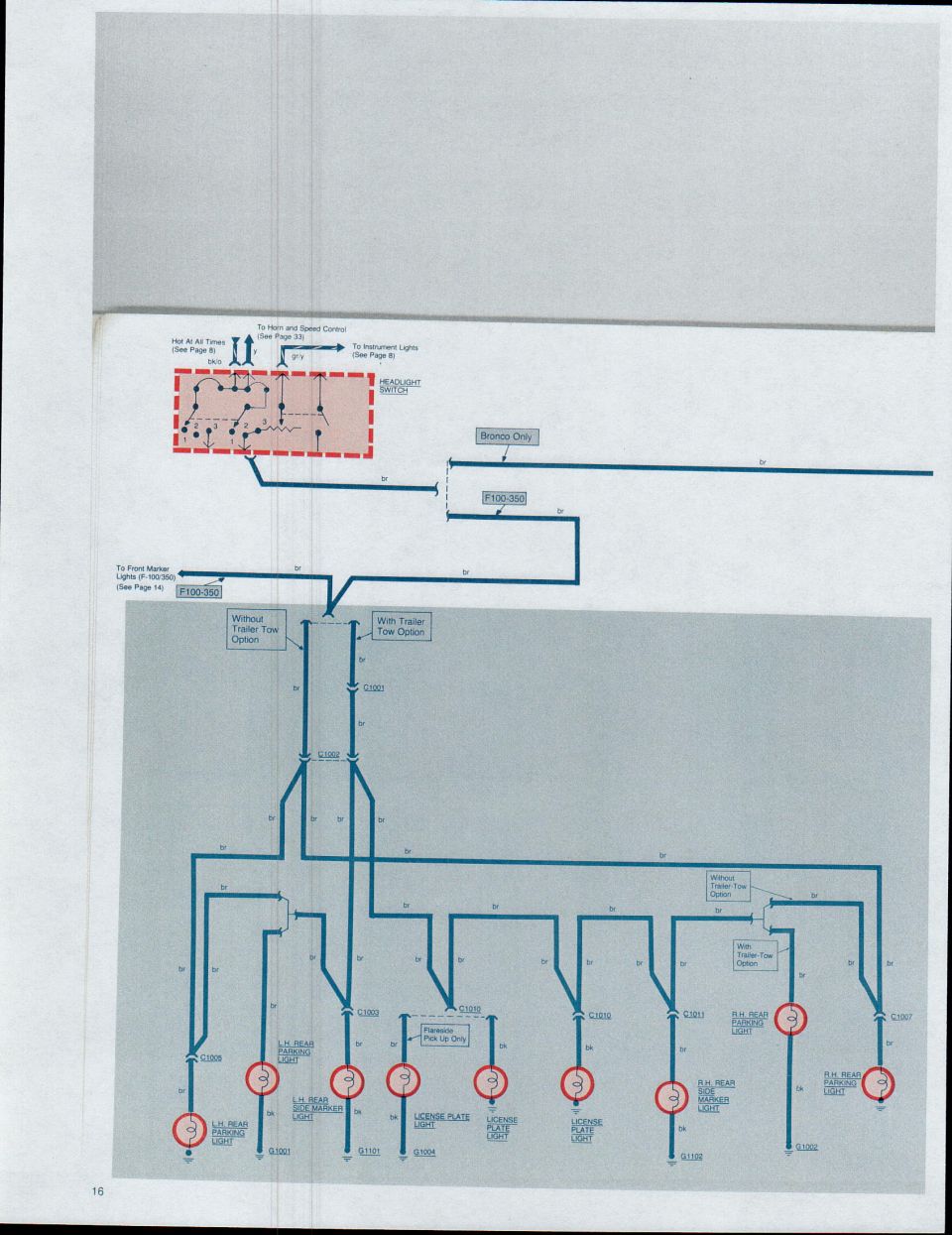

This page (page 16) of a Ford Bronco/F-100 through F-350 wiring diagram set covers the rear exterior lighting circuit fed from the headlight switch. It shows the headlight switch internals with a hot-at-all-times feed (bk/o wire), a yellow feed to the horn and speed control (page 33), and a gray/yellow feed to the instrument lights (page 8). From the switch, a brown (br) wire splits into 'Bronco Only' and 'F100-350' routing paths, with a branch to the front marker lights on F-100/350 trucks (see page 14). The circuit then branches for 'Without Trailer Tow Option' and 'With Trailer Tow Option' configurations, passing through connectors C1001, C1002, C1003, C1005, C1007, C1010, and C1011. Loads include the L.H. and R.H. rear parking lights, L.H. and R.H. rear side marker lights, and license plate lights (one noted 'Flareside Pick Up Only'). Feed wires are brown (br) and grounds are black (bk), terminating at ground points G1001, G1002, G1004, G1101, and G1102. A reader can trace the parking/marker/license lamp power distribution, identify connector and ground IDs, and see how trailer-tow and body-style options change the wiring.
