What systems does this power distribution diagram cover?

It covers the charging system and the ignition/starting system, showing component locations and wiring routing on the truck.

Which connectors are identified in the power distribution wiring?

The diagram labels connectors C205, C206, C321, C322, C323, and C1015, plus splice S303.

Where is the neutral start switch and when is it used?

The neutral start switch is shown in the cab area near the steering column and is noted as being for automatic transmission vehicles only.

Does the diagram show more than one battery?

Yes, it shows a main battery and an auxiliary battery, each with its own chassis ground, plus an accessory relay associated with the auxiliary battery.

What ignition components are located in the diagram?

The ignition coil, distributor, breakerless ignition module, ignition switch, and starter motor relay are all shown with their locations.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1979 Ford Bronco/ Photo supermotors.net/registry/media/1032624

1979 Ford Bronco F100-F350 Power Distribution Diagram - Charging & Ignition

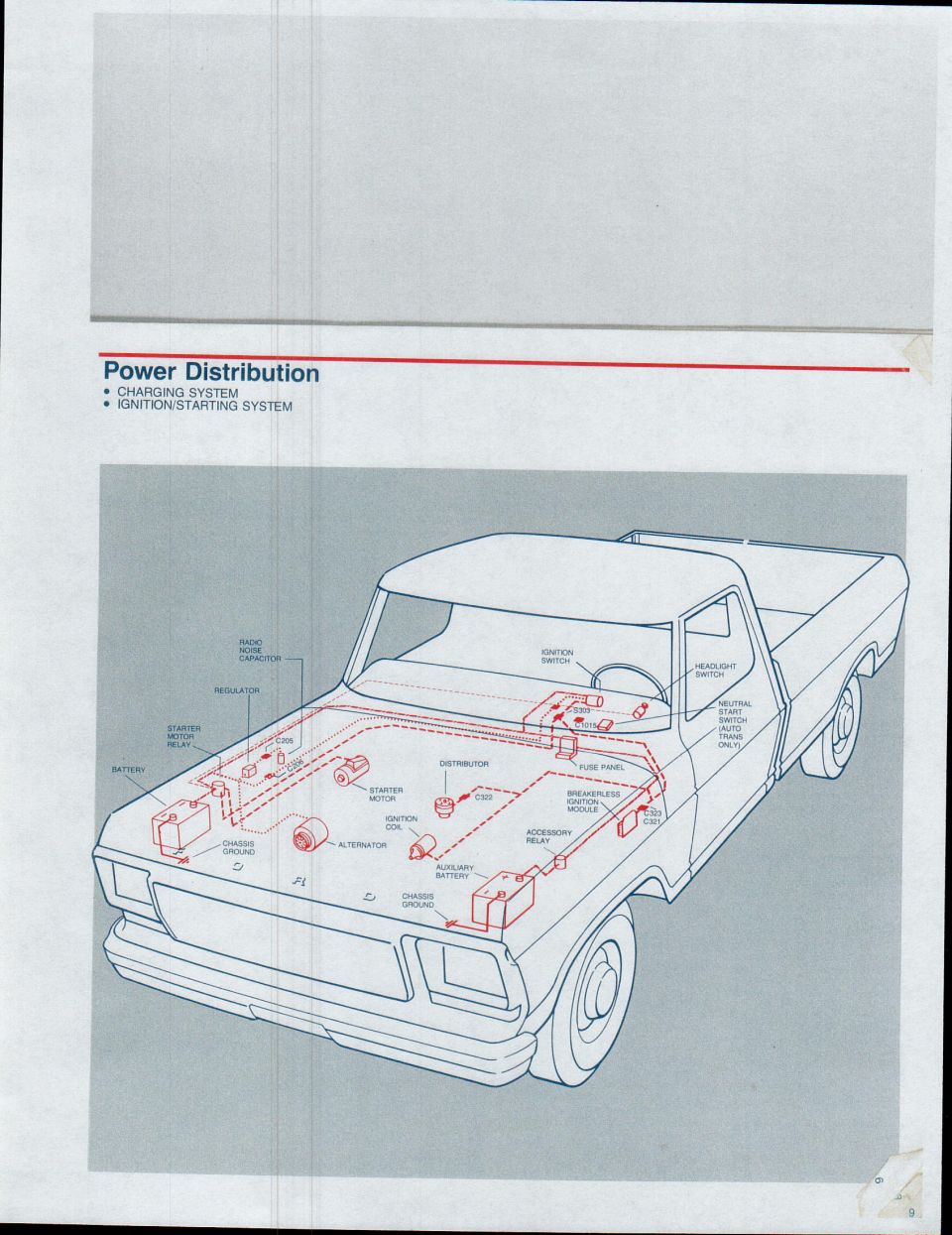

Power distribution diagram on truck cutaway showing charging and ignition/starting components

‹ ›

Power-distribution schematic over a pickup cutaway locating charging and ignition/starting-system electrical components.

AI caption August 2014 · Photo 5 of 48

This page, titled "Power Distribution," is from a Ford truck electrical reference set (uploaded as part of a 1979 Bronco/F100-F350 document series). It covers the charging system and the ignition/starting system. The page consists of a single large isometric cutaway illustration of a Ford pickup truck with the power distribution wiring routed in red overlay. Labeled components and their approximate physical locations include: the battery and auxiliary battery with their chassis grounds, starter motor relay, voltage regulator, radio noise capacitor, starter motor, alternator, ignition coil, distributor, breakerless ignition module, accessory relay, fuse panel, ignition switch, headlight switch, and the neutral start switch (automatic transmission only). Wiring connectors and splices are identified by number: C205, C206, C322, C323, C321, C1015, and splice S303. A reader can use this diagram to locate charging and ignition/starting system components and their harness connectors on the vehicle, and to understand how power is distributed from the batteries through the starter relay, regulator, ignition switch, and fuse panel. The page is numbered 9 in the source document.
