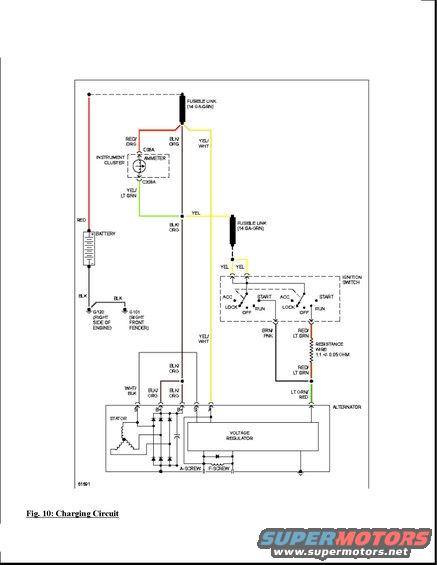

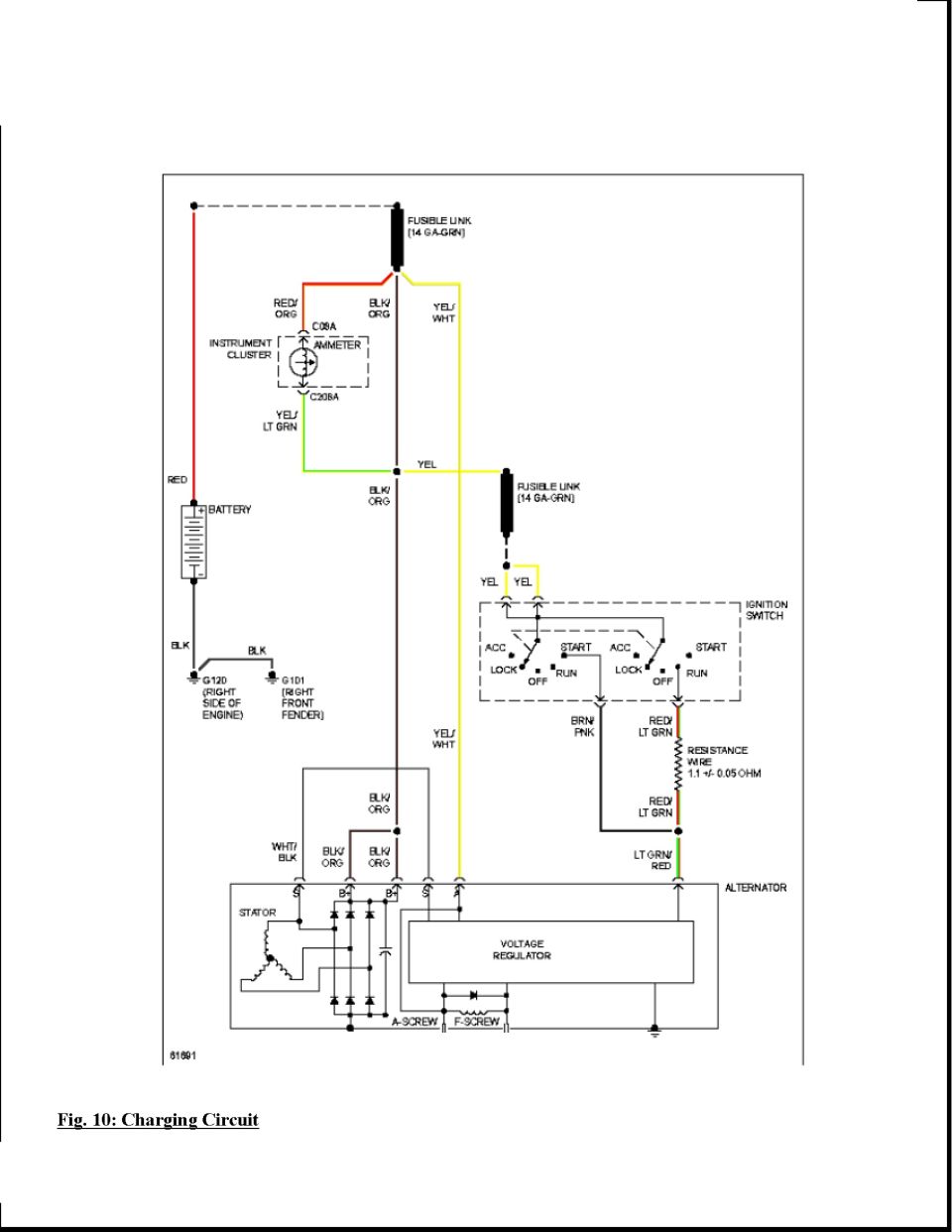

Charging circuit wiring diagram with alternator, voltage regulat…

Starting circuit wiring diagram with ignition switch, clutch interlock, neutral safety switch and starter rela Horn circuit wiring diagram with fuse 16, horn relay, horn switches and left and right horns Rear window defogger circuit wiring diagram with defrost control, fuse links and grid Charging circuit wiring diagram with alternator, voltage regulator, ammeter and fusible links CDI unit connector pinouts for '84-'85 and after '85 with wire colors and resistance test table 1996 Ford Bronco & F-Series Trailer Wiring Diagram - 7-Pin Connector Pinout 1994 & 1996 Ford F-Series/Bronco Trailer Camper Wiring Diagram - Tow Package Ford 4WABS Bypass for PSOM - ABS Module Connector C119 Wiring Diagram 1992-1996 Ford Bronco Tailgate Wiring Harness Routing Diagram Ford Bronco Master Dash Tailgate Window Switch Wiring - C274 Connector Pinout Ford Bronco Tailgate Window Wiring Diagram - Circuit, Connectors & Wire Colors 1992-96 Ford 4.9L Battery & Starter Cable Routing Diagram (Bronco/F-Series) 92wiring diagrams1980-1986 Ford Bronco More reference Service procedureCF433 Regulator/Rectifier Resistance Test Chart ('84-'85) - Terminal Ohm Values BrochureOff Road Enthusiast Cannibal feature opener with white Ford prerunner truck and roof lights Spec plateFord Bronco Ignition Timing Curve Table - RPM vs Vacuum Advance (12° Base) Exploded parts1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers SchematicSmallblock V8 Coolant Flow Diagram - Ford Engine Cooling Path Schematic Manual page1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents BlueprintTrim panel hole layout photos for positions A, B and C with tape measure readings from the body line Vacuum routing1985 Ford Bronco Vacuum Hose Routing Diagram - EGR, TAB/TAD Solenoids, Canister Torque specBronco drive shaft torque limits table and special tool T74P-4635-C Fuse chart'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables
