2010 Hyundai Genesis Coupe Engine Fuse Box Diagram (LH) - Fuses & Relays SD100-4

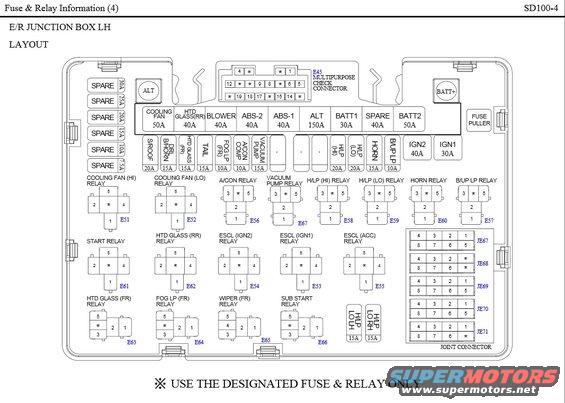

This document is page SD100-4 ("Fuse & Relay Information (4)") showing the layout of the E/R (Engine Room) Junction Box, LH side, uploaded as applying to a 2010 Hyundai Genesis Coupe 2.0L. The diagram identifies every fuse position with its amperage: high-current fuses including COOLING FAN 50A, HTD GLASS(RR) 40A, BLOWER 40A, ABS-2 40A, ABS-1 40A, ALT 150A, BATT1 30A, SPARE 40A, BATT2 50A, IGN2 40A and IGN1 30A; and smaller fuses such as S/ROOF 20A, DRL B/HORN 15A, HTD GLASS (FR) 15A, TAIL 15A, FOG LP (FR) 10A, A/CON COMP 10A, VACUUM PUMP 15A, H/LP (HI) 20A, H/LP (LO) 20A, HORN 15A, B/UP LP 10A, plus H/LP LO LH and RH 15A fuses. Six spare fuses (30A–7.5A) are provided along with a fuse puller. Seventeen relays are mapped with connector designations E51–E67, including cooling fan hi/lo, A/C, vacuum pump, headlamp hi/lo, horn, back-up lamp, start, heated glass, ESCL (IGN1/IGN2/ACC), fog lamp, wiper and sub start relays. An E45 multipurpose check connector and joint connectors JE67–JE71 with pin layouts are also shown. A footnote warns to use only the designated fuse and relay.
