2010 Hyundai Genesis Coupe Power Distribution Wiring Diagram SD110-1

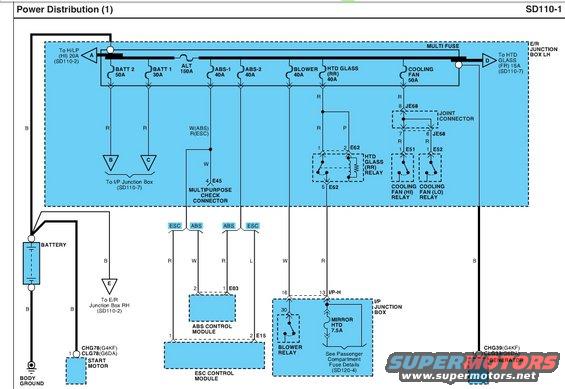

This is page SD110-1, "Power Distribution (1)," a factory-style wiring/power distribution diagram. It shows battery power routed through the E/R (engine room) Junction Box LH via a MULTI FUSE, which feeds the following fuses: BATT 2 50A, BATT 1 30A, ALT 150A, ABS-1 40A, ABS-2 40A, BLOWER 40A, HTD GLASS (RR) 40A, and COOLING FAN 50A. Circuit branches lead to the headlamp (HI) 20A circuit (SD110-2), heated glass (FR) 15A (SD110-7), the I/P junction box (SD110-7), the multipurpose check connector (connector E45), the heated glass rear relay (connector E62), the joint connector JE68 feeding cooling fan high and low relays (E51, E52), the ABS control module (E03), the ESC control module (E15), and the blower relay and MIRROR HTD 7.5A fuse inside the I/P junction box (with reference to passenger compartment fuse details on SD120-4). Battery connections to body ground, start motor (connectors CHG78/G4KF, CLG78/G6DA), and generator (CHG39/G4KF, CLG39/G6DA) are also shown, with wire colors (B, R, W, L, P) labeled throughout. Engine codes G4KF and G6DA distinguish 2.0L and 3.8L variants.
